86.55.75 Central Control Unit (CCU): Remove

Disconnect battery earth lead.
Open drivers glove box lid and remove fuse box cover.

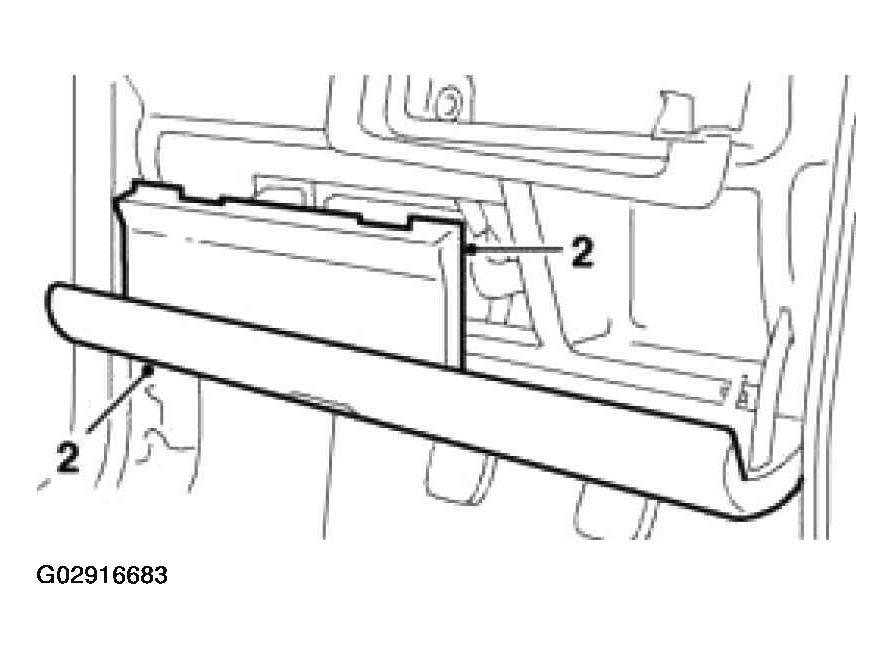

Fig 1: Opening Drivers Glove Box Lid
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove bolt securing fuse box mounting plate to steering column bracket.

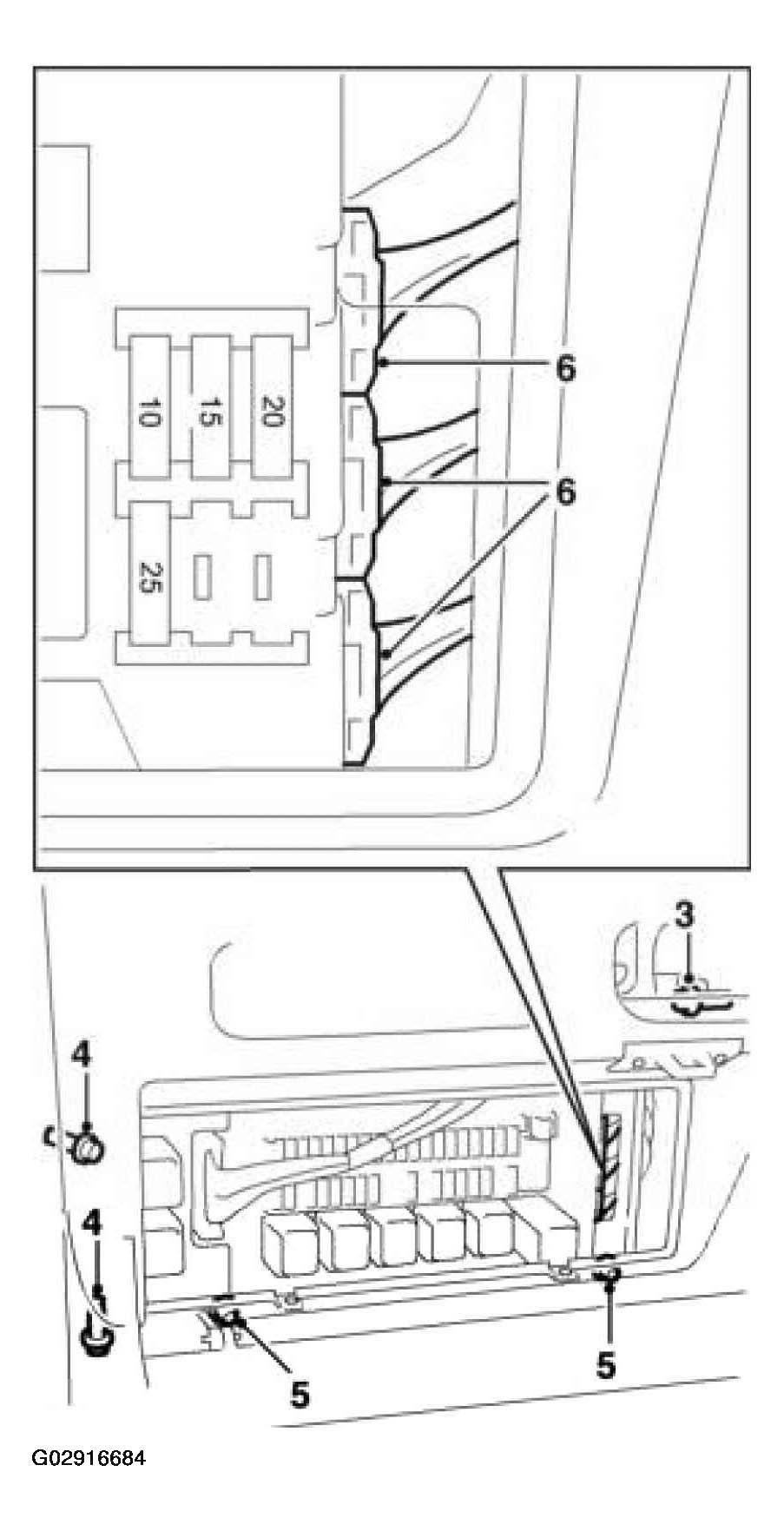

Fig 2: Disconnecting Multiplugs From CCU In Rear Of Fuse Box
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove 2 bolts securing mounting plate to body.
Remove 2 bolts securing fuse box to mounting plate.
Disconnect 3 multiplugs from CCU in rear of fuse box.
Maneuver fuse box to gain access to CCU.
Release retaining clips and remove CCU.

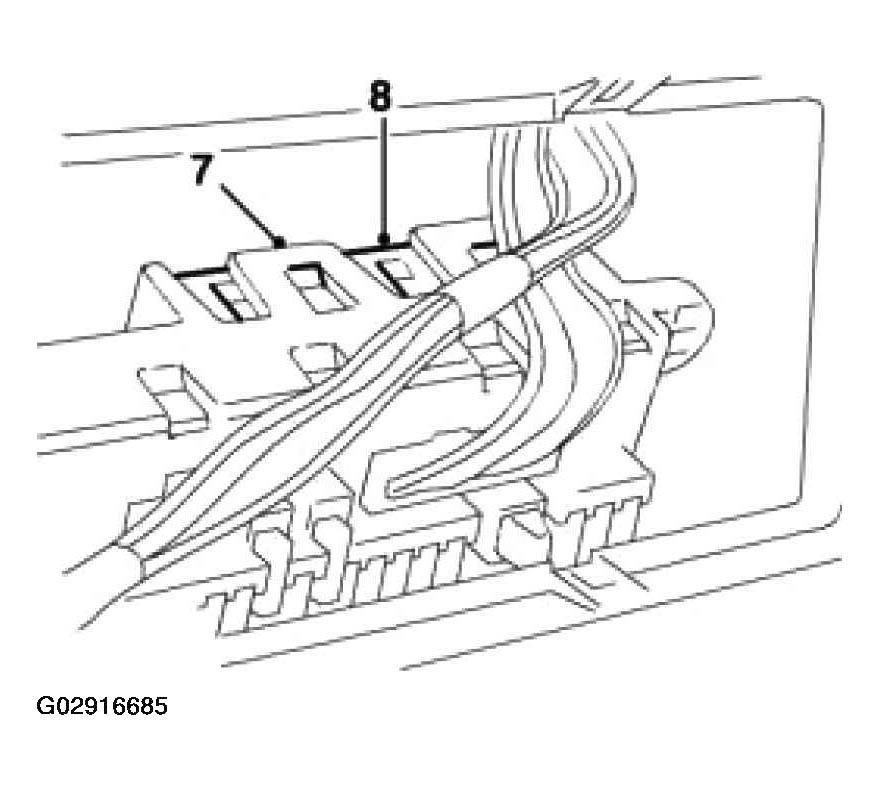

Fig 3: Removing CCU Retaining Clips
Courtesy of LAND ROVER NORTH AMERICA, INC.
