Home >> Land Rover >> 2006 >> LR3 (LA) V6-4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C0635R

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

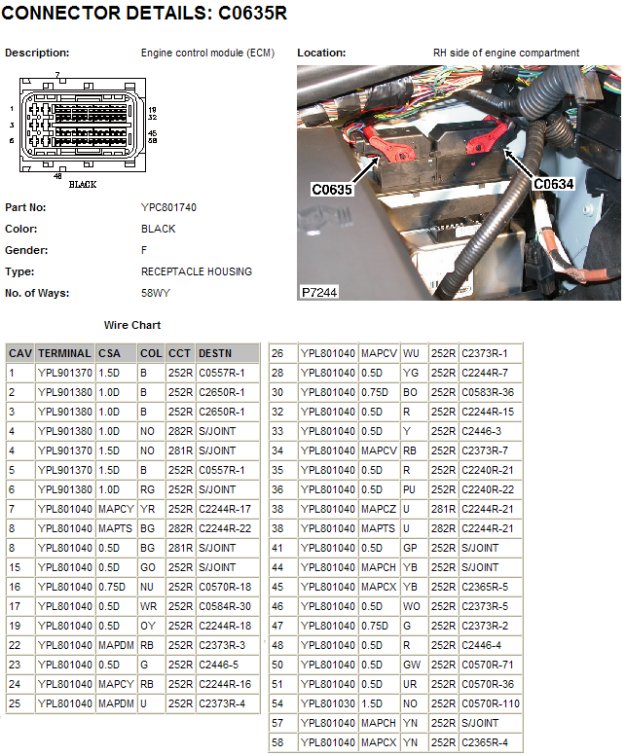

C0635R
