Engine Compartment
NOTE:

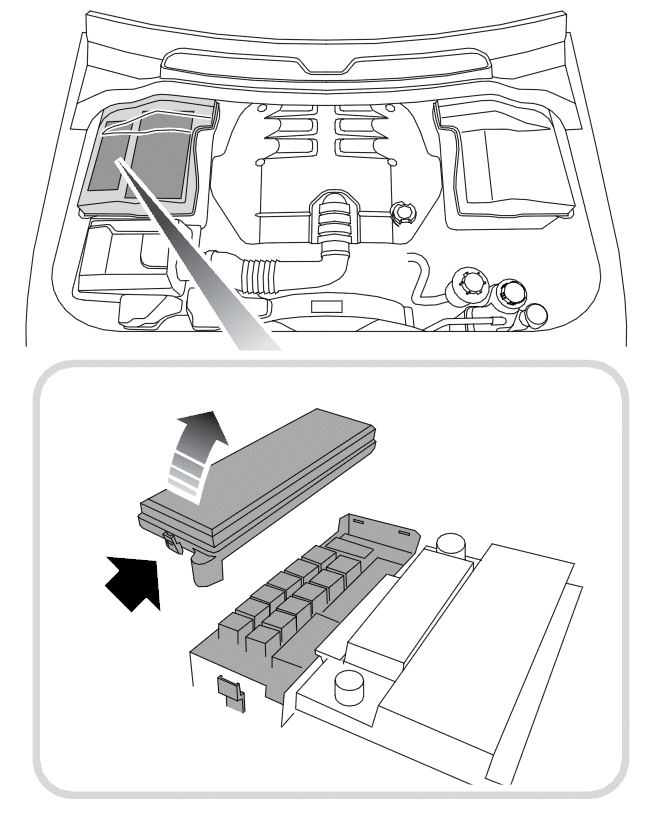

The engine compartment fuse box is located at the rear of the engine bay, beneath the under-hood cover.

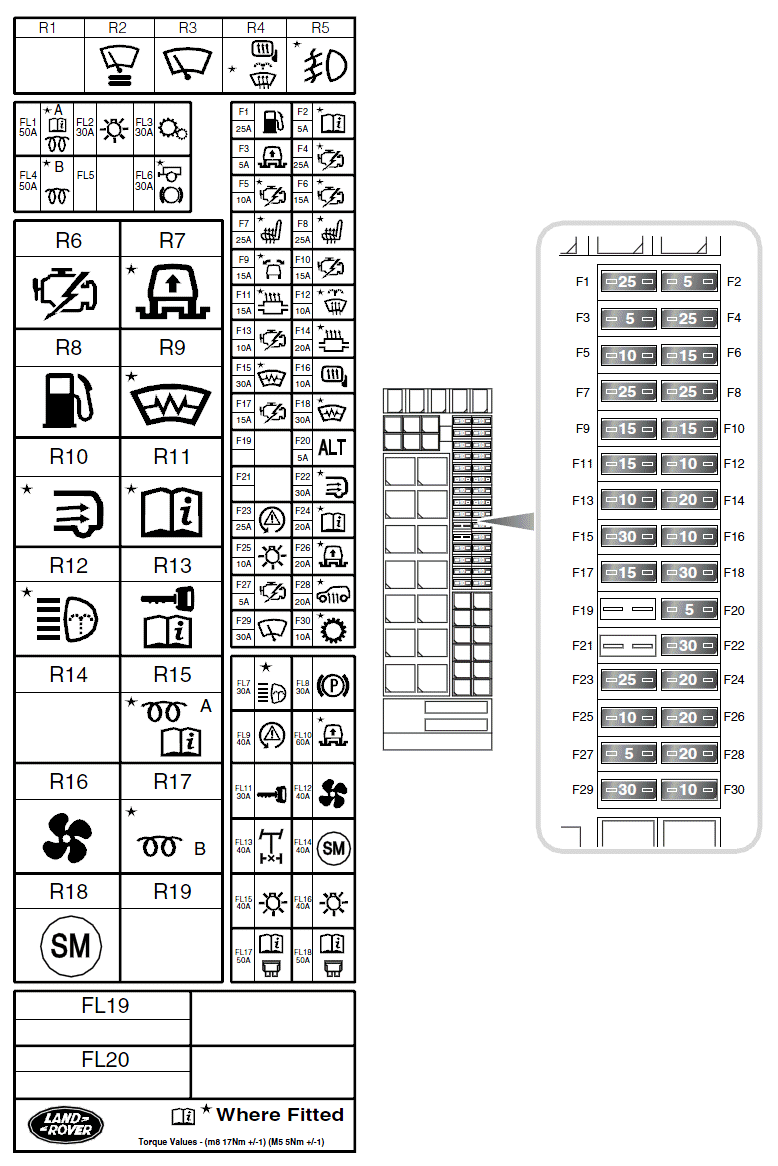

ENGINE COMPARTMENT FUSE BOX FUSE IDENTIFICATION LEGEND
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| 1 | 25A | Fuel Pump |
| 2 | 5A | Pump Leak Detection |
| 3 | 5A | Air Suspension ECU |
| 4 | - | - |
| 5 | 10A | Petrol EMS (Purge Valve, EGR, Inlet Manifold Tune Valve), E-box Fan |
| 6 | 15A | Petrol EMS (Coils) |
| 7 | 25A | HEVAC - Front Seat Heat |
| 8 | 25A | Rear Seat Heat |
| 9 | - | - |
| 10 | 15A | Petrol EMS (Throttle Motor, MAF), Cool Fan |
| 11 | 15A | Petrol EMS (Rear Oxygen Sensors) |
| 12 | 10A | Heated Washer Jets |
| 13 | 10A | Petrol EMS (ECU, VVTs And Fuel Pump Relay Control) |
| 14 | 20A | Petrol EMS (Front Oxygen Sensors) |
| 15 | 30A | Heated Windshield |
| 16 | 10A | Heated Door Mirrors |
| 17 | 15A | Petrol EMS (Injectors) |
| 18 | 30A | Heated Windshield |
| 19 | - | - |
| 20 | 5A | Generator |
| 21 | - | - |
| 22 | 30A | Rear Blower |
| 23 | 25A | Dynamic Stability Control System |
| 24 | 20A | Petrol - Brake Boost Pump |
| 25 | 10A | Lighting Switch |
| 26 | 20A | Air Suspension ECU |
| 27 | 5A | Engine Control Module (EMS) |
| 28 | - | - |
| 29 | 30A | Front Wipers |
| 30 | 10A | Auto Transmission ECU |
