Front Wheel Speed Sensor: Removal
WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.
- Remove the wheel and tire.

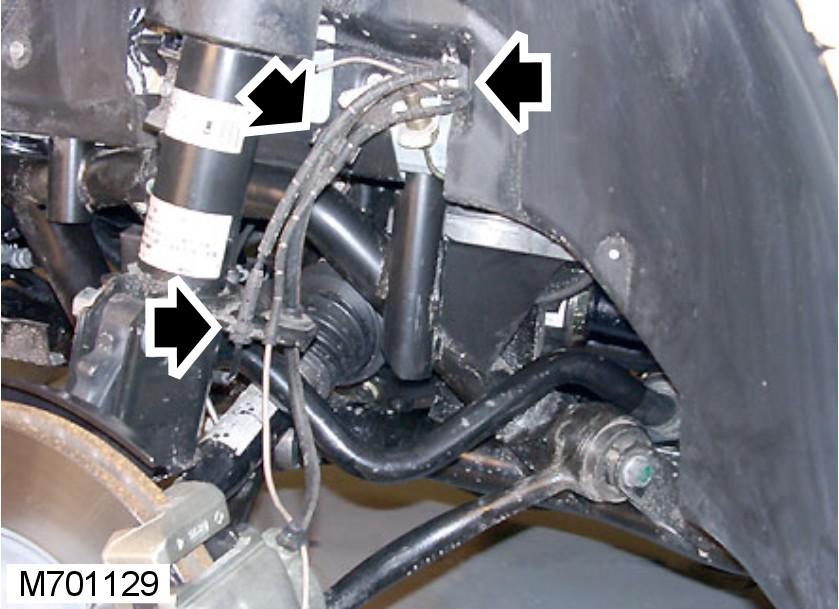

- Disconnect the wheel speed sensor electrical connector.
- Open the electrical connector housing.
- Release the electrical connector from the clip.
- Release the front wheel speed sensor wiring harness.

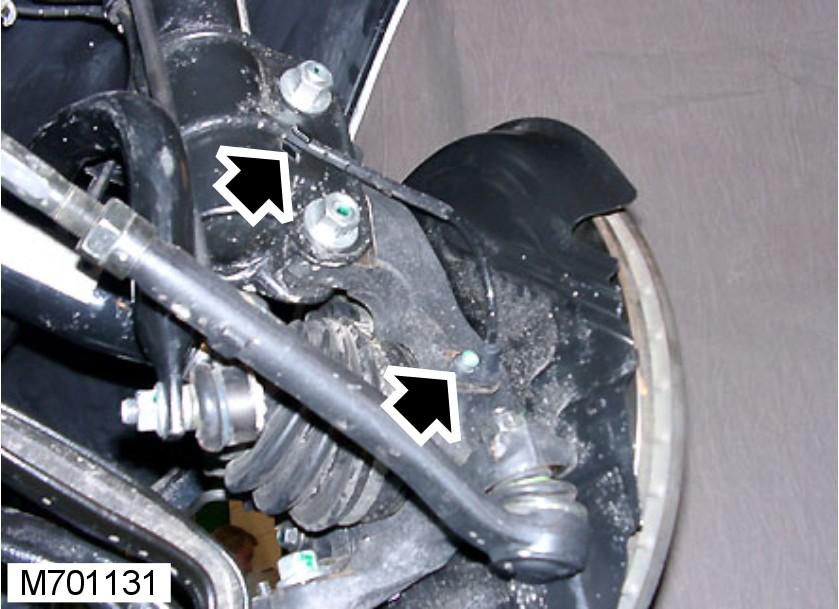

- Remove the front wheel speed sensor.
- Release the clip.
- Remove the bolt.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
