CONTROL DIAGRAM - AiNET

WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

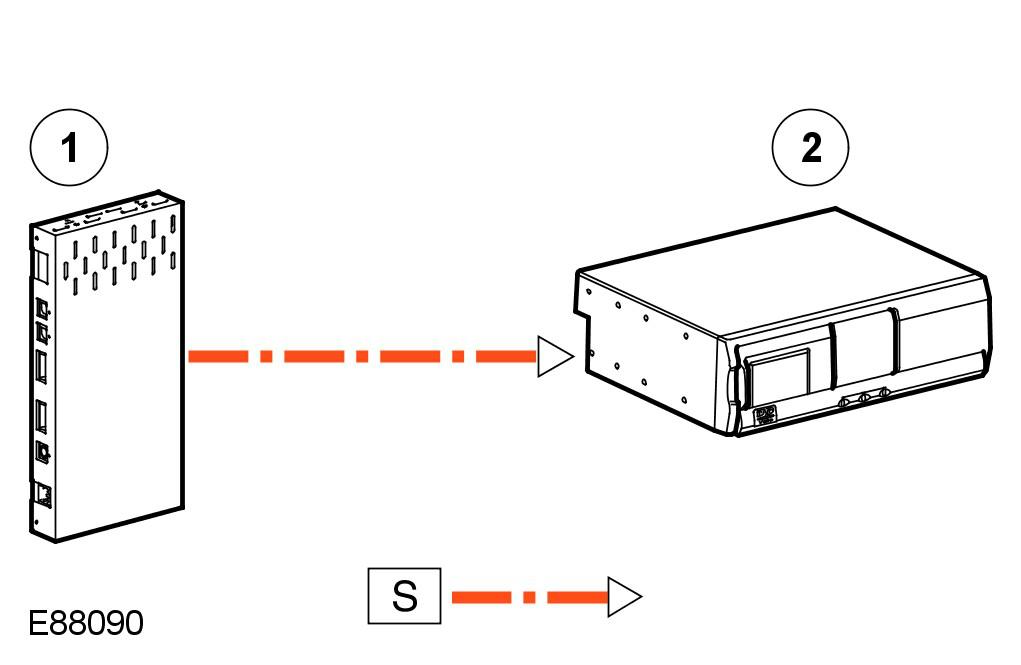

GJ0018614Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Rear seat entertainment module
2 DVD autochanger
NOTE: S  = AiNet
