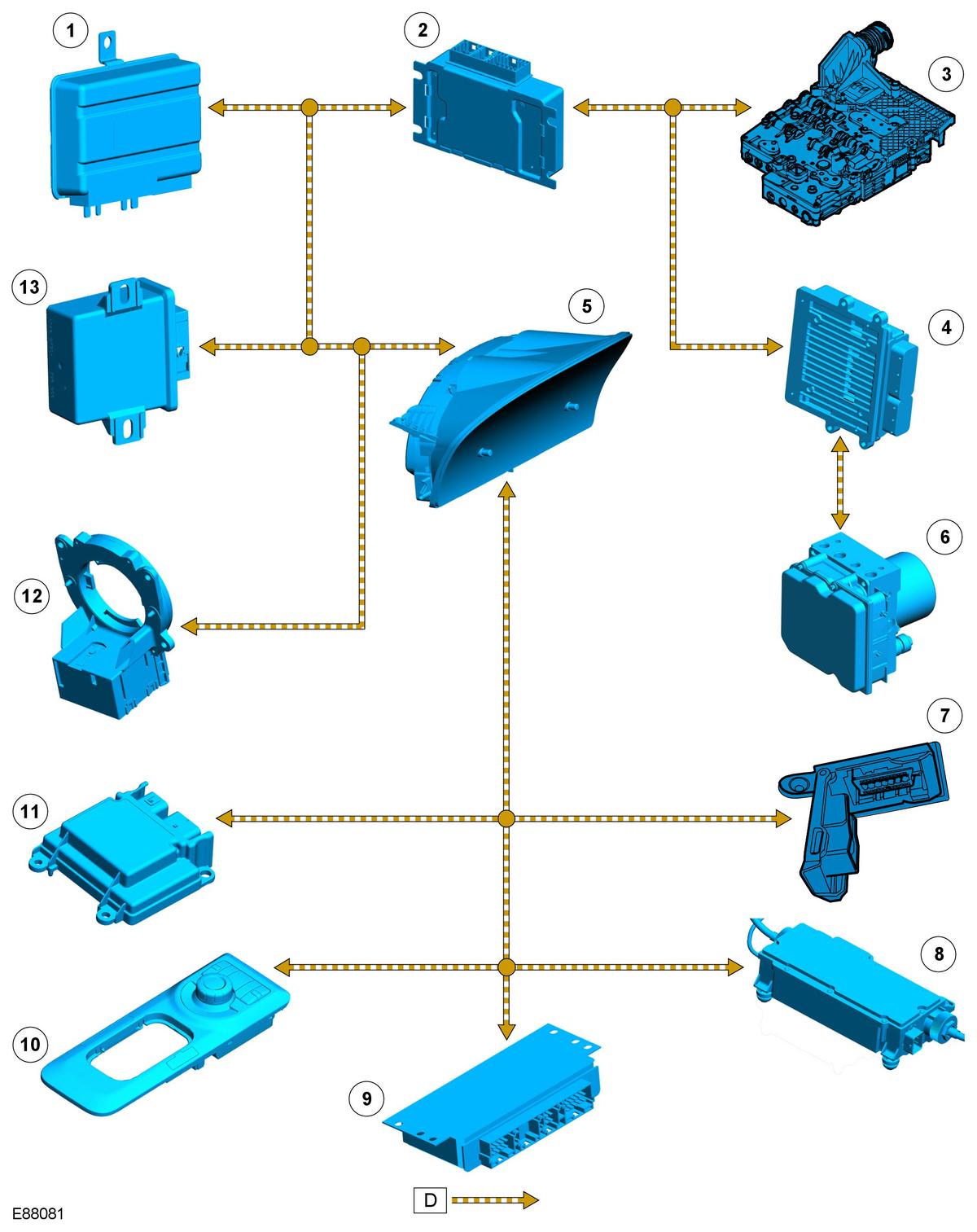

Control Diagram - High Speed Can Bus
WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Air suspension control module |
| 2 | Transfer box control module |
| 3 | Transmission Control Module (TCM) |
| 4 | Engine Control Module (ECM) |
| 5 | Instrument cluster |
| 6 | ABS module |
| 7 | Diagnostic socket |
| 8 | Parking brake control module |
| 9 | Electronic rear differential control module |
| 10 | Terrain Response switch |
| 11 | Restraints Control Module (RCM) |
| 12 | Steering angle sensor |
| 13 | Adaptive front lighting control module |
NOTE:
D
= High speed controller area network (CAN) bus
NOTE:
Terminating resistors for the high speed controller area network (CAN) bus are located in the anti-lock brake system (ABS) module and the parking brake control module.
