Control Diagram - Is Bus

WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

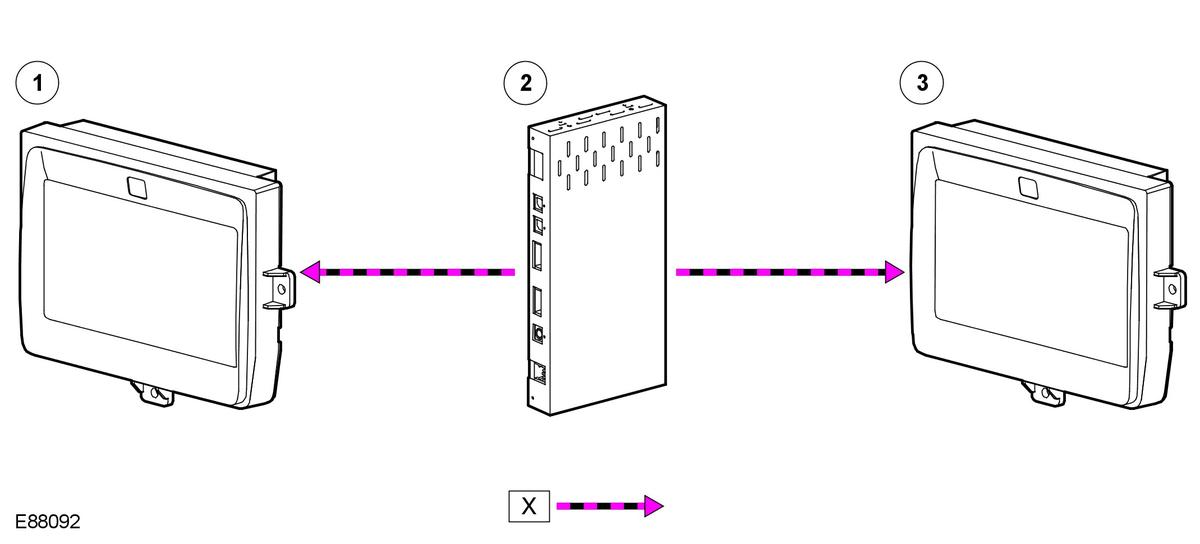

Item Number	Description
1	Left-Hand (LH) rear LCD screen
2	Rear seat entertainment module
3	Right-Hand (RH) rear LCD screen

NOTE: X = IS bus
