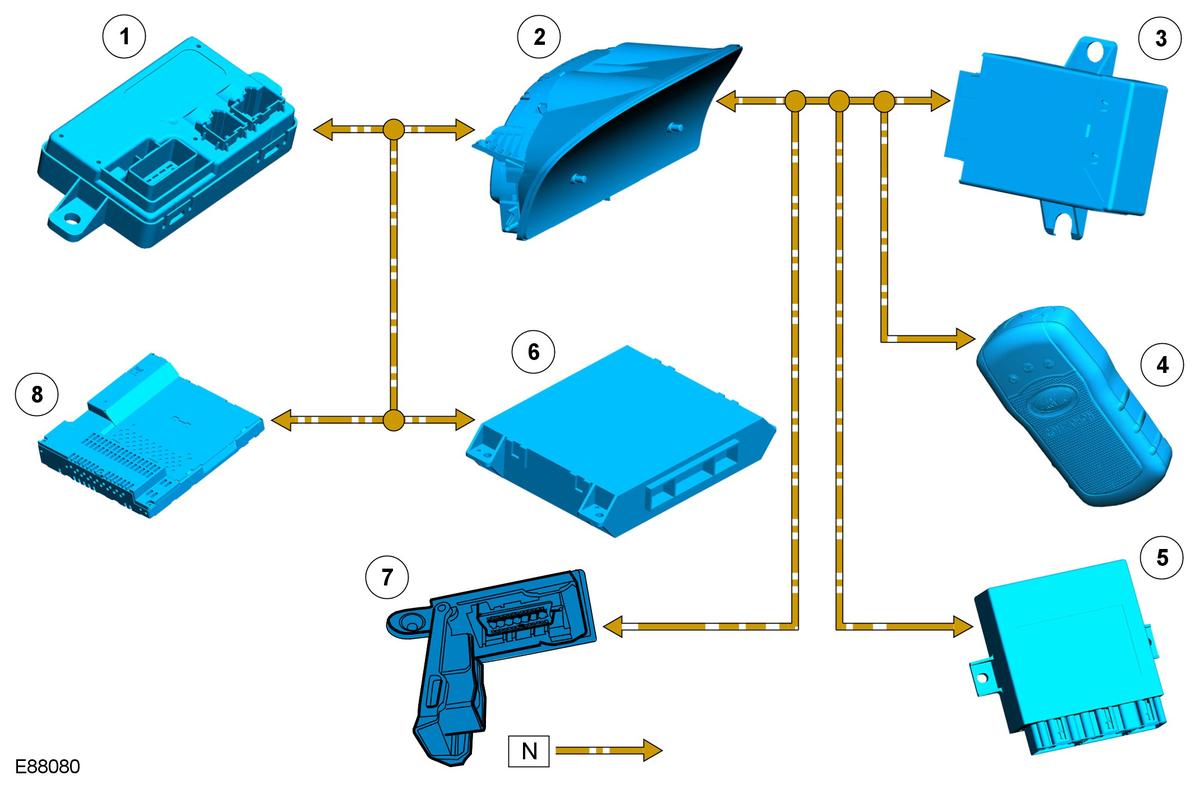

Control Diagram - Medium Speed Can Bus
WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Climatic seat control module |
| 2 | Instrument cluster |
| 3 | Immobilization control module |
| 4 | Venture cam |
| 5 | Tire pressure monitoring module |
| 6 | Rear climate control module |
| 7 | Diagnostic socket |
| 8 | Integrated head unit |
NOTE:
N
= Medium speed controller area network (CAN) bus
NOTE:
Terminating resistors for the medium speed controller area network (CAN) bus are located in the integrated head unit and the immobilization control module
