System Functions: Compass

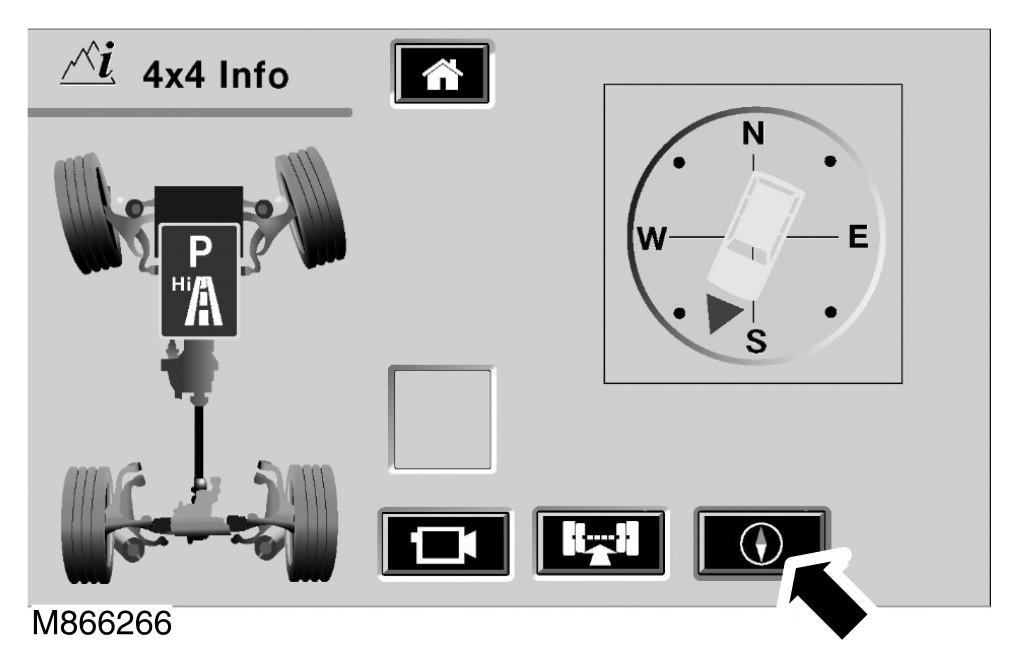

The compass information is obtained from the navigation computer. The compass view is the same compass view which is also displayed when the navigation system is in off-road navigation mode. The compass view replaces the wheel and body height view in the TSD. Compass view can be accessed by pressing the compass icon on the TSD. Pressing the chassis icon reverts the display back to the chassis view.
The compass view shows a plan view of the vehicle on a compass face. Depending on the compass display mode set in the navigation system, the compass can display a rotating vehicle view which moves to indicate the heading against the fixed compass points. If the heading up mode is selected in the navigation system, the vehicle view pointer will remain fixed vertically and the compass points will rotate to indicate the vehicle heading.
