SUNLOAD Sensor: Removal
WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Persons working on the supplemental restraint system (SRS) must be fully trained and have been issued with the safety guidelines.
WARNING:
Allow a period of 10 minutes to elapse after disconnecting the battery before undertaking any work on the SRS.
WARNING:
The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
WARNING:
The correct procedures must always be used when working on SRS components.
WARNING:
It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
WARNING:
Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.
WARNING:
Take extra care when handling SRS components.
- Make the air bag supplemental restraint system (SRS) safe. Refer to Standard Workshop Practices .
- Disconnect the battery ground cable. Refer to Specifications .
- Remove the instrument panel reinforcement. Refer to Instrument Panel Reinforcement .

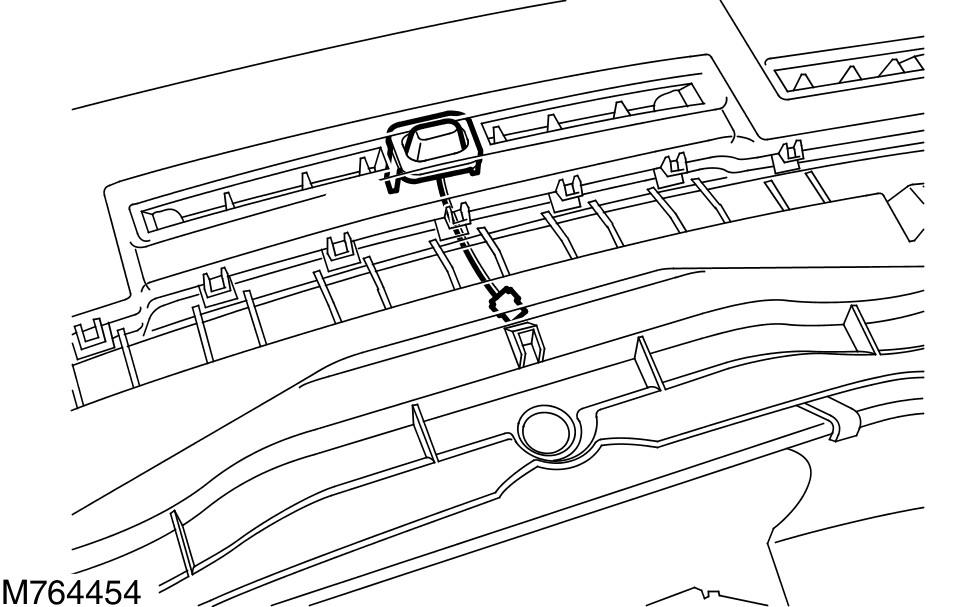

- Remove the sunload sensor.
- Release the 2 clips.
