Control Diagram

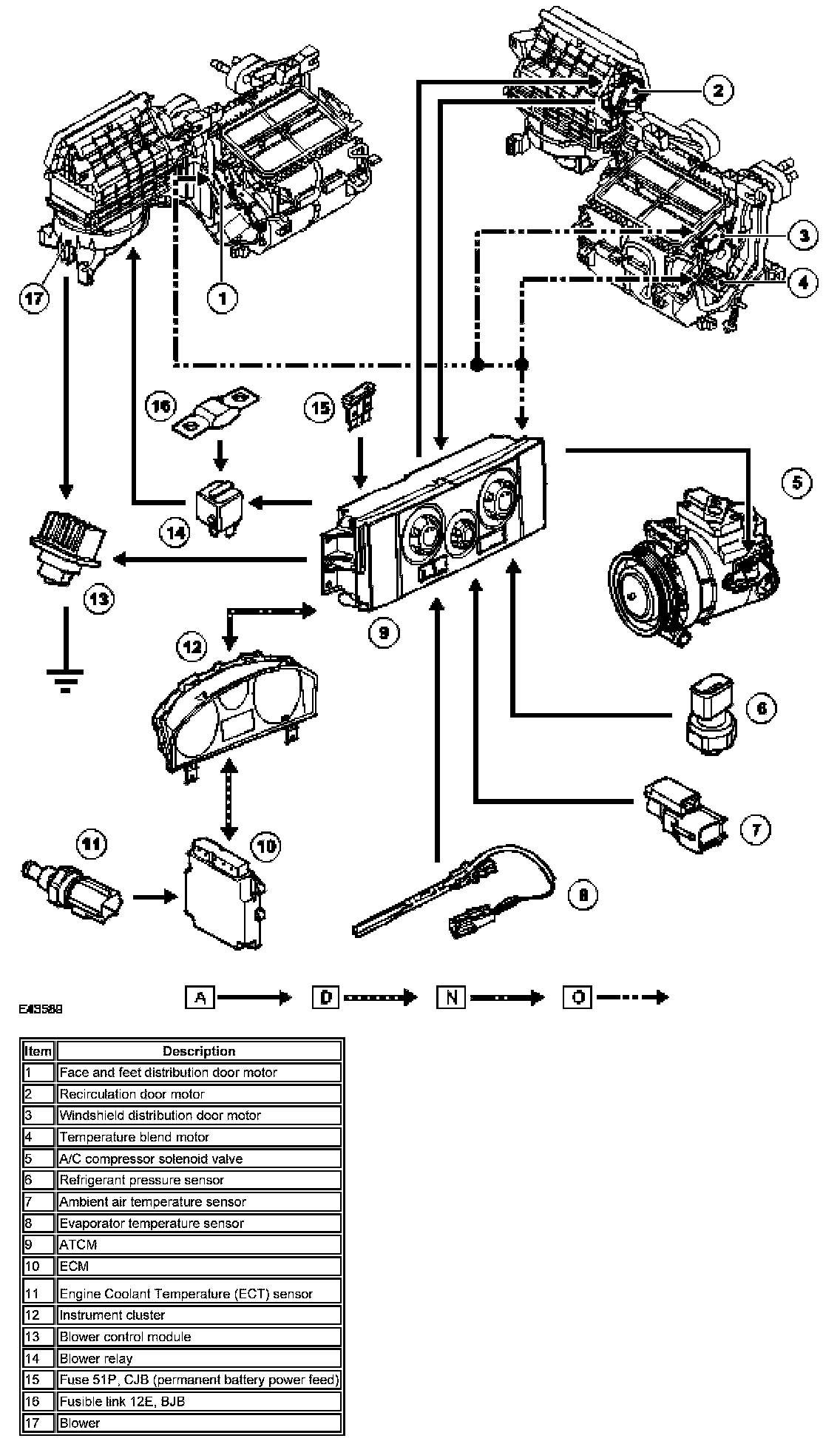

MANUAL SYSTEM CONTROL DIAGRAM

NOTE: A = Hardwired connections; D = High speed CAN bus; N = Medium speed CAN bus; O = LIN bus

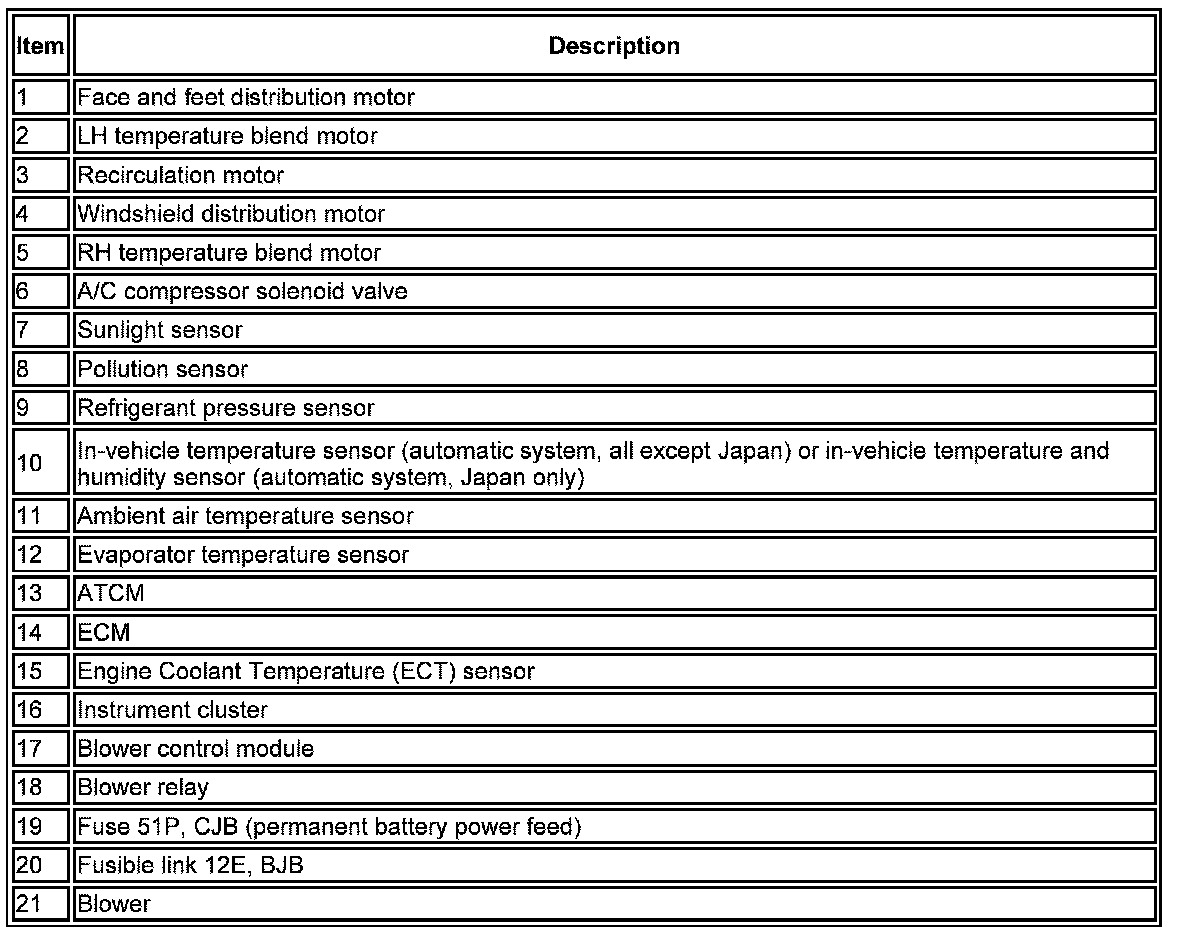

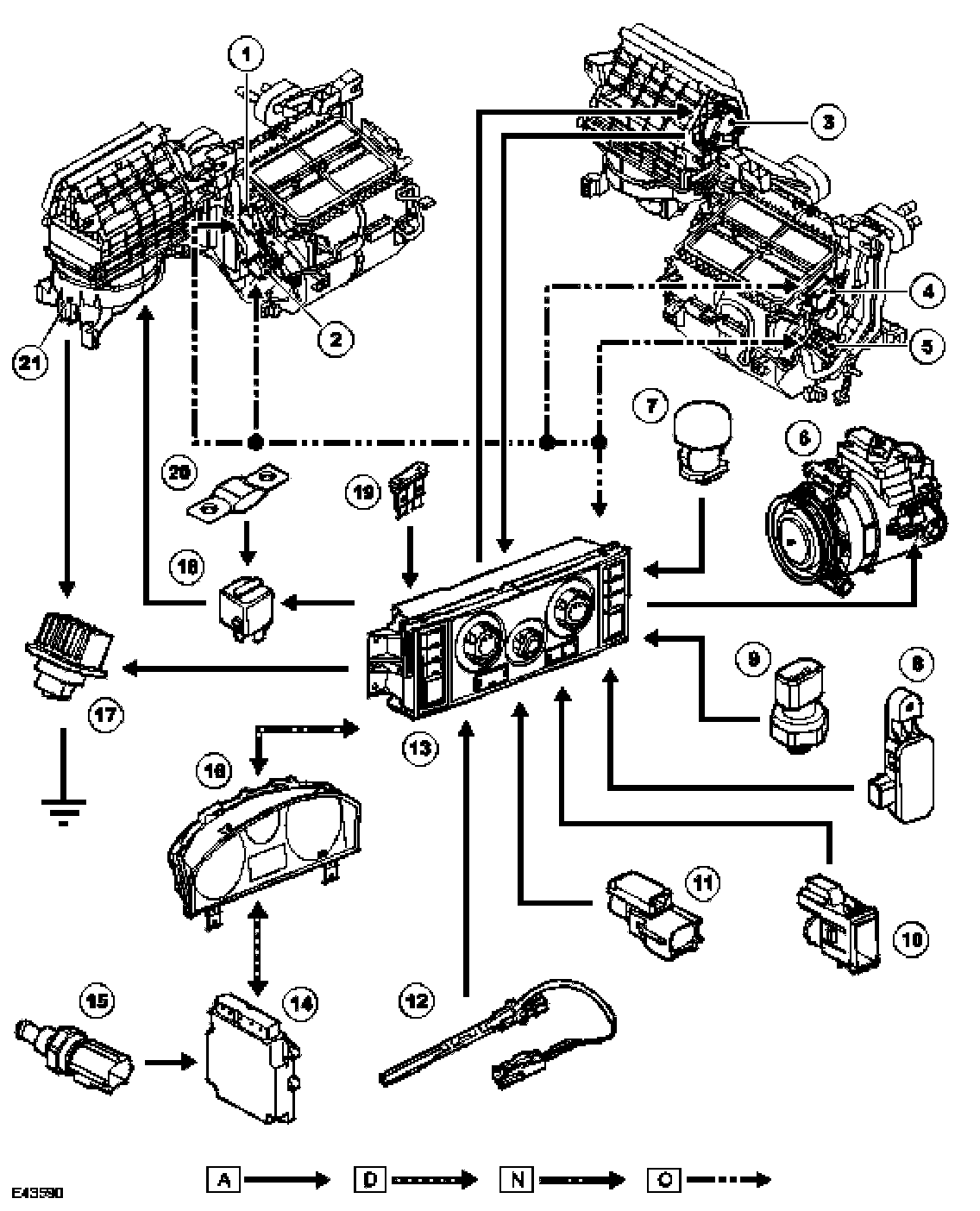

AUTOMATIC SYSTEM CONTROL DIAGRAM

NOTE: A = Hardwired connections; D = High speed CAN bus; N = Medium speed CAN bus; O = LIN bus
