4.4L V8 Control Diagrams [Denso]

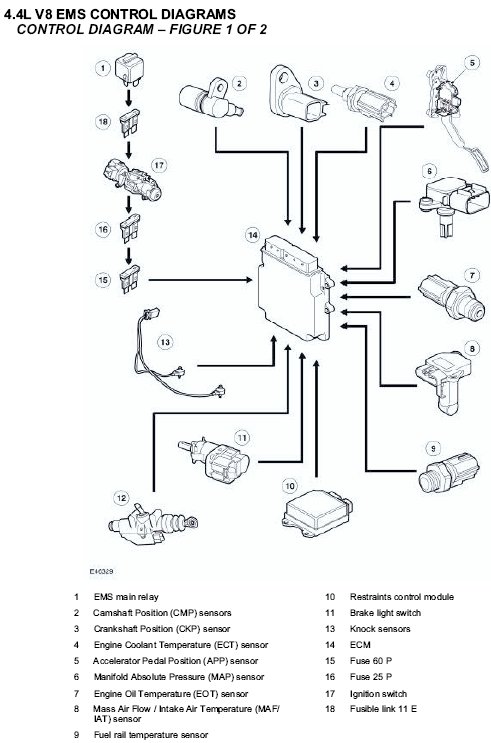

4.4L V8 EMS Control Diagrams (1 Of 2) [Denso]:

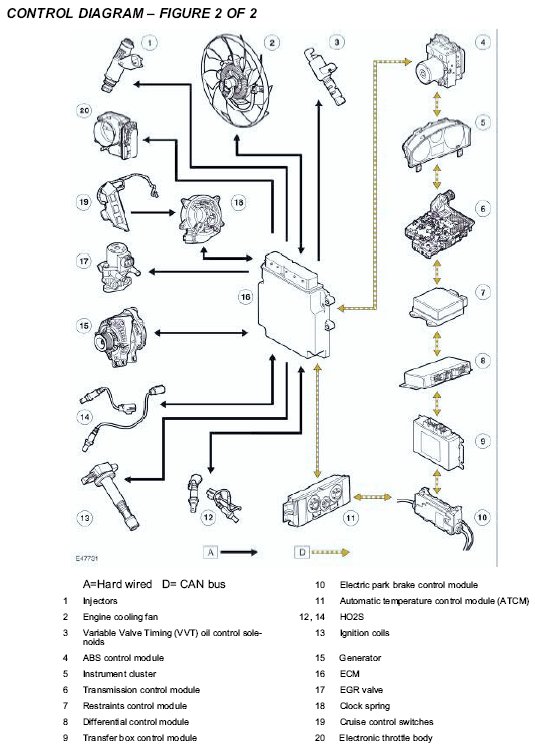

4.4L V8 EMS Control Diagrams (2 Of 2) [Denso]:
