Idle Speed Control

Idle Speed Control

Description

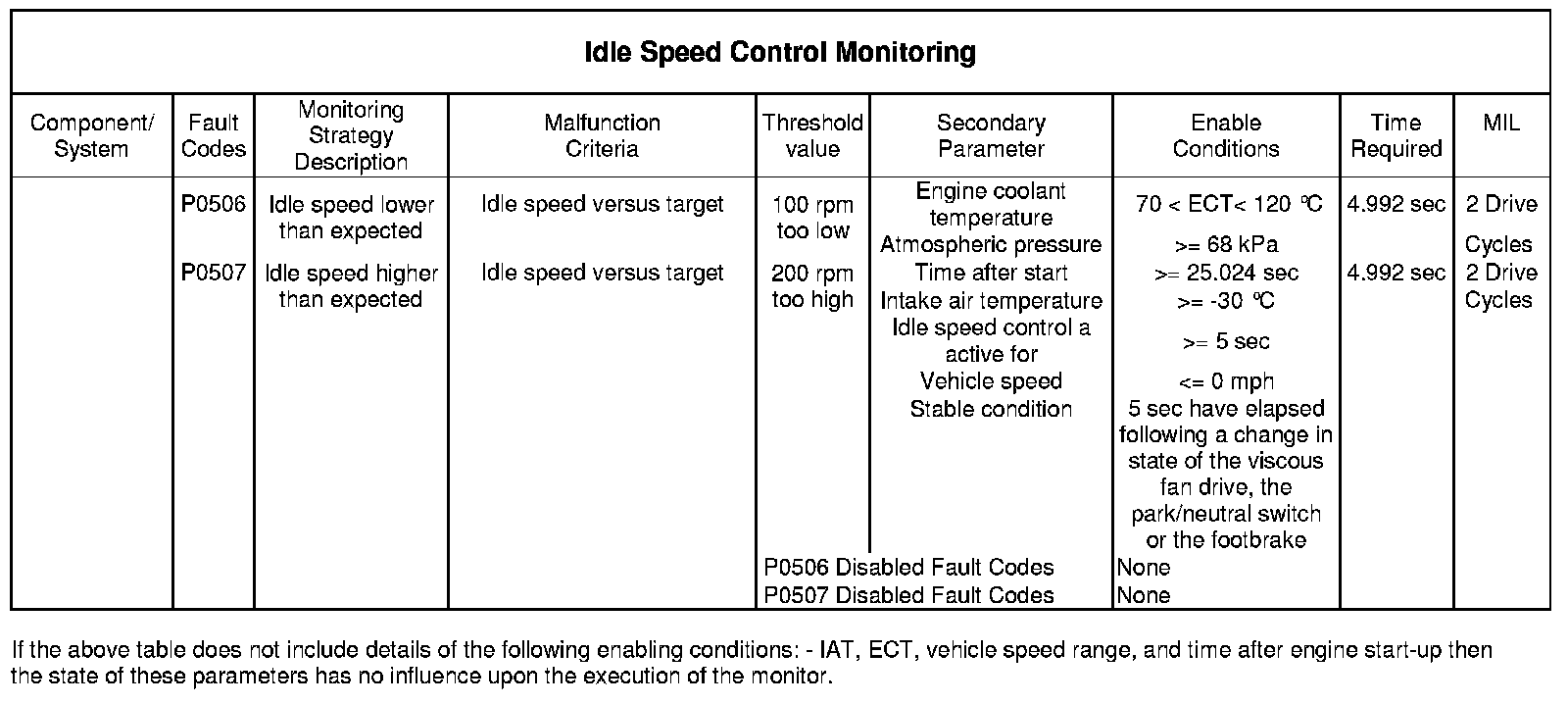

If all the entry conditions are satisfied, then the monitor will start execution.

If the actual engine speed more than 100 rpm lower than the target engine speed then a counter is started and once this exceeds the failure time limit a failure judgement is made for idle speed lower than expected.

If the actual engine speed is greater than 200 rpm higher than the target engine speed then a counter is started and once this exceeds the failure time limit a failure judgement is made for idle speed higher than expected.
