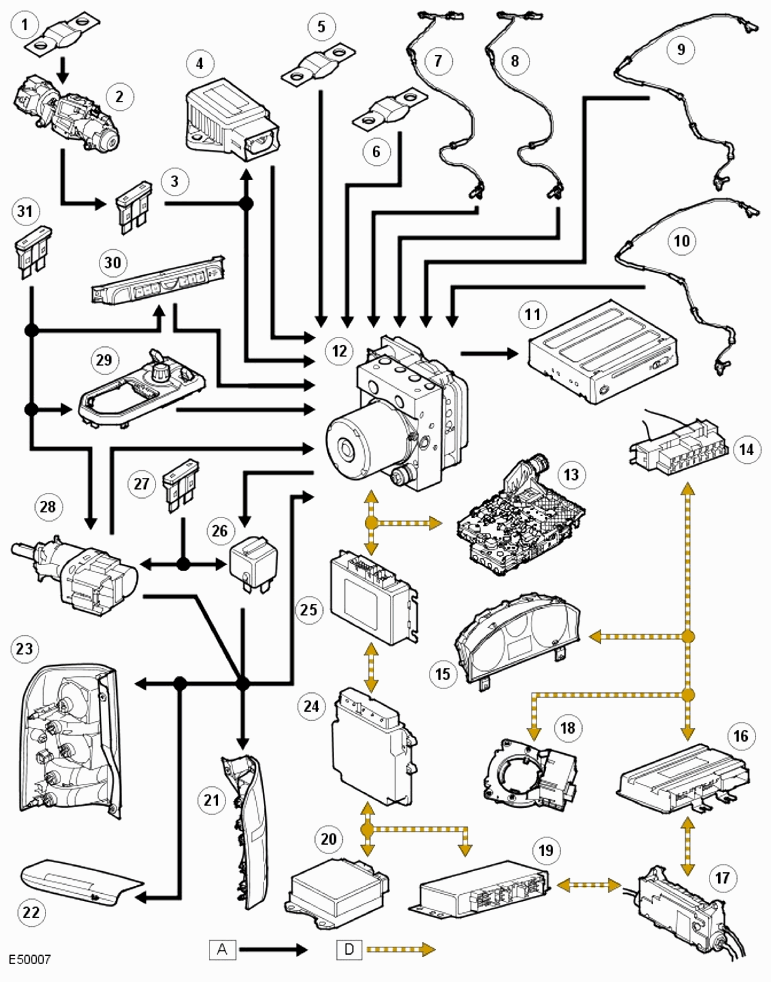

Anti-Lock Control Diagram
NOTE:
A = Hardwired connections; D = High speed CAN bus
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fusible link 11E, battery junction box (BOB) |
| 2 | - | Ignition switch |
| 3 | - | Fuse 37P, CJB |
| 4 | - | Yaw rate and lateral acceleration sensor |
| 5 | - | Fusible link 9E, BOB |
| 6 | - | Fusible link 23E, BOB |
| 7 | - | Front wheel speed sensor |
| 8 | - | Front wheel speed sensor |
| 9 | - | Rear wheel speed sensor |
| 10 | - | Rear wheel speed sensor |
| 11 | - | Navigation computer |
| 12 | - | ABS module |
| 13 | - | Transmission control module |
| 14 | - | Diagnostic socket |
| 15 | - | Instrument cluster |
| 16 | - | Air suspension control module |
| 17 | - | Parking brake module |
| 18 | - | Steering angle sensor |
| 19 | - | Rear differential control module |
| 20 | - | Restraints control module |
| 21 | - | Left stoplamp |
| 22 | - | Center stoplamp |
| 23 | - | Right stoplamp |
| 24 | - | ECM |
| 25 | - | Transfer box control module |
| 26 | - | HDC relay (non-serviceable, integrated into CJB) |
| 27 | - | Fuse 15P, CJB |
| 28 | - | Stoplamp switch |
| 29 | - | HDC switch |
| 30 | - | DSC switch |
| 31 | - | Fuse 66P, CJB |
