Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure (MAP) Sensor

Service Repair No - 18.30.56

Removal
1. Disconnect the battery ground cable.
2. Remove the engine cover.
3. Remove the plenum chamber.

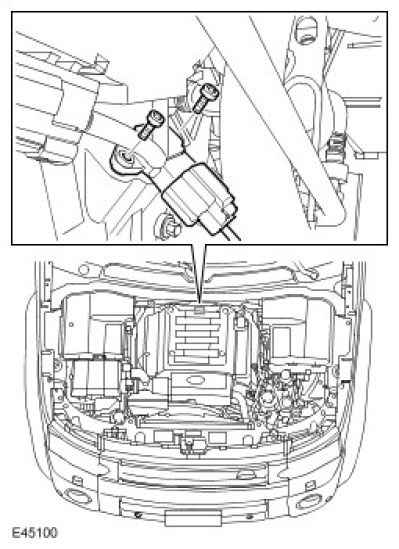

4. Remove the manifold absolute pressure (MAP) sensor.
^ Disconnect the electrical connector.
^ Remove the 2 Torx screws.





Installation
1. Install the MAP sensor.
^ Clean the component mating faces.
^ Tighten the Torx screws.

2. Install the plenum chamber.
3. Install the engine cover.
4. Connect the battery ground cable.
