Automatic Temperature Control (ATC) Module
WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

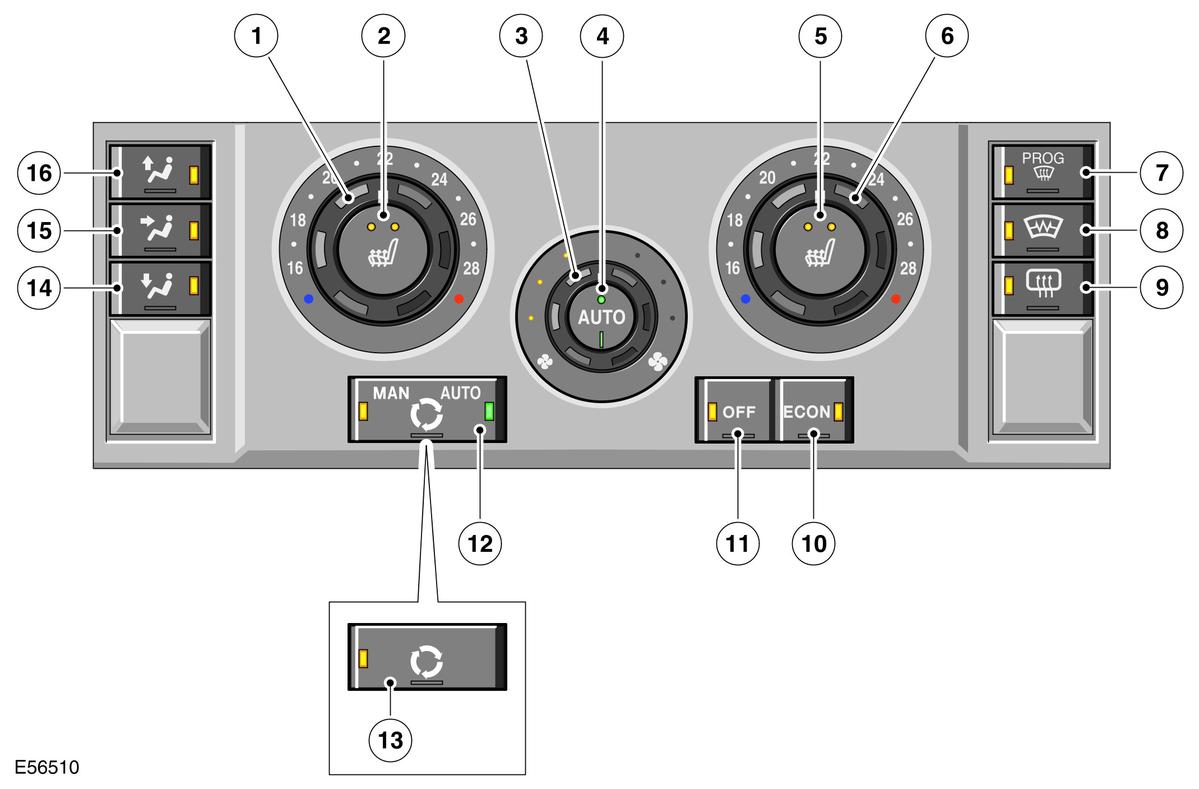

| Item Number | Description |
|---|---|
| 1 | temperature switch |
| 2 | front seat heater switch |
| 3 | Blower switch |
| 4 | Automatic mode switch |
| 5 | front seat heater switch |
| 6 | temperature switch |
| 7 | Programmed defrost switch |
| 8 | Windshield heater switch |
| 9 | Rear window heater switch |
| 10 | Economy switch |
| 11 | System off switch |
| 12 | Recirculation switch (models with pollution sensing) |
| 13 | Recirculation switch (models without pollution sensing) |
| 14 | Distribution switch - feet |
| 15 | Distribution switch - face |
| 16 | Distribution switch - windshield |
The automatic temperature control (ATC) module is installed in the center console. The automatic temperature control (ATC) module processes inputs from the control panel switches, system sensors and the medium speed controller area network (CAN) bus, then outputs the appropriate control signals to the air conditioning system and the heating and ventilation system. In addition to controlling the air conditioning system the automatic temperature control (ATC) module also controls the following:
- The front seat heaters
- The rear window heater
- The windshield heater
- The windshield washer jets
- The exterior mirror heaters.
