Climate Control Assembly: Removal
WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the floor console. Refer to Floor Console .

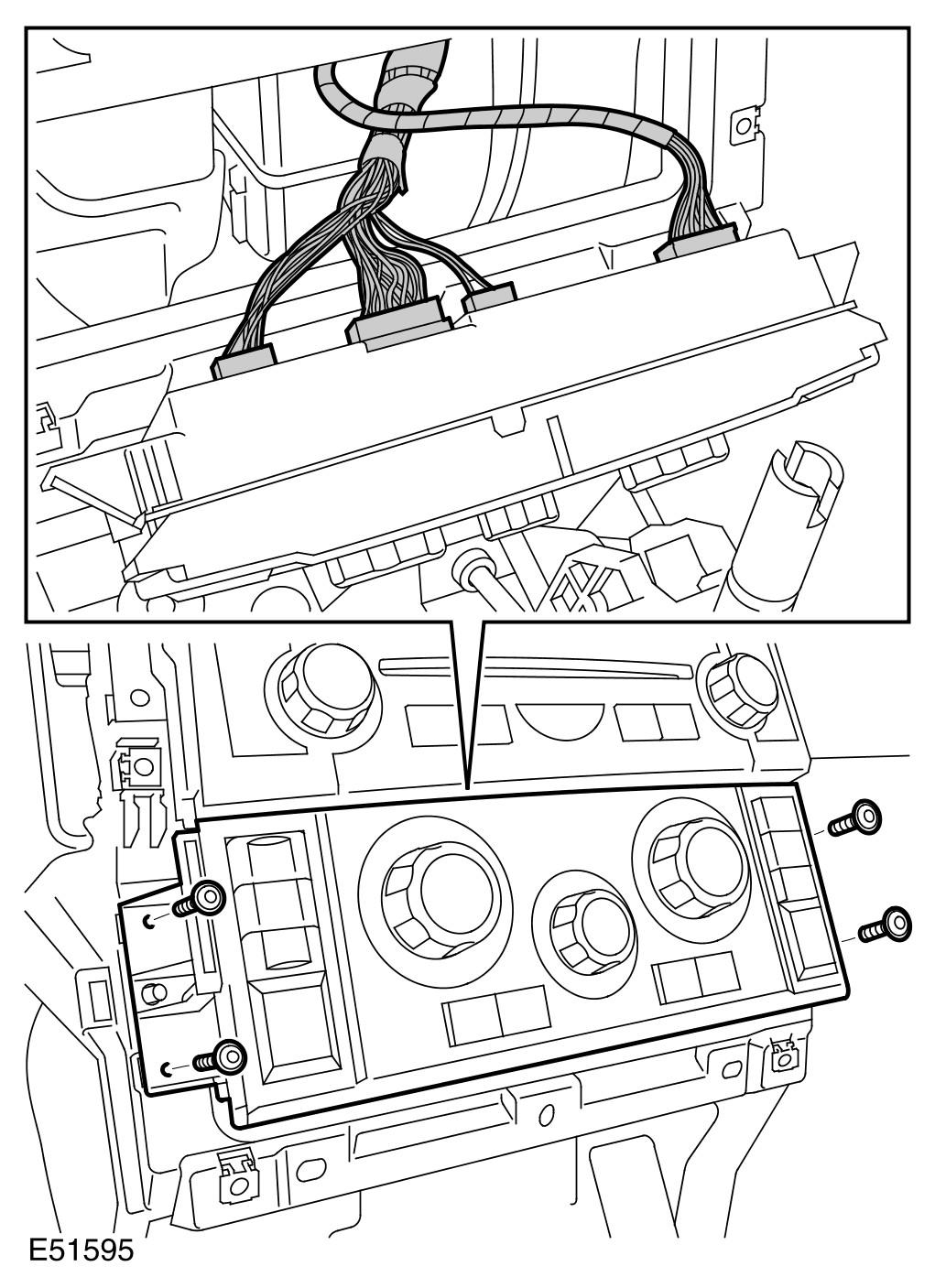

- Remove the climate control assembly.
- Remove the 4 Torx screws.
- Disconnect the 4 electrical connectors.
