HDC Switch

WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

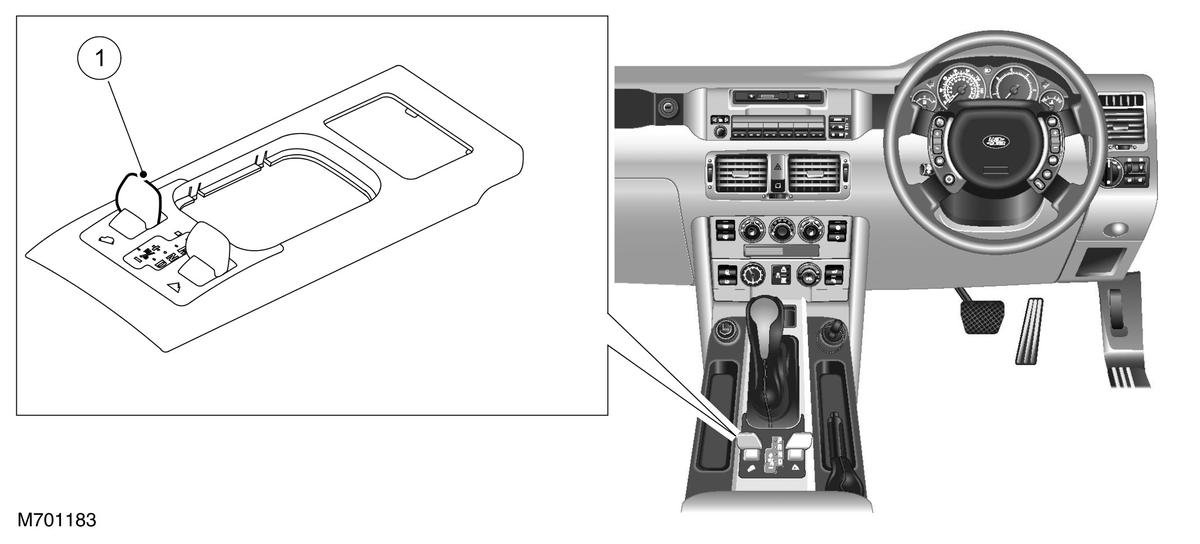

Item Number	Description
1	HDC switch

The HDC switch controls the selection of the HDC function.

The HDC switch is a non-latching switch installed on the center console, to the rear of the gear shift lever. Pressing and releasing the HDC switch momentarily connects an ignition power feed to the anti-lock brake system (ABS) module. With the first press and release of the HDC switch, the anti-lock brake system (ABS) module enables operation of the HDC function. When the HDC switch is pressed and released again, the anti-lock brake system (ABS) module disables operation of the HDC function.

To guard against incorrect operation or a broken switch, if the switch is pressed for more than 10 seconds no change of state occurs. If the input from the HDC switch is held high for more than one minute, a failure is stored in the anti-lock brake system (ABS) module.
