Can Bus Control Diagram - Diesel Only
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

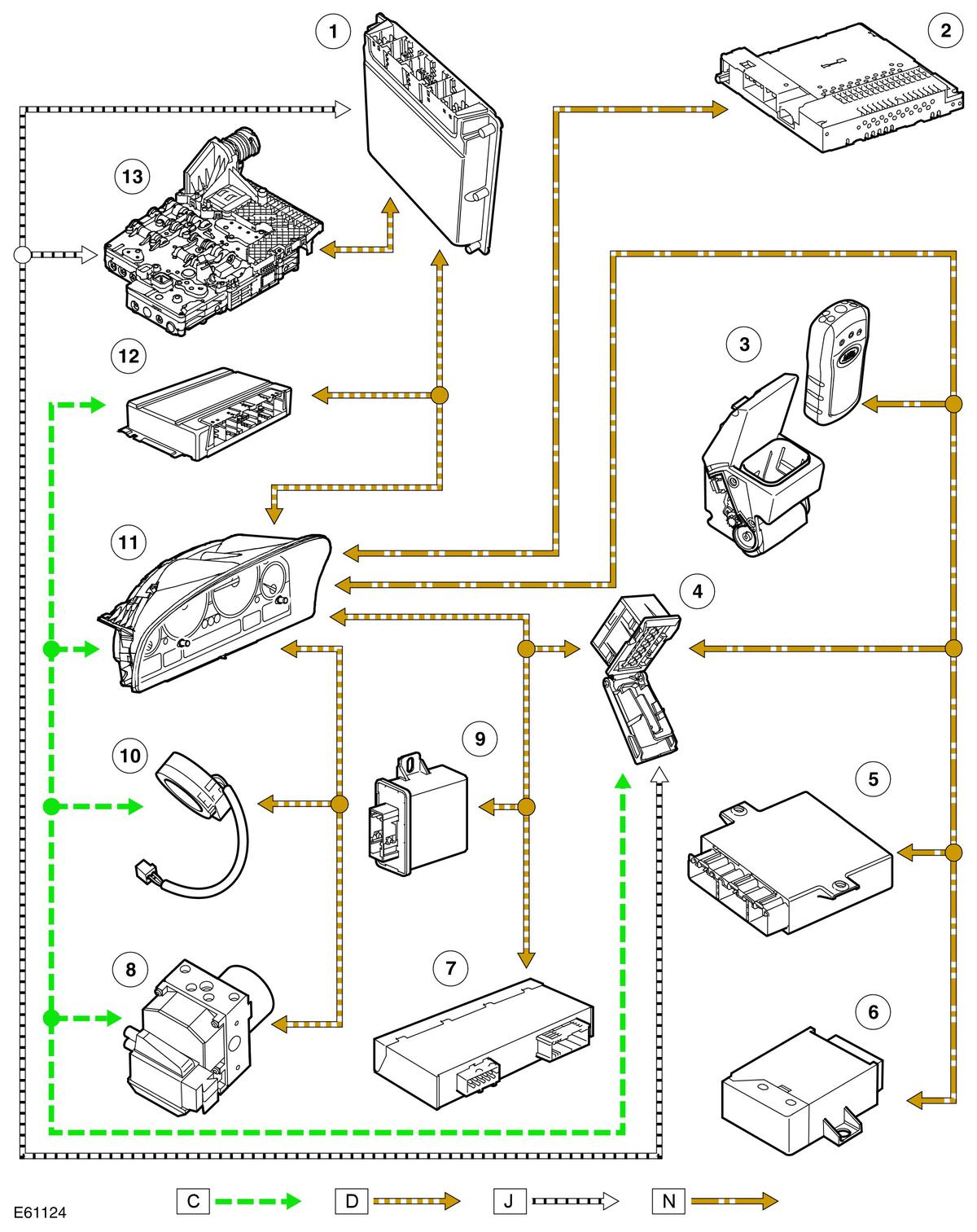

C=Diagnostic DS2 bus, D=High speed controller area network (CAN) J=Diagnostic 'K' line, N=Medium speed controller area network (CAN).
| Item Number | Description |
|---|---|
| 1 | engine control module (ECM) |
| 2 | Integrated Head Unit (IHU) |
| 3 | Venture cam |
| 4 | Diagnostic socket |
| 5 | Tire pressure monitoring module |
| 6 | Immobilization control module |
| 7 | Air suspension control module |
| 8 | anti-lock brake system (ABS) control module |
| 9 | Adaptive front lighting control module |
| 10 | Steering angle sensor |
| 11 | Instrument cluster |
| 12 | Transfer box control module |
