Communication Data Buses Control Diagram

WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

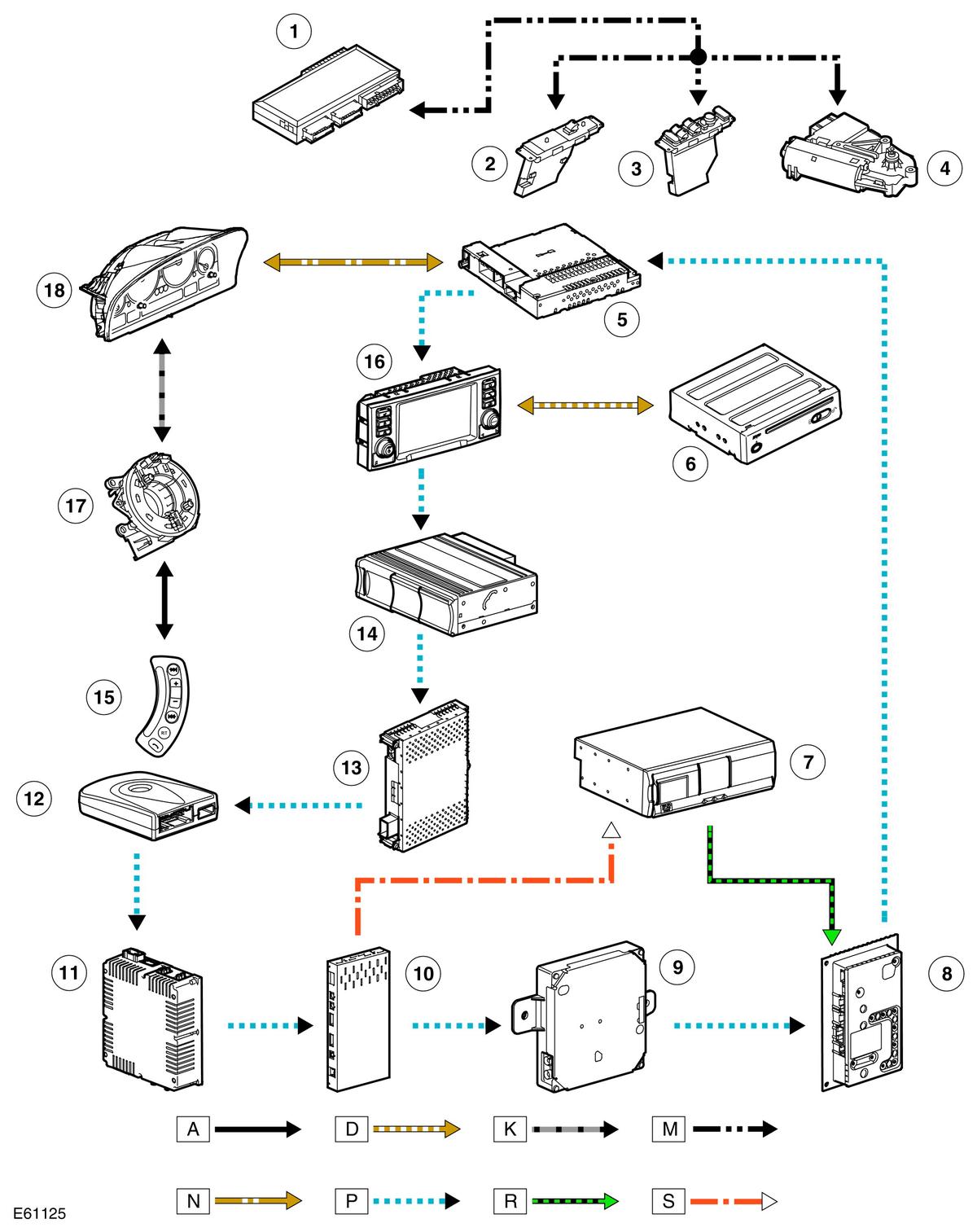

NOTE: A= Hardwired, B= K-Bus, D= High speed controller area network (CAN), N= Medium speed controller area network (CAN), K= I-Bus, M= P-Bus, P= Fiber optic MOST Bus, R= SPDIF Bus, S= AiNet.
GJ0017885Courtesy of JAGUAR CARS, INC.
Item Number Description
1 generic electronic module (GEM)
2 Front passenger door module
3 Driver door module
4 Sunroof control module
5 Integrated Head Unit (IHU)
6 Navigation computer
7 digital versatile disc (DVD) autochanger autochanger
8 Audio amplifier
9 TMC tuner
10 Rear Seat Entertainment (RSE) module
11 TV tuner
12 Telephone transceiver module
13 SDARS receiver
14 compact disc (CD) autochanger
15 Steering wheel switch pack
16 Touch Screen Display (TSD)
17 Rotary coupler
18 Instrument cluster
