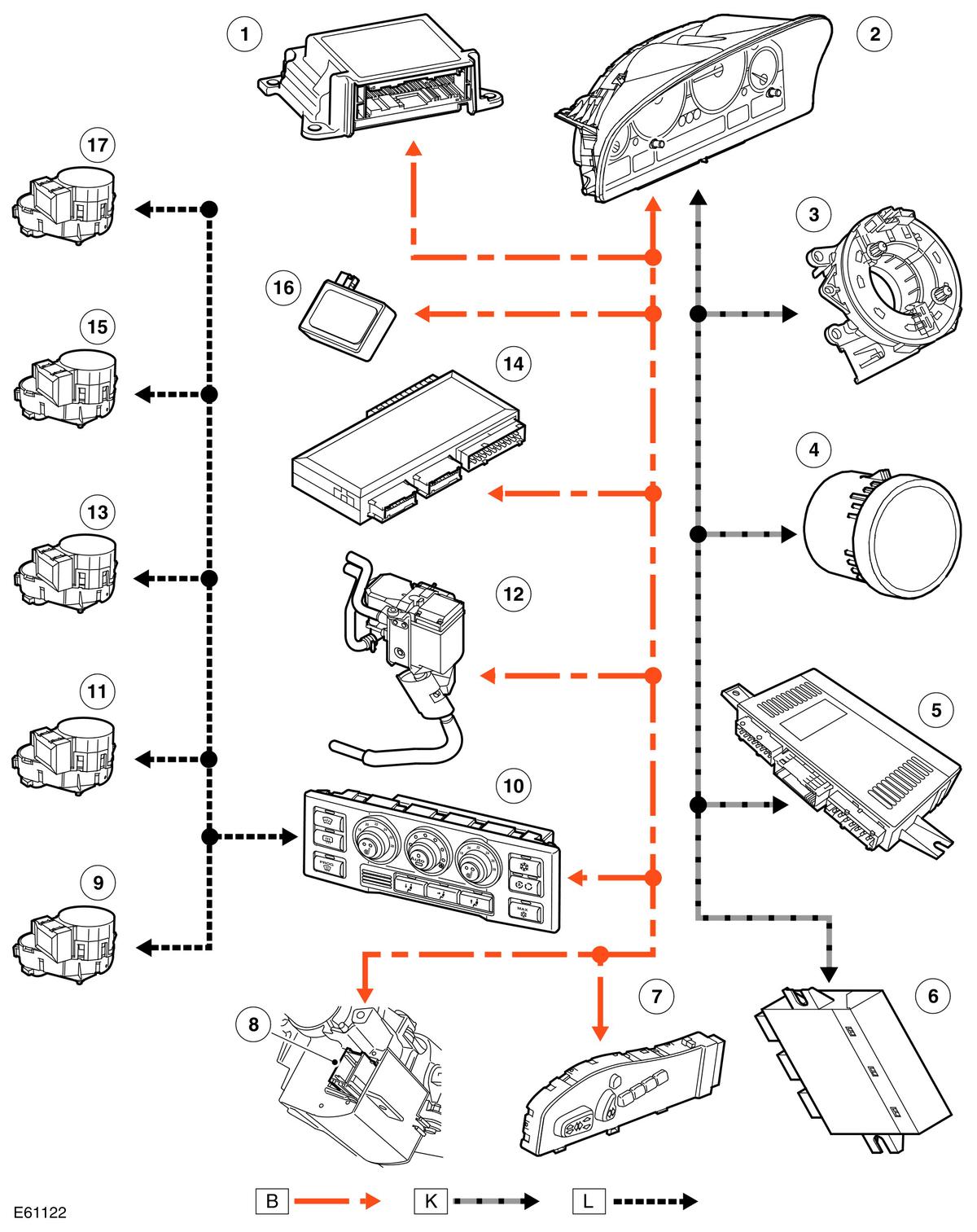

I/K Bus Control Diagram
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
B=K bus, K=I bus, L= M bus.
| Item Number | Description |
|---|---|
| 1 | restraints control module (RCM) |
| 2 | Instrument cluster |
| 3 | Clock spring |
| 4 | Clock |
| 5 | Light check module |
| 6 | Parking aid control module |
| 7 | Seat module |
| 8 | Steering column lock control module |
| 9 | Face level air distribution motor |
| 10 | Air conditioning control module |
| 11 | Windscreen air distribution motor |
| 12 | Fuel fired booster heater |
| 13 | Footwell air distribution motor |
| 14 | GEM |
| 15 | Rear face level temperature blend motor |
| 16 | Rain/light sensor |
| 17 | Ram air motor |
