Ambient Air Temperature Sensor: Removal

WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille. Refer to Radiator Grille .

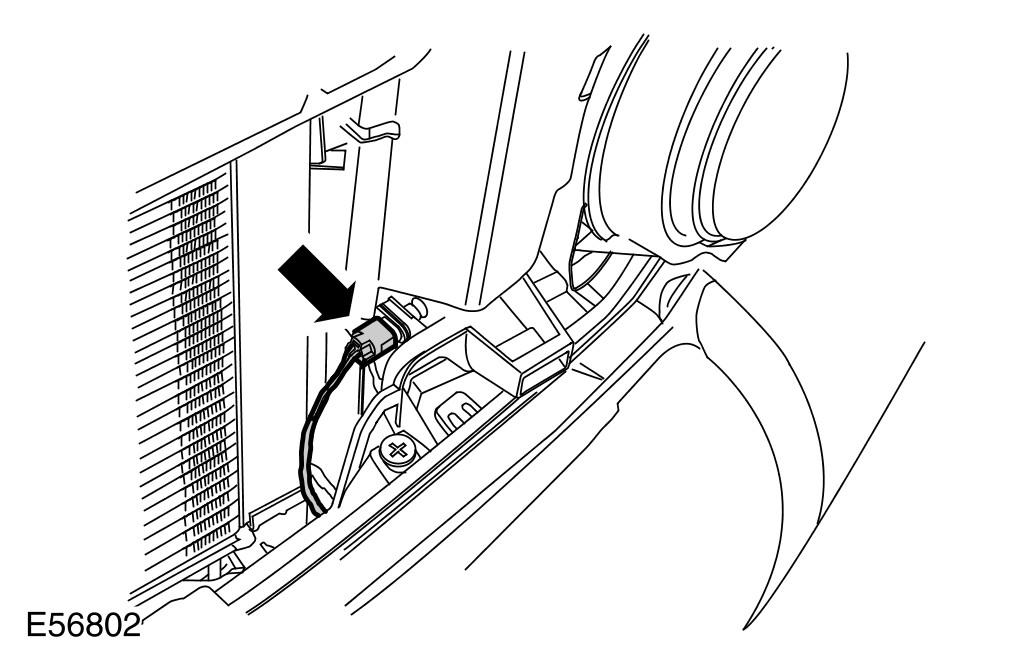

  2. Remove the ambient air temperature sensor.
    • Disconnect the electrical connector.
    GJ0017738
