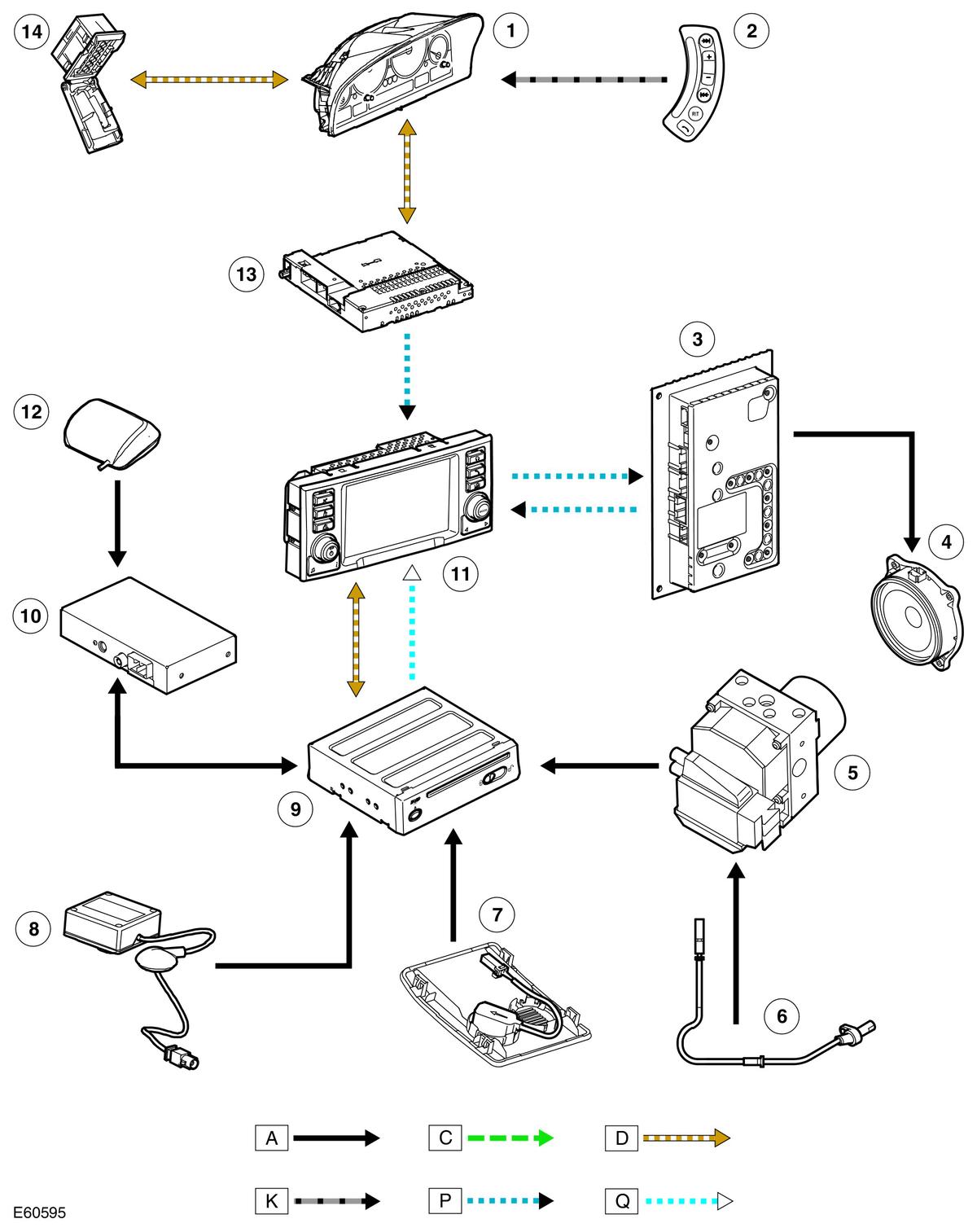

Navigation System Control Diagram (Japan Only)
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; C
= Diagnostic DS2 bus; D
= High speed CAN bus; K
= I - Bus; P
= Fibre Optic MOST; Q
= GVIF
| Item Number | Description |
|---|---|
| 1 | Instrument cluster |
| 2 | Steering wheel switches |
| 3 | Power amplifier |
| 4 | Speakers |
| 5 | ABS control module |
| 6 | Wheel speed sensor |
| 7 | Microphone |
| 8 | GPS antenna |
| 9 | Navigation computer |
| 10 | VICS receiver |
| 11 | Touch screen display |
| 12 | VICS beacon antenna |
| 13 | Integrated head unit (IHU) |
| 14 | Diagnostic socket |
