Navigation System Display Module: Removal

WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: After switching of the ignition, wait for 2 minutes before disconnecting the battery. Failure to wait for 2 minutes will damage the navigation computer.
  1. Disconnect the battery ground cable. Refer to Specifications article.

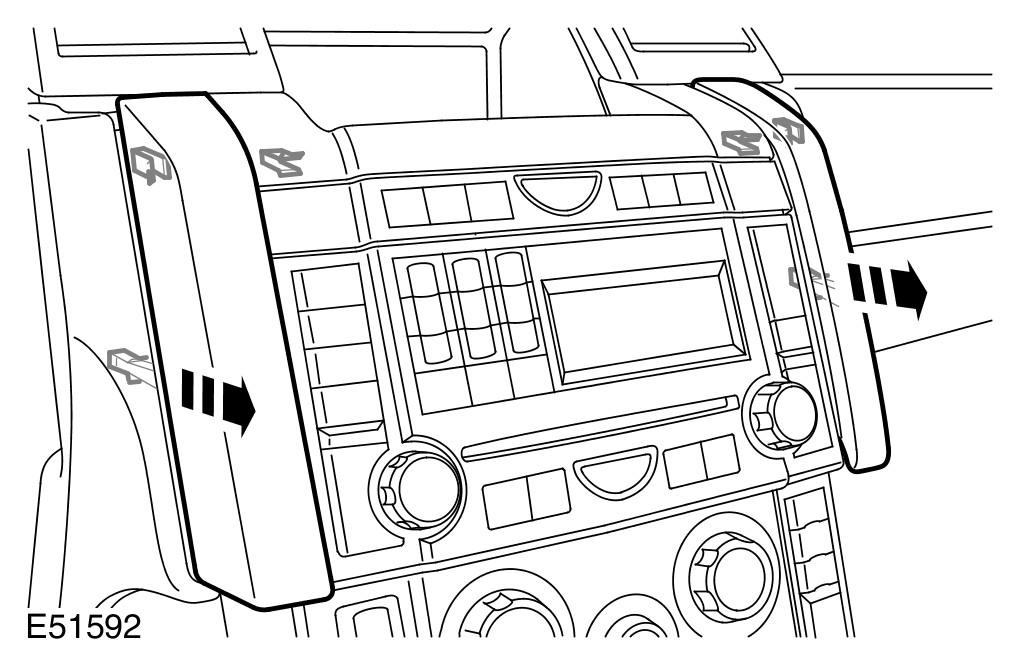

  2. Remove the audio unit side trim panels.
    • Release the 6 clips.
    GJ0020048

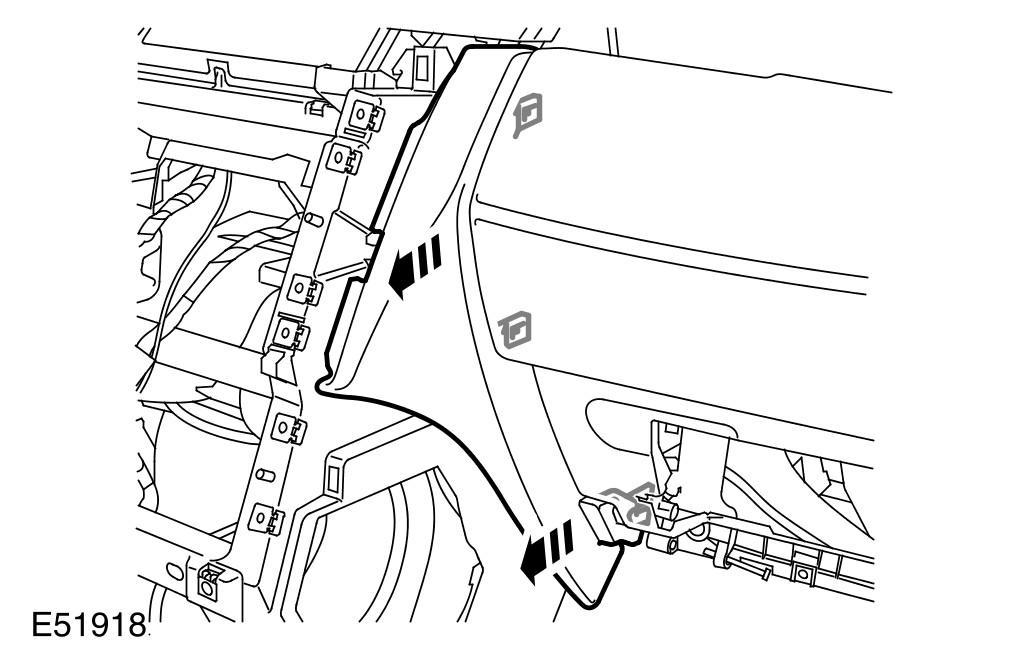

  3. Remove the instrument panel center reinforcement trim panel.
    • Release the 3 clips.
    • Repeat the above procedure for the other side.
    GJ0020060

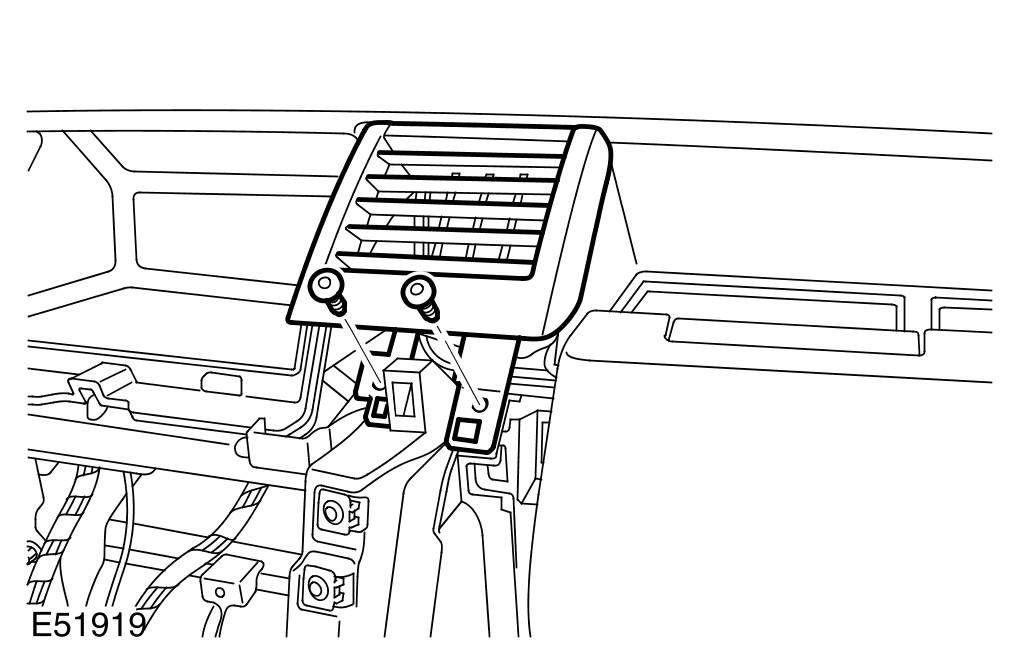

  4. Remove the center face level vent.
    • Remove the 2 Torx screws.
    • Repeat the above procedure for the other side.
    GJ0020061
    5. CAUTION: Cover fibre optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.

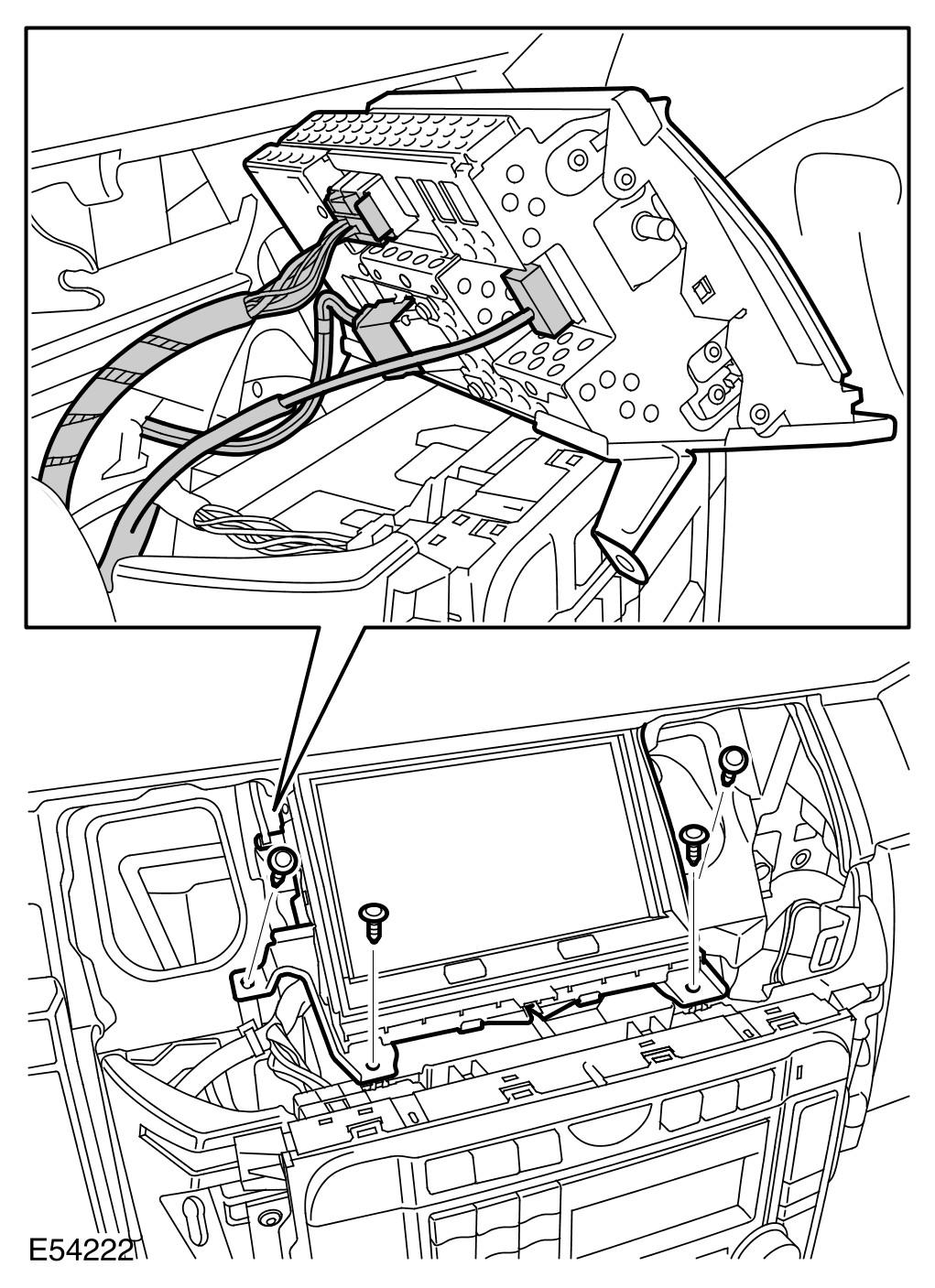

  5. Remove the navigation system display module.
    • Remove the 4 screws.
    • Disconnect the fibre optic connector.
    • Disconnect the 2 electrical connectors.
    GJ0020383
