Navigation Module: Service and Repair

Navigation System Compact Disc (CD) Unit

Service Repair No - 86.53.01

Removal

1. Disconnect the battery ground cable.
2. Make the SRS system safe.
3. Remove the LH front seat.

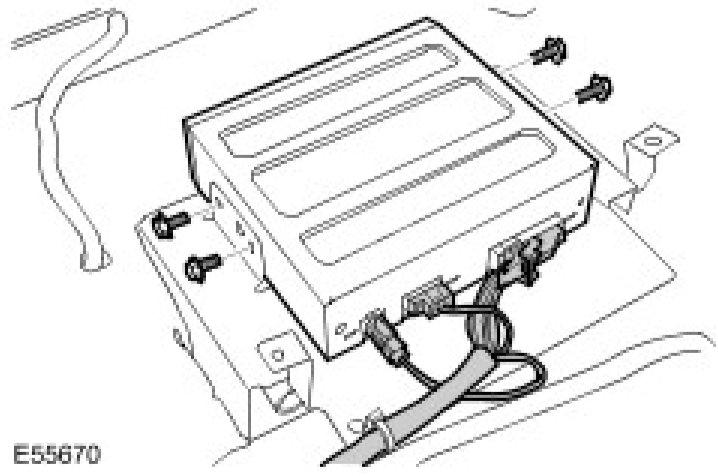

4. Remove the CD unit.
^ Remove the 4 bolts.
^ Disconnect the antenna cable.
^ Disconnect the 2 electrical connectors.





Installation
1. Install the CD unit.
^ Tighten the bolts to 6 Nm (4 lb.ft).
^ Connect the electrical connectors.
^ Connect the antenna cable.
2. Install the LH front seat.
3. Connect the battery ground cable.
