Emergency Contact Module

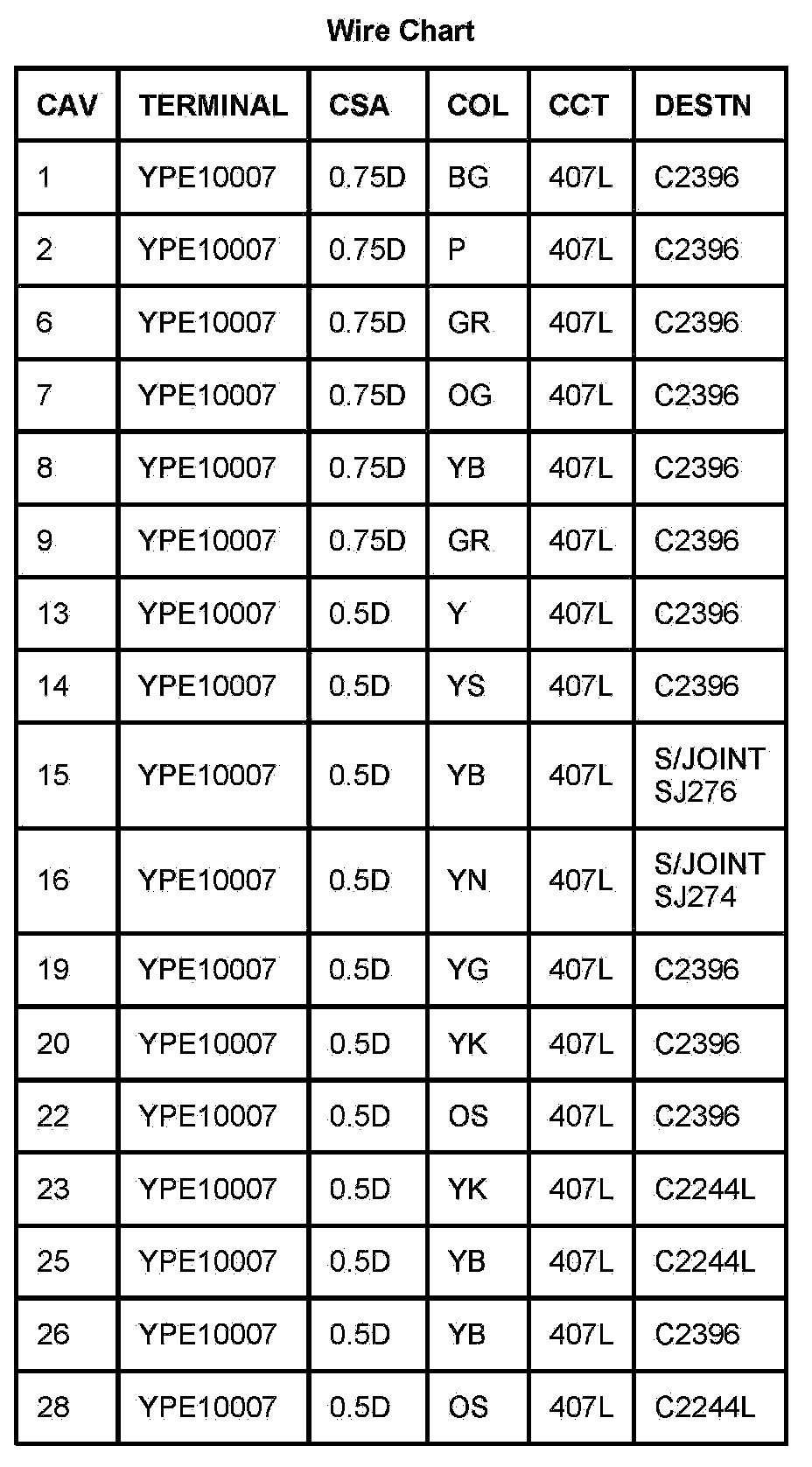

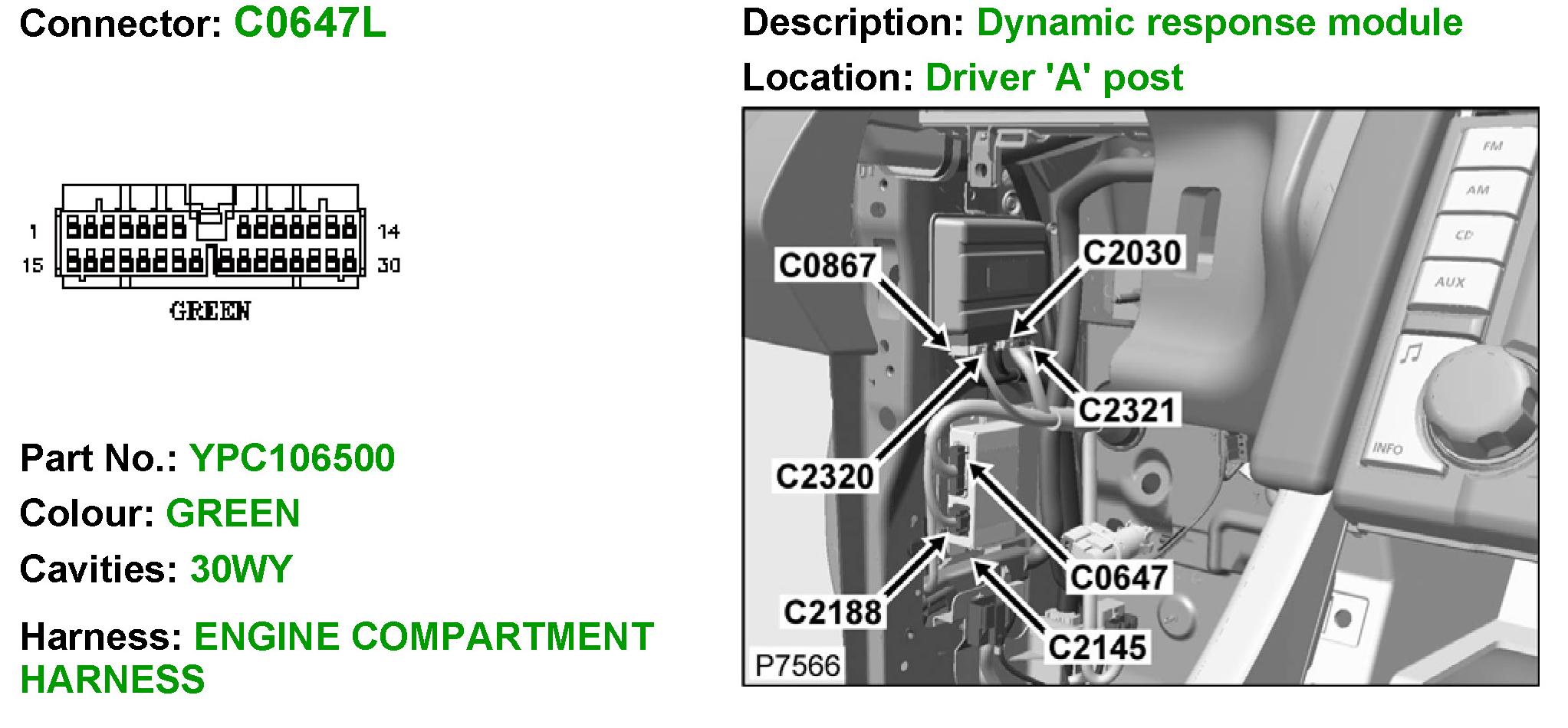

C0647L (Part 1):
C0647L (Part 2):

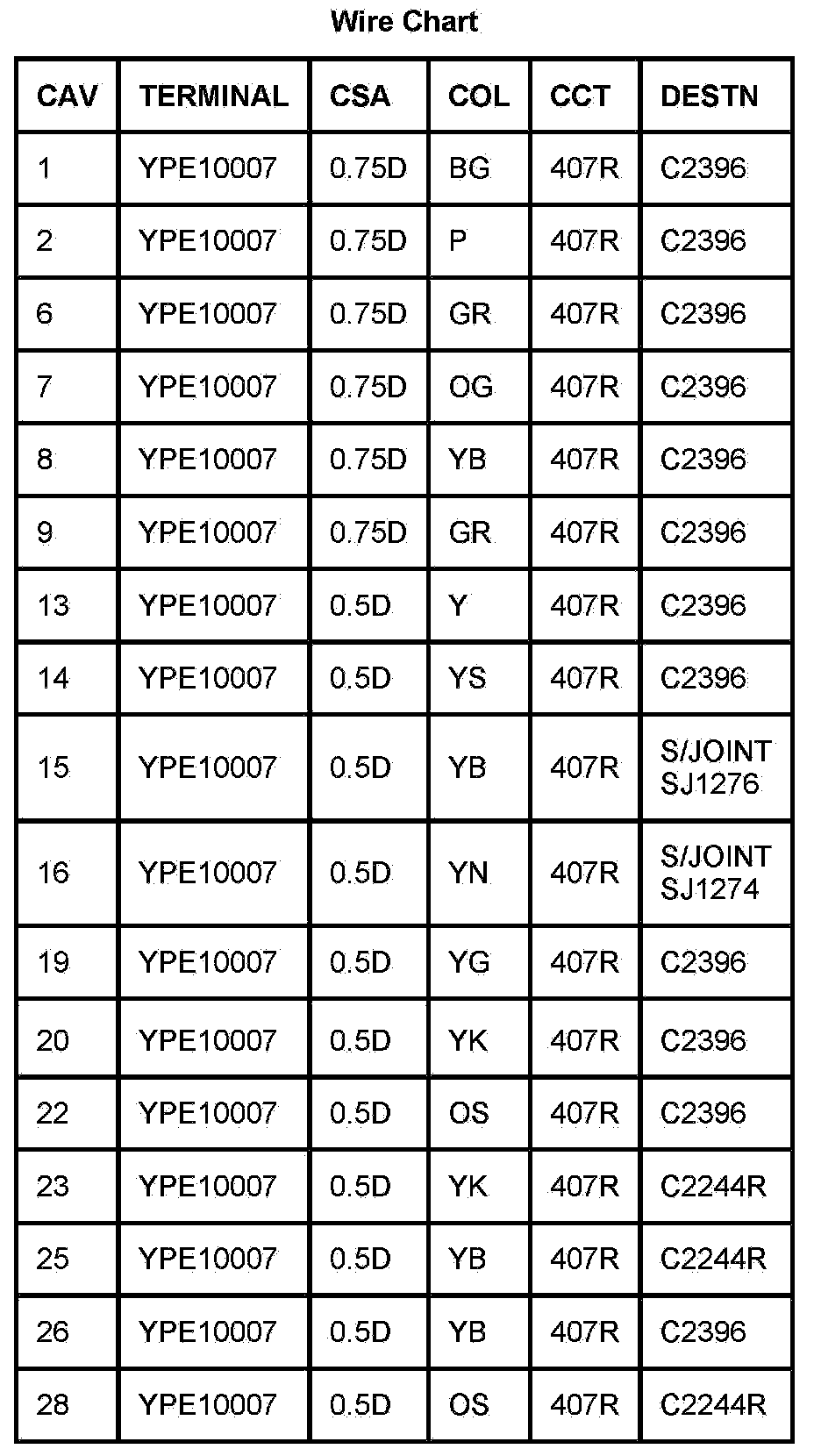

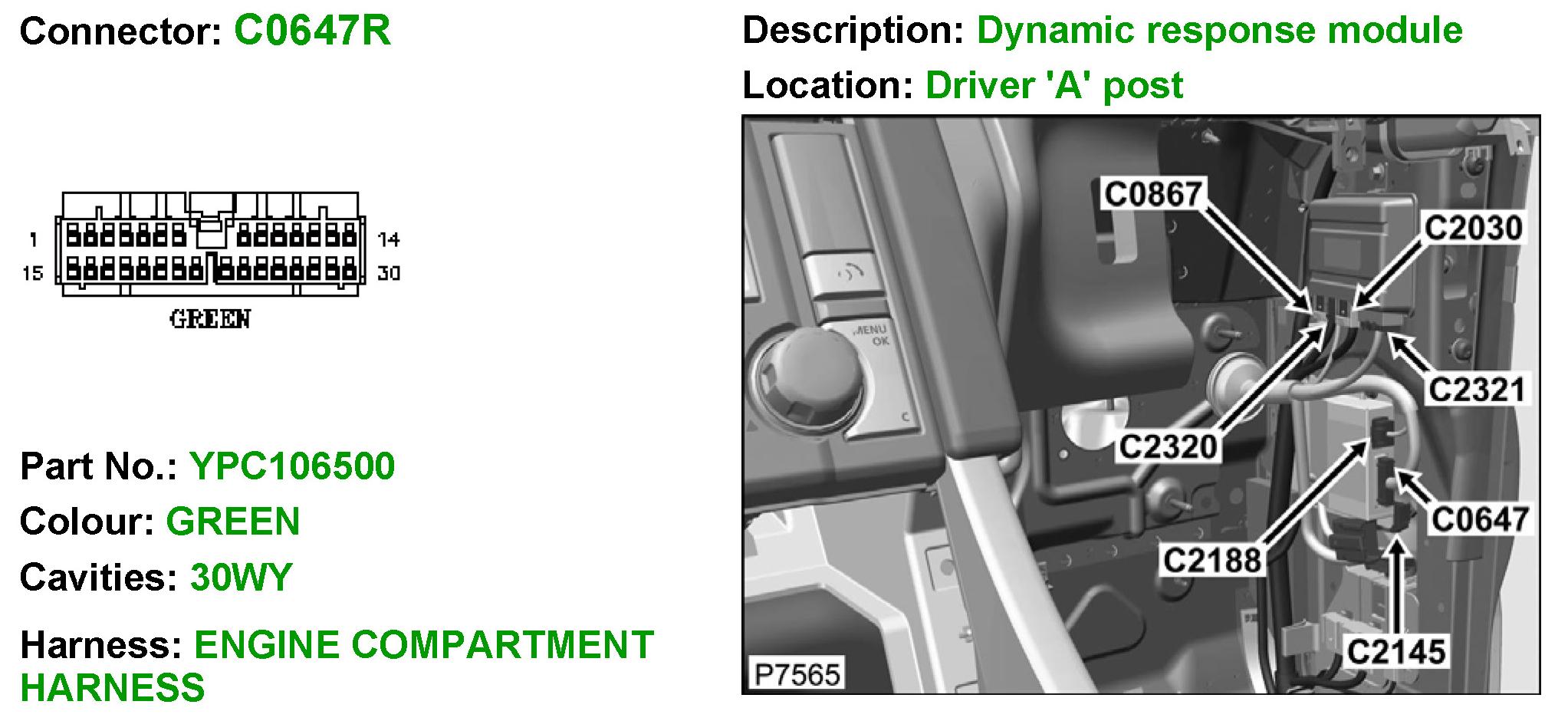

C0647R (Part 1):
C0647R (Part 2):

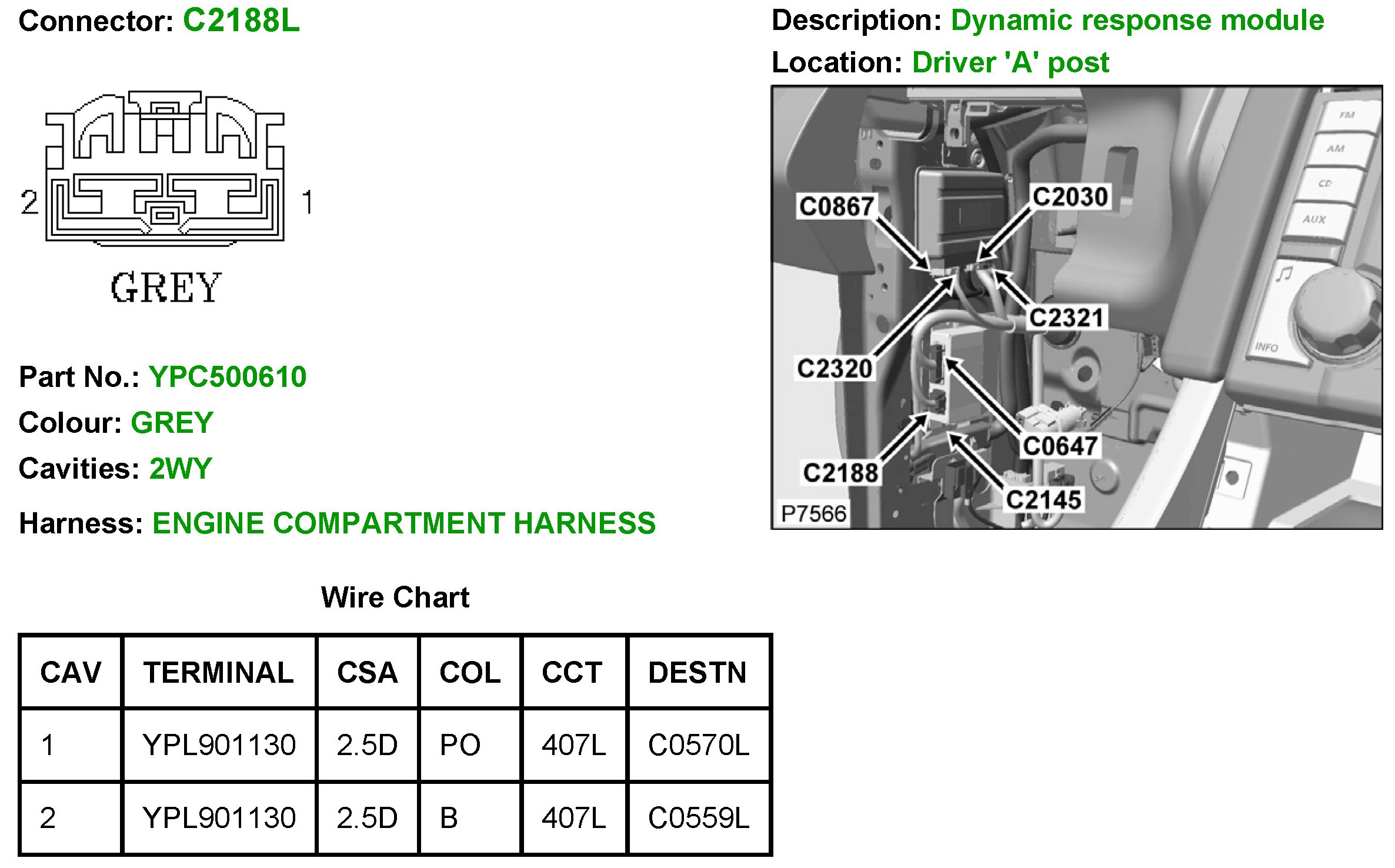

C2188L:

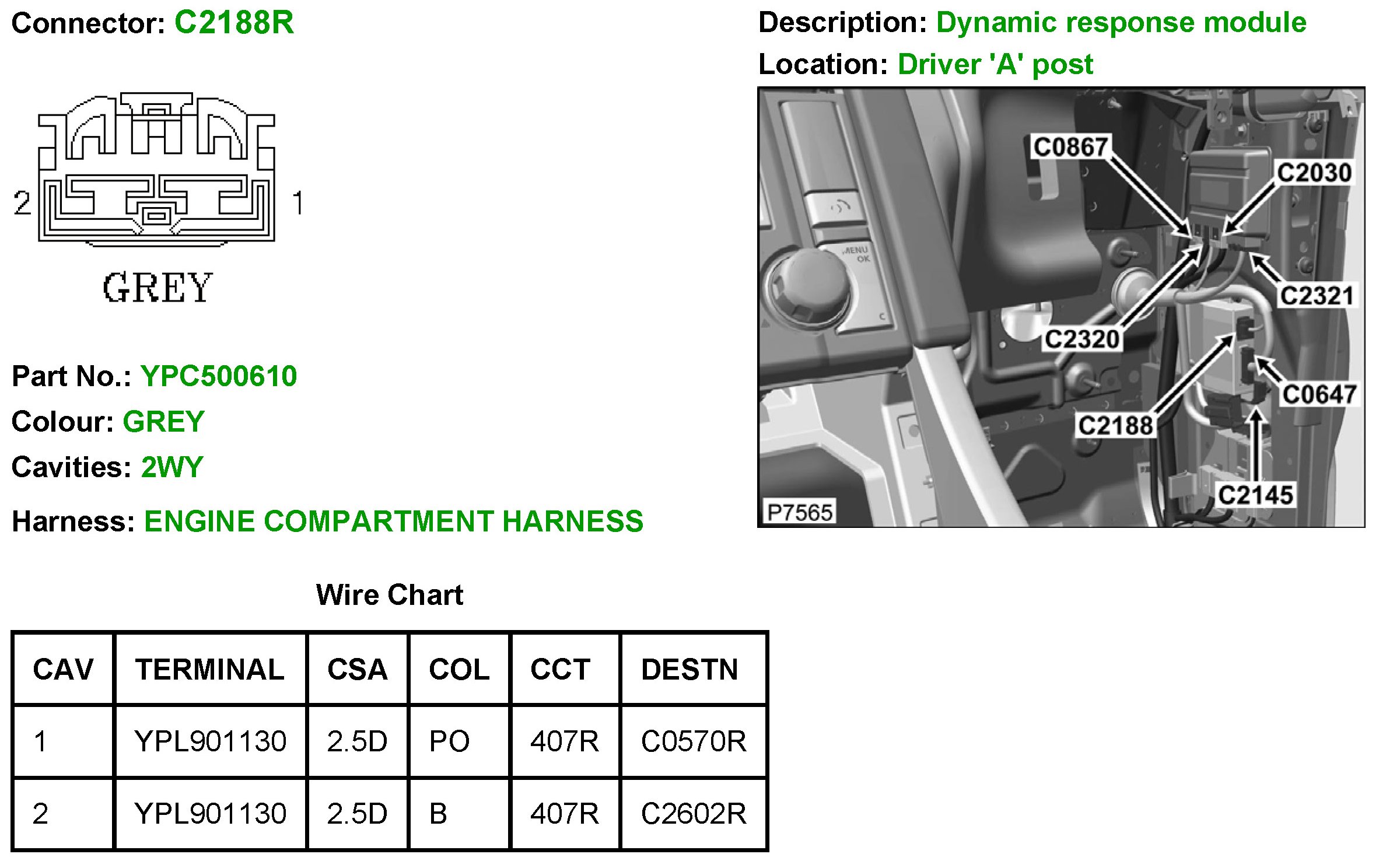

C2188R:
