Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Sensor-Air Bag-Side-Rear-LH
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Sensor-Air Bag-Side-Rear-LH

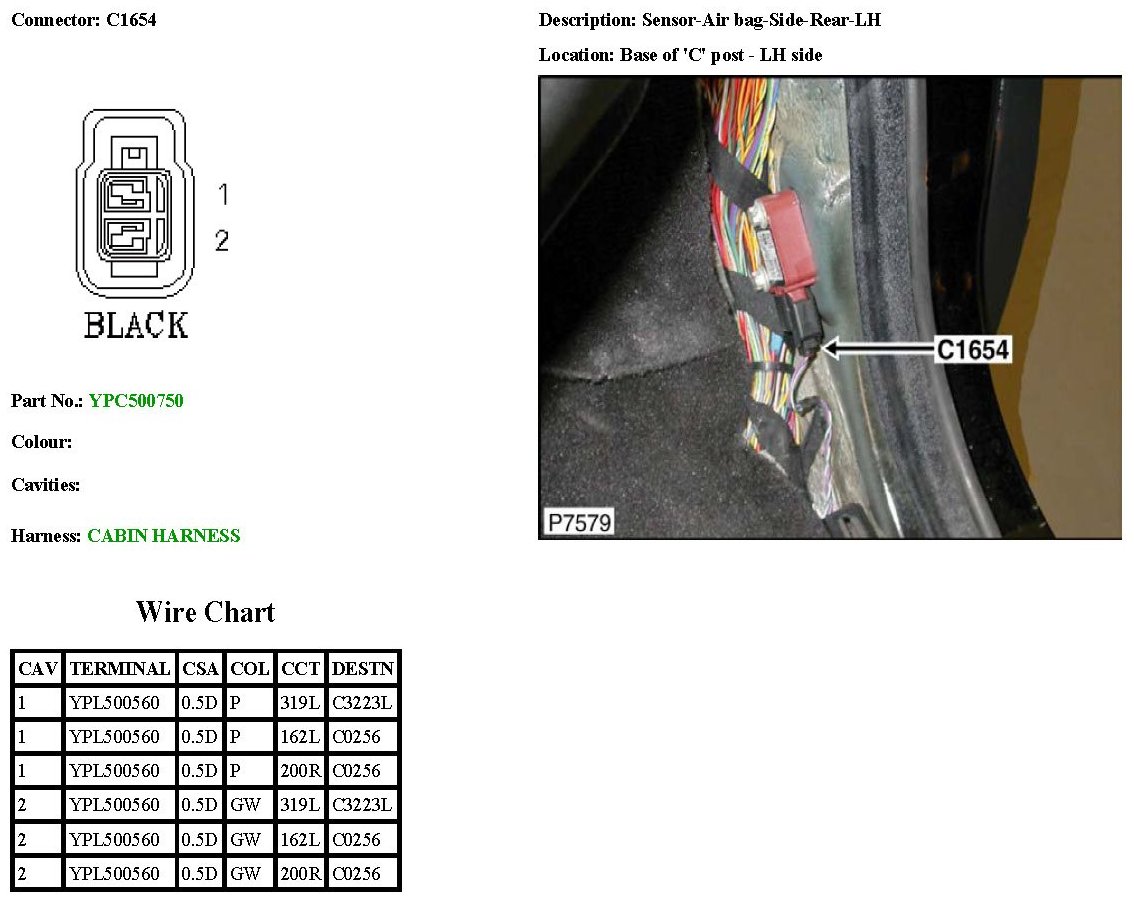

C1654:

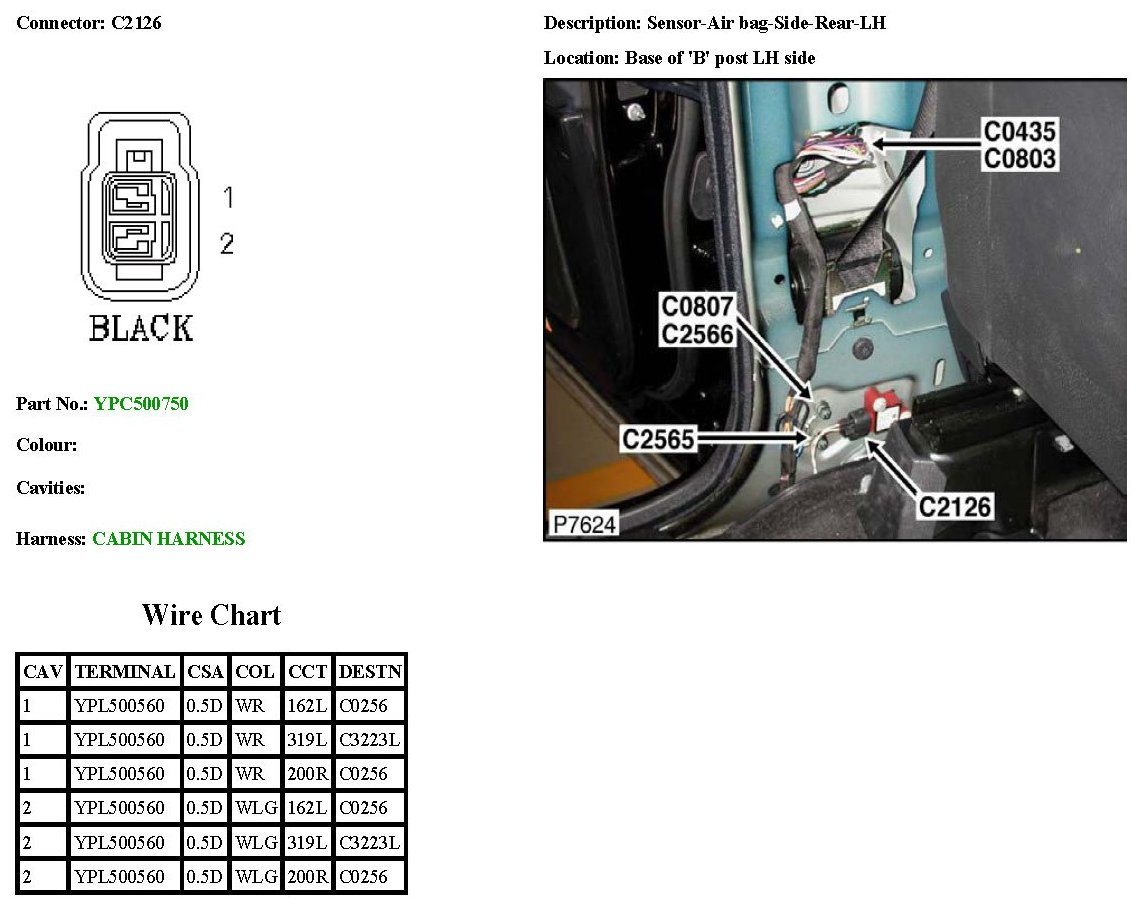

C2126:
