Control Assembly: Service and Repair

Climate Control Assembly

Service Repair No - 80.10.02

Removal

1. Remove the floor console.
2. Remove the climate control assembly.

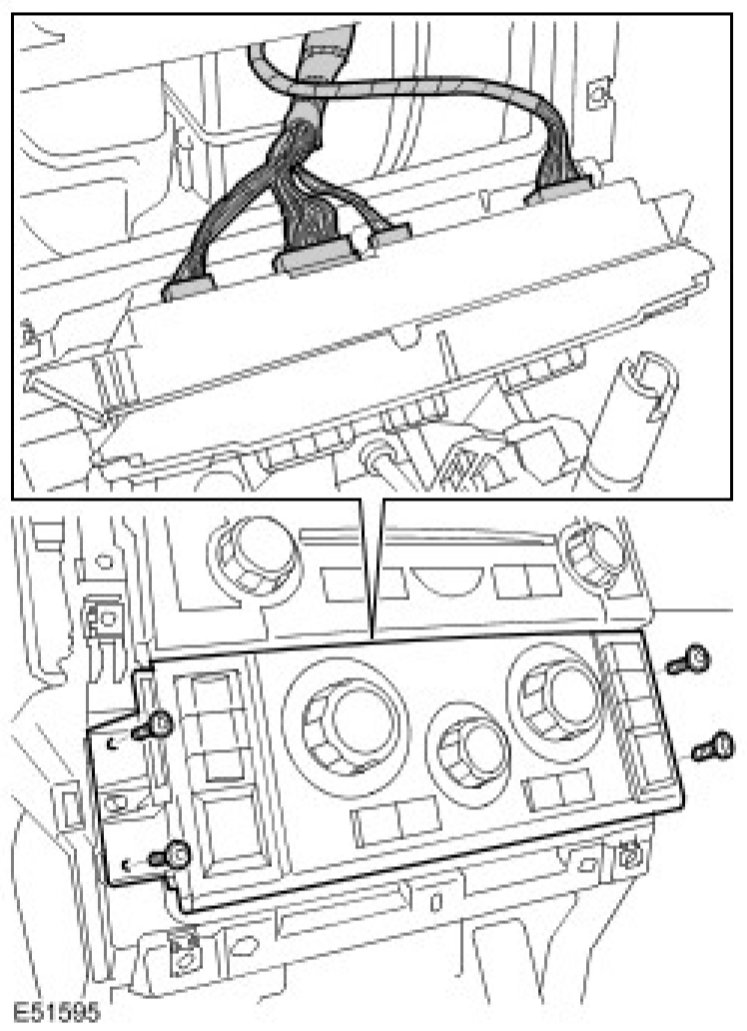

^ Remove the 4 Torx screws.
^ Disconnect the 4 electrical connectors.





Installation

1. Install the climate control assembly.
^ Connect the electrical connectors.
^ Tighten the Torx screws.
2. Install the floor console.
