Camshaft Position Sensor: Service and Repair

Camshaft Position (CMP) Sensor

Service Repair No - 18.30.24

Removal
1. Disconnect the battery ground cable.
2. Remove the throttle body gasket.

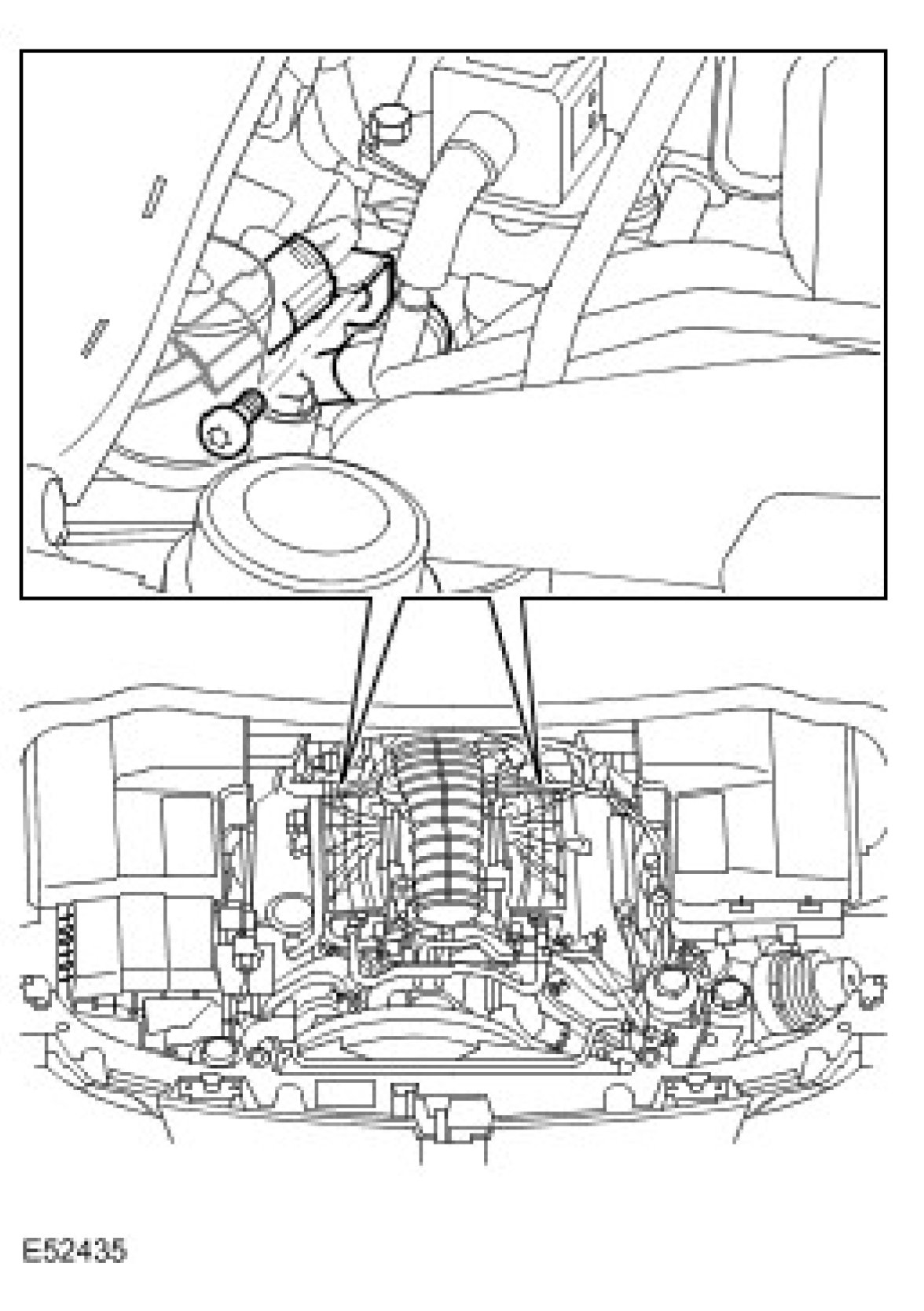

3. Remove the camshaft position (CMP) sensor.
^ Disconnect the electrical connector.
^ Remove the Torx screw.
^ Discard the O-ring seal.

NOTE: Removal of the RH sensor is similar to this procedure.





Installation
1. To install, reverse the removal procedure.
^ Clean the component mating faces.
^ Install a new O-ring seal.
^ Tighten the Torx screw to 7 Nm (5 ft. lbs.).
