Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature (ECT) Sensor

Service Repair No - 18.30.10

Removal
1. Disconnect the battery ground cable.
2. Remove the engine cover.

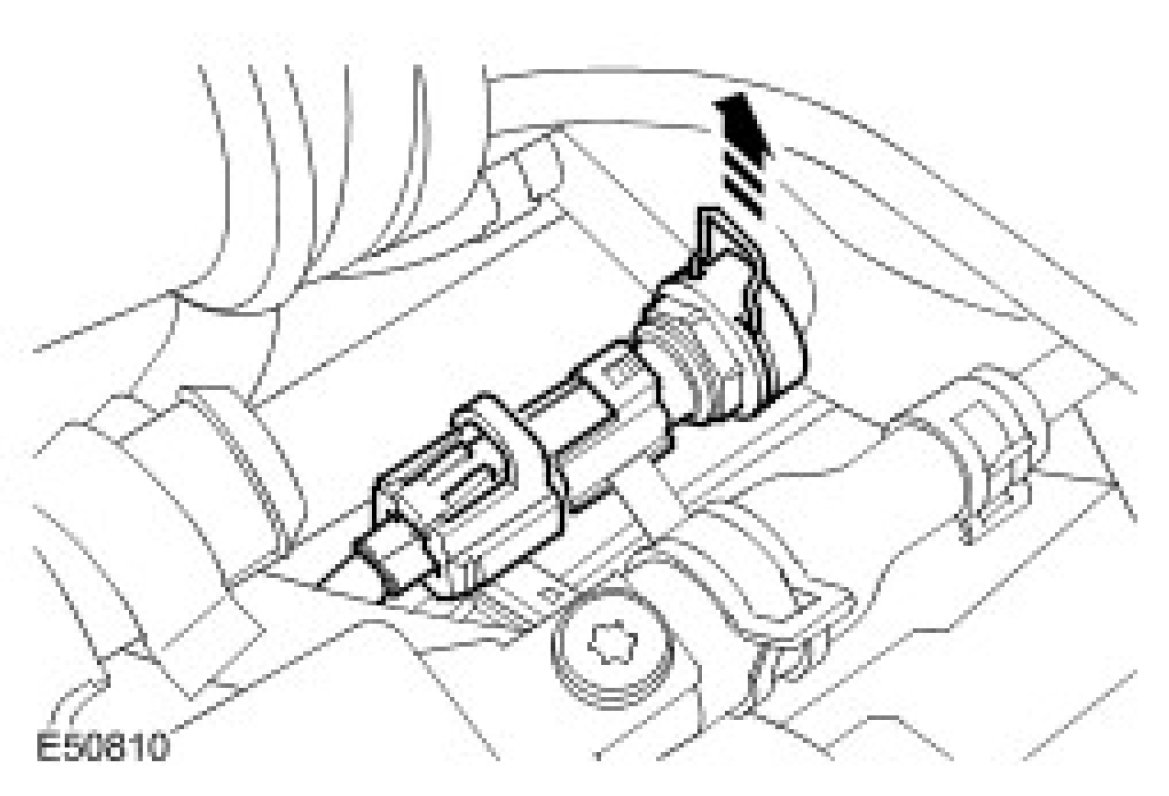

3. Remove the ECT sensor.
^ Position an absorbent cloth to collect fluid spillage.
^ Disconnect the electrical connector.
^ Release the clip.
^ Remove the sensor and discard the seal.





Installation
1. To install, reverse the removal procedure.
^ Clean the component mating faces.
^ Check and top-up the coolant if required.
