Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor

Service Repair No - 18.30.12

Removal
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

3. Remove the engine undershield.

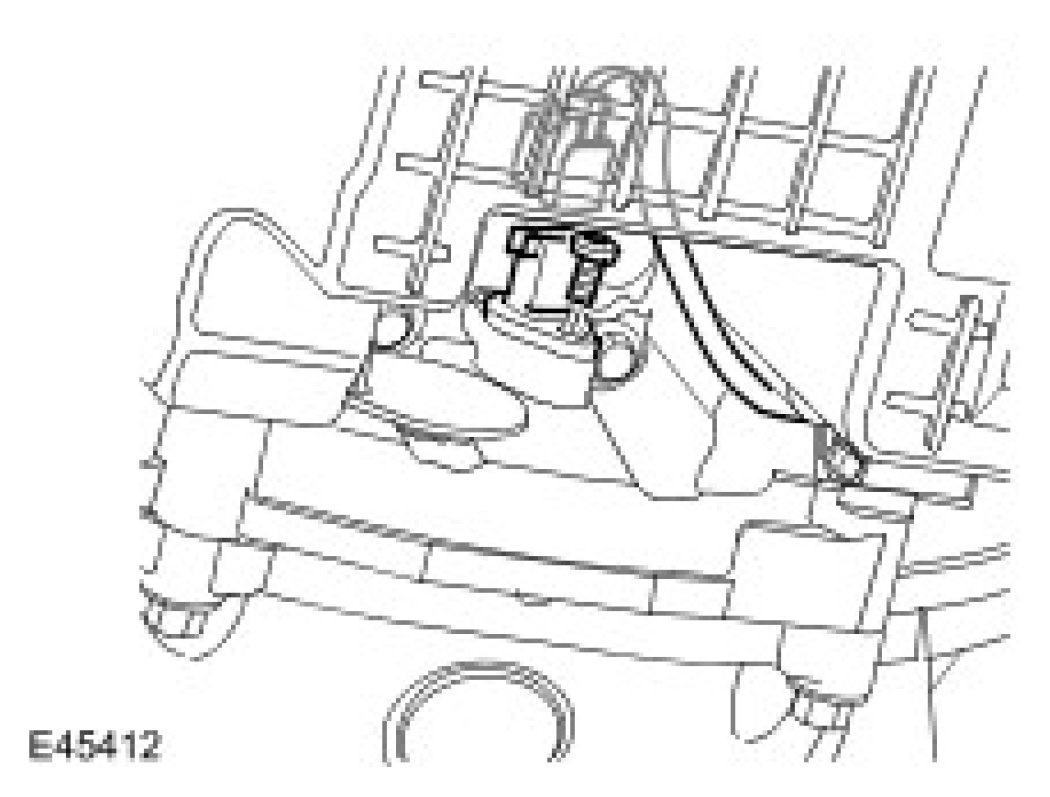

4. Remove the crankshaft position (CKP) sensor.
^ Disconnect the electrical connector.
^ Remove the Torx screw.

CAUTION: Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.





Installation
1. To install, reverse the removal procedure.
^ Tighten the Torx screw to 8 Nm (6 ft. lbs.).

2. Install the engine undershield.
3. Connect the battery ground cable.
