Table of Circuit Option Codes



Table Of Circuit Option Codes

The following table contains a list of circuit (Cct) reference numbers against a description of the applicable model or option. This information should be used in conjunction with the connector pin-out tables to determine the wire configuration of the vehicle under test.

13-41:

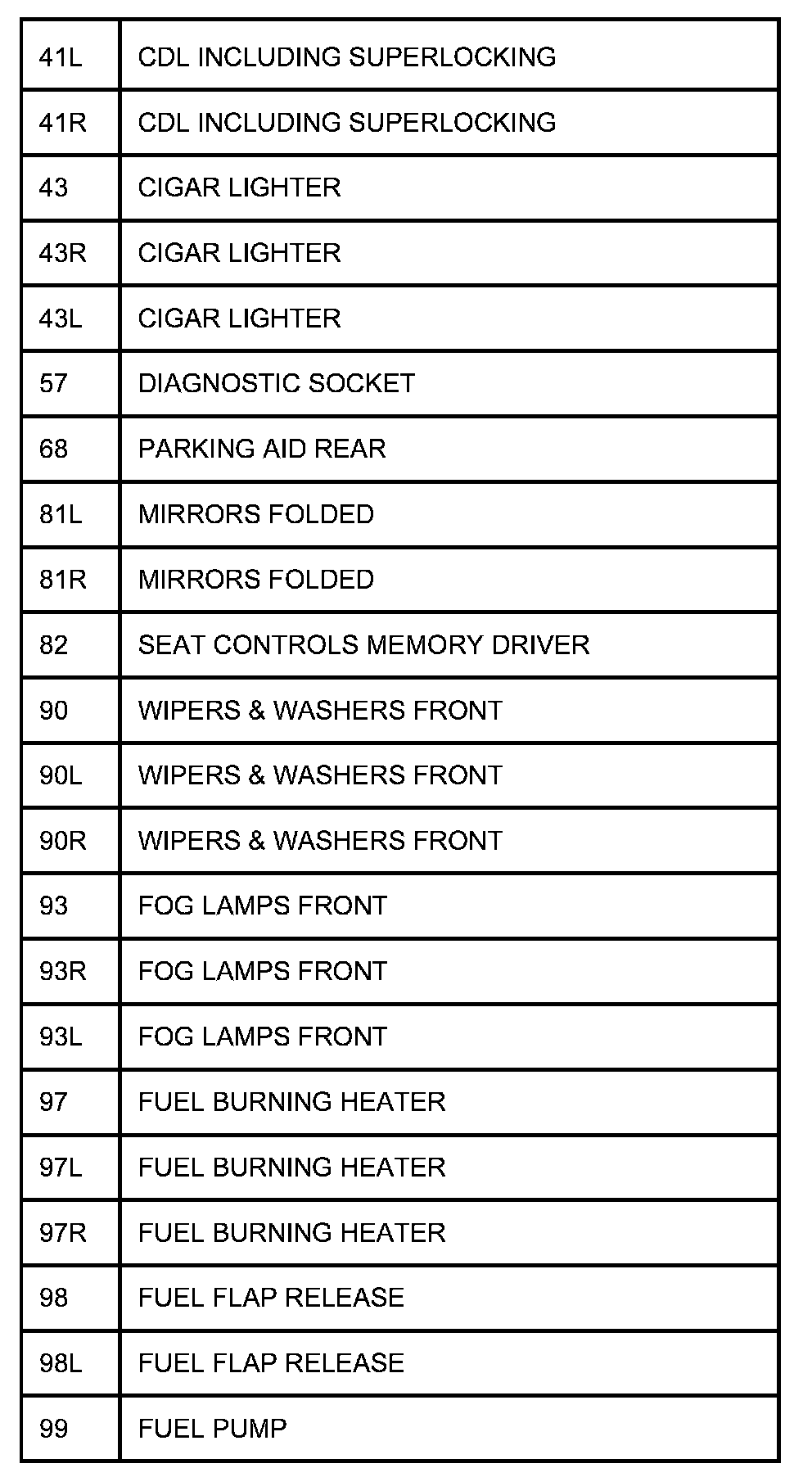

41L-99:

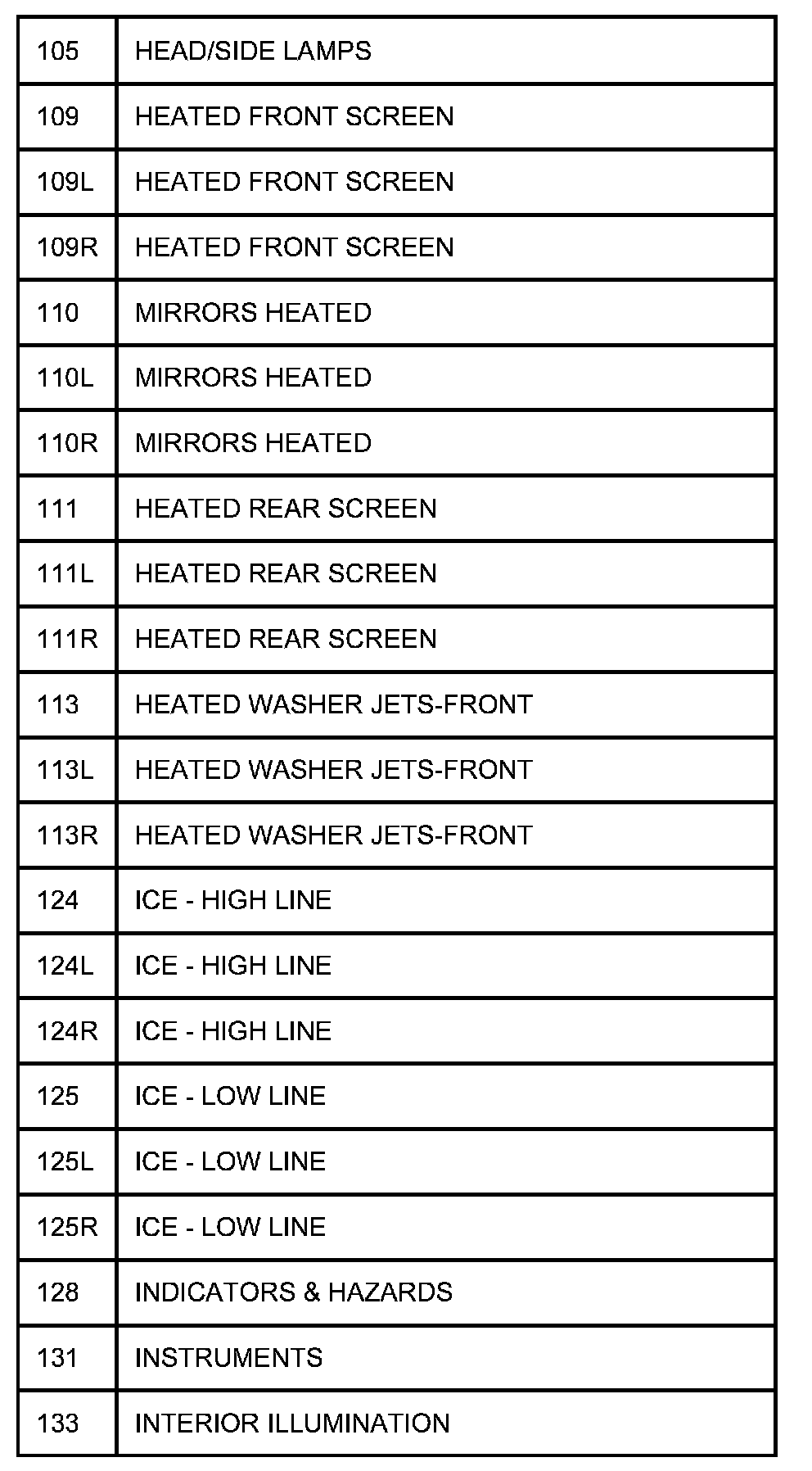

105-133:




134-194:

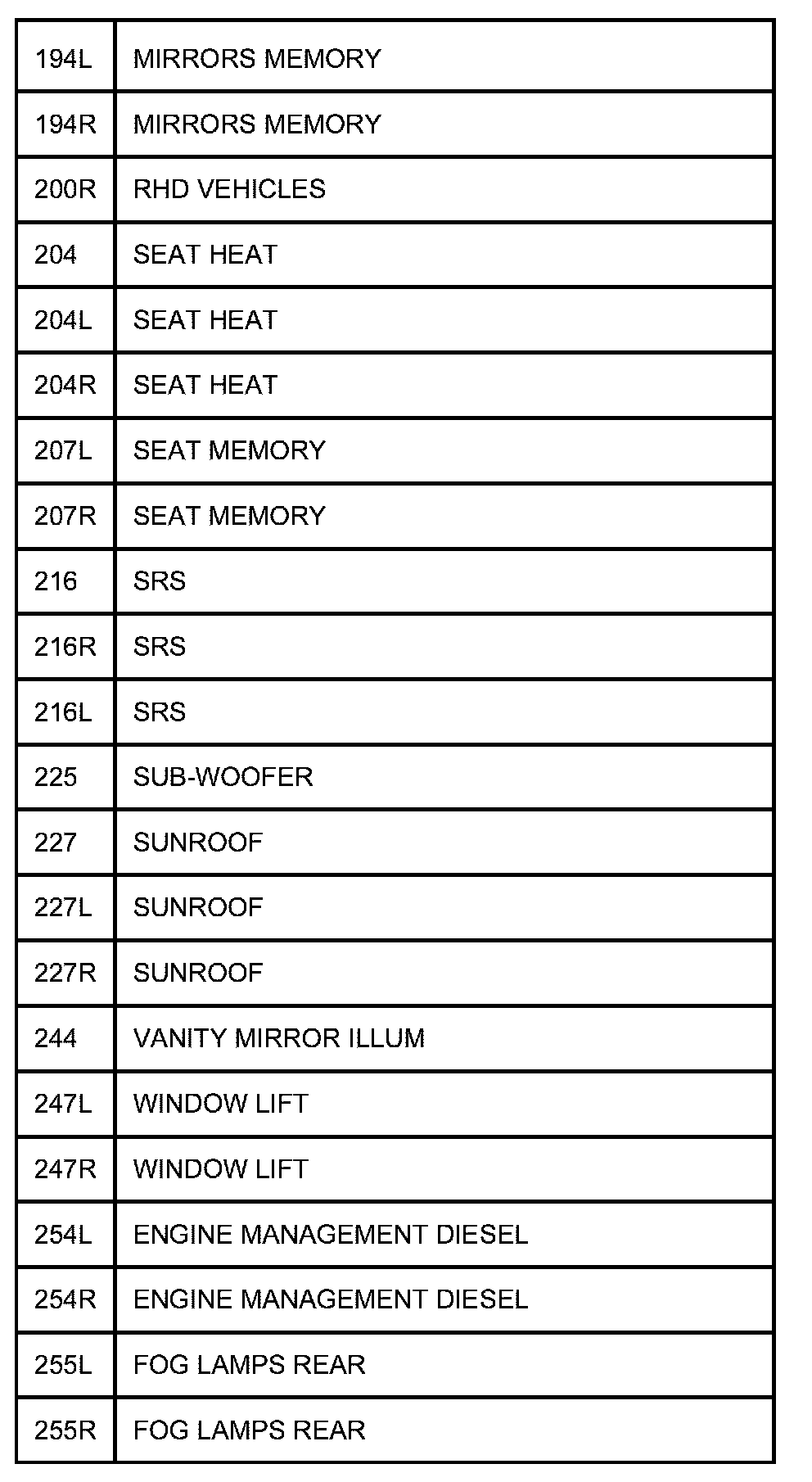

194L-255R:

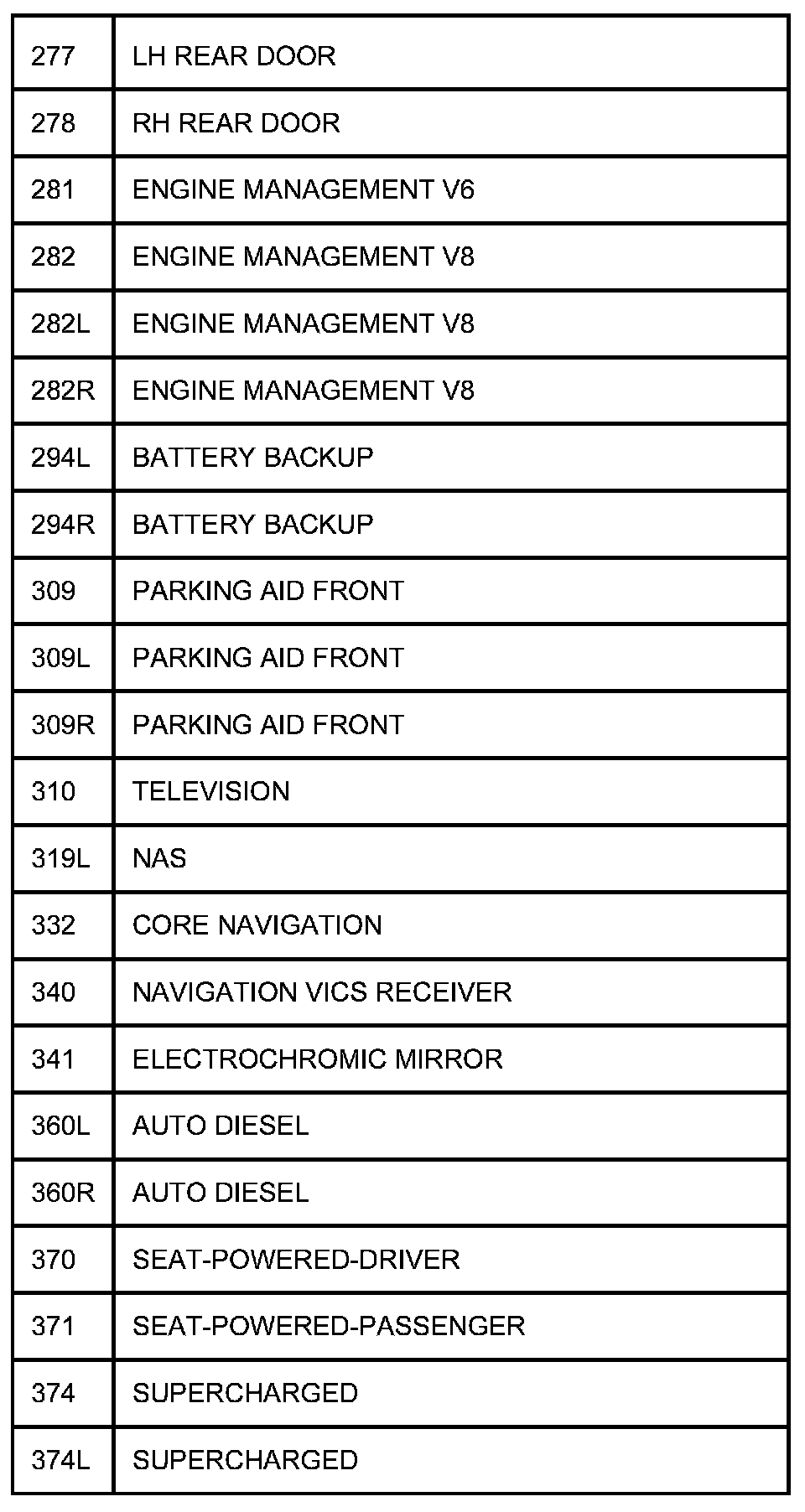

277-374L:

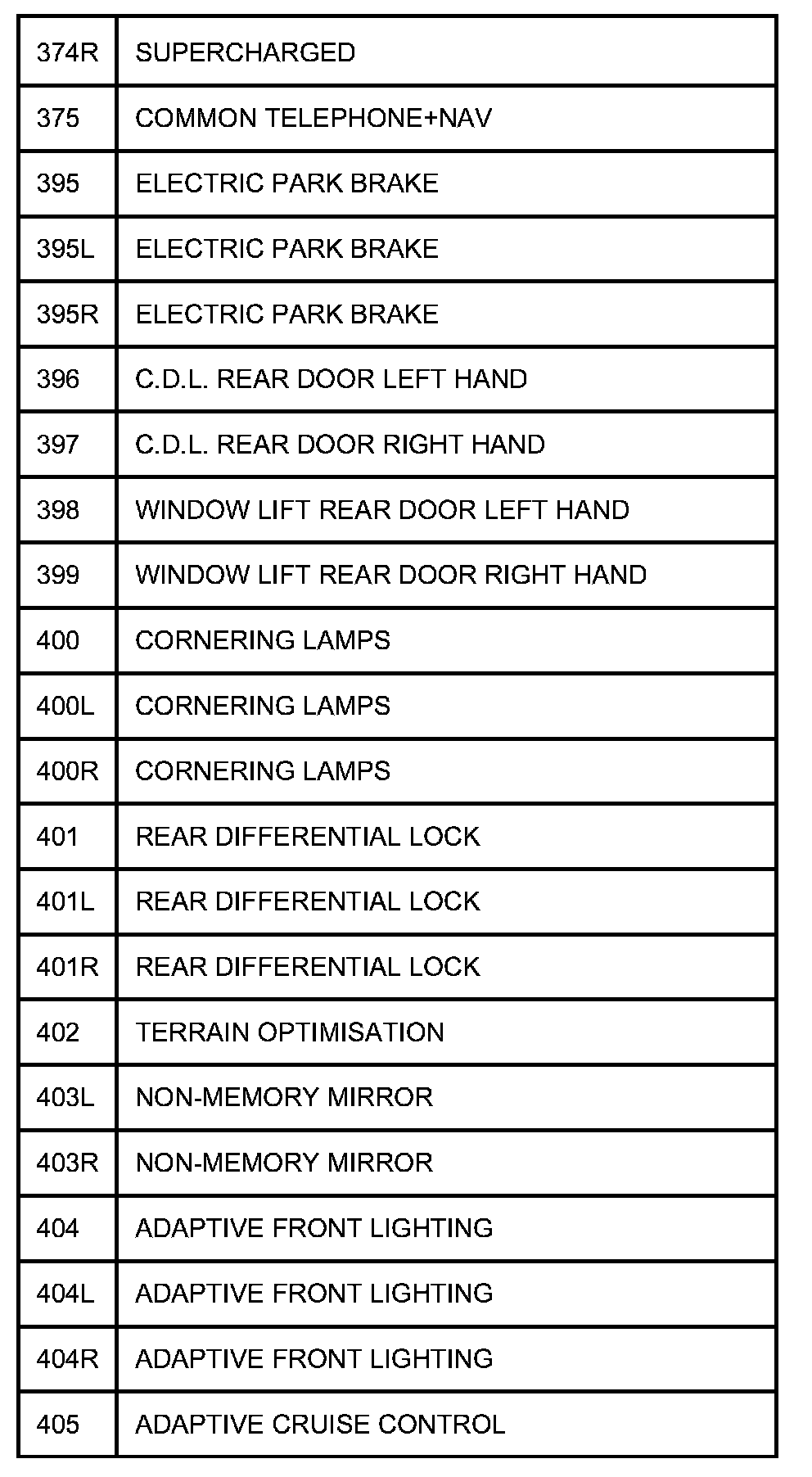

374R-405:

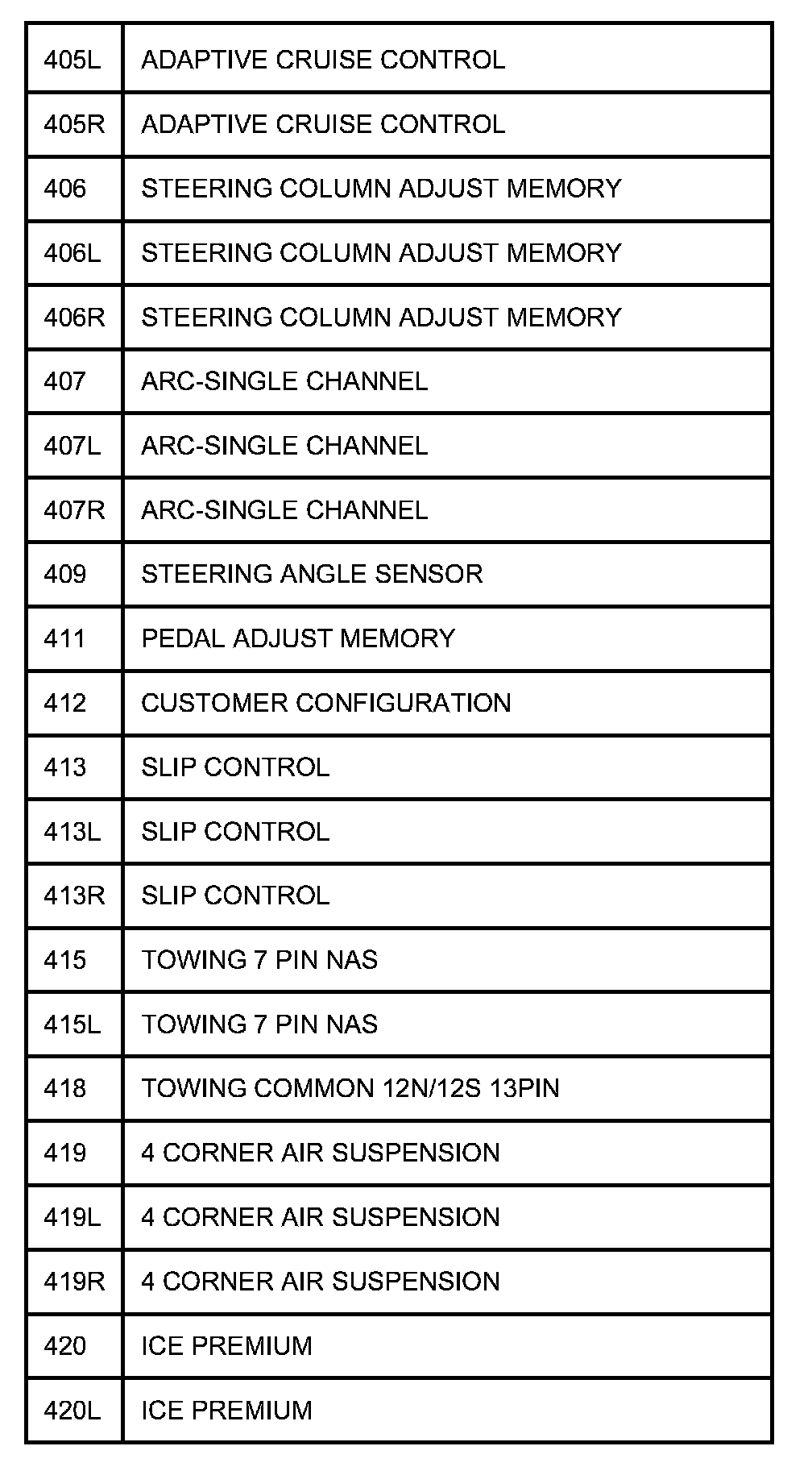

405L-420L:

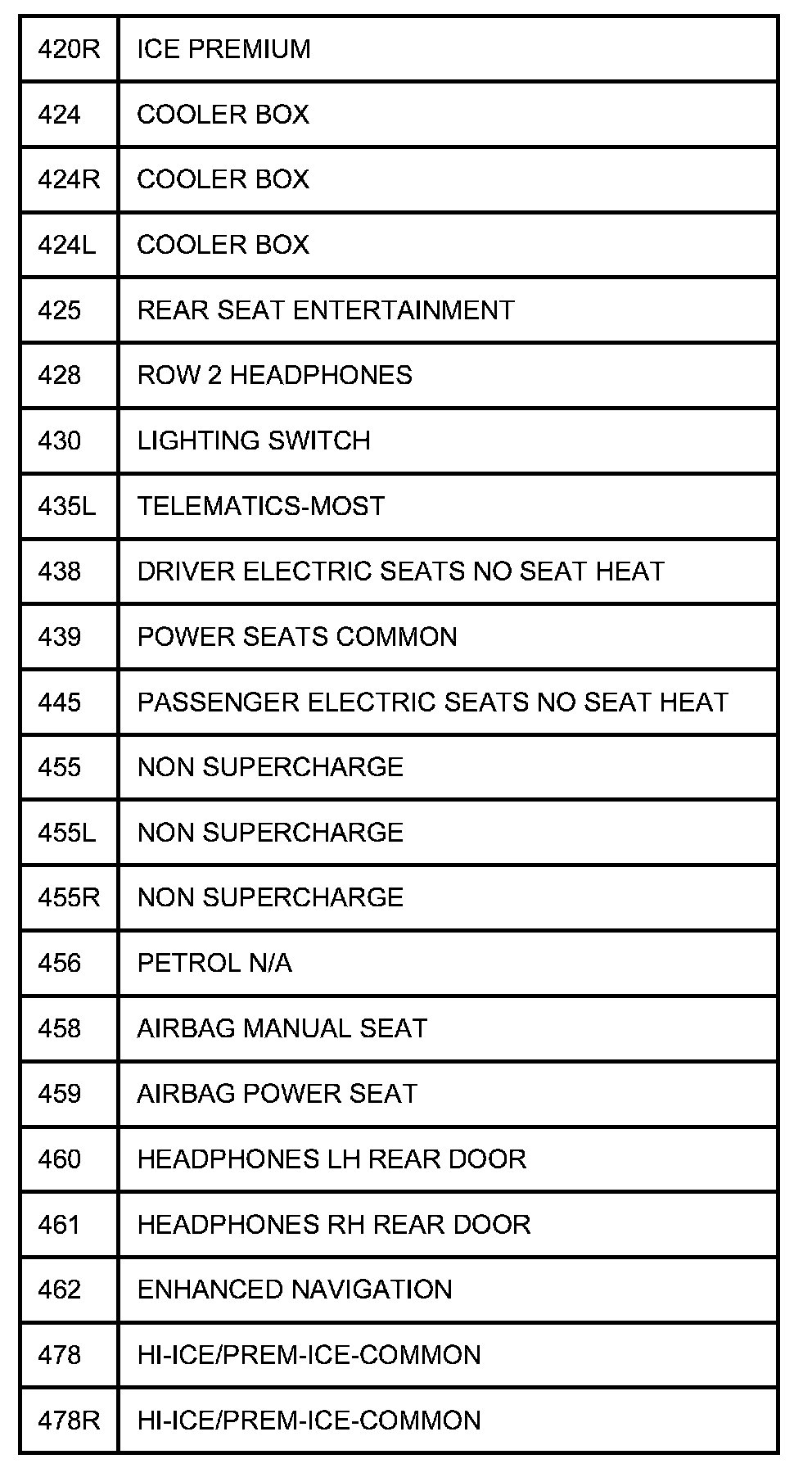

420R-478R:

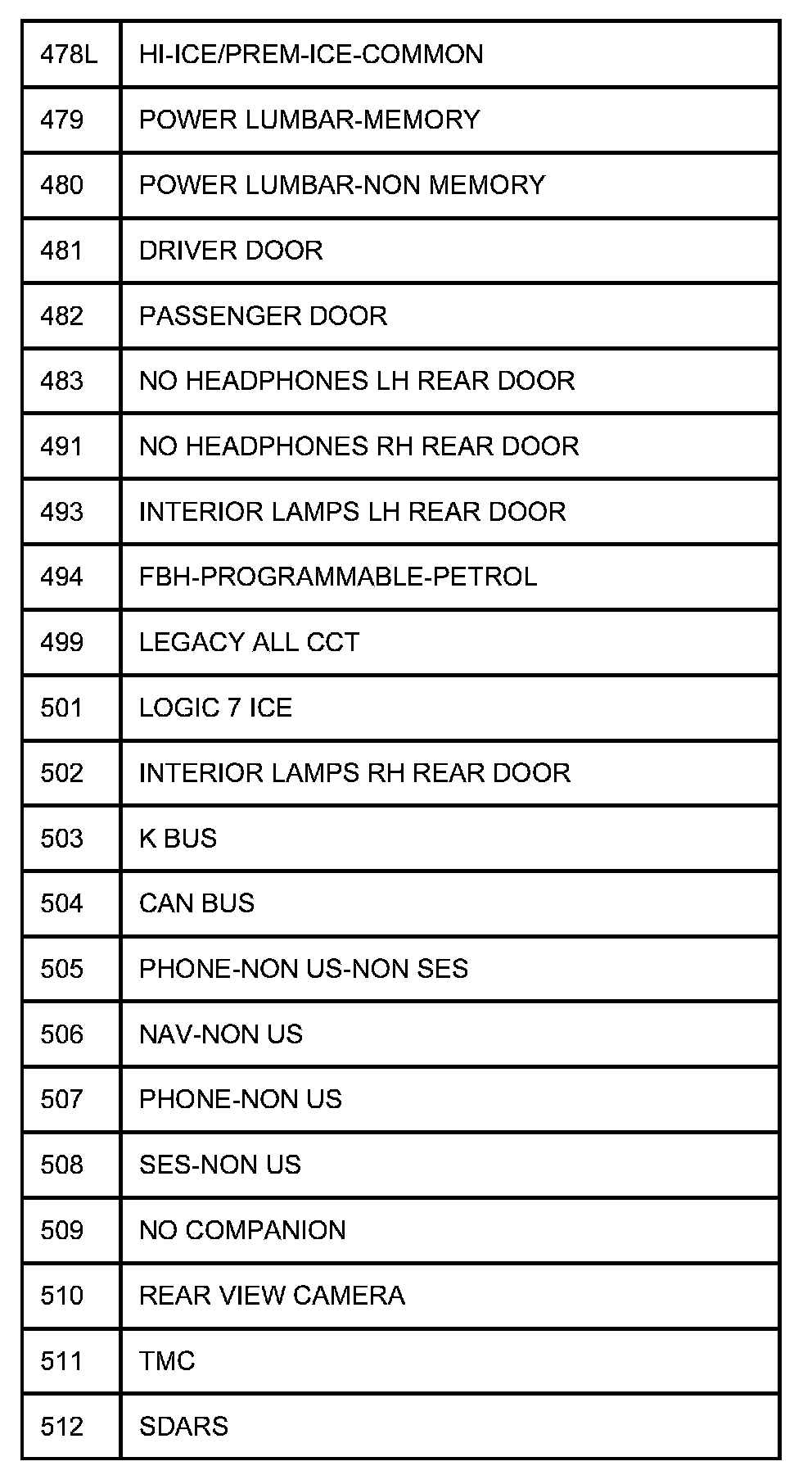

478L-512:

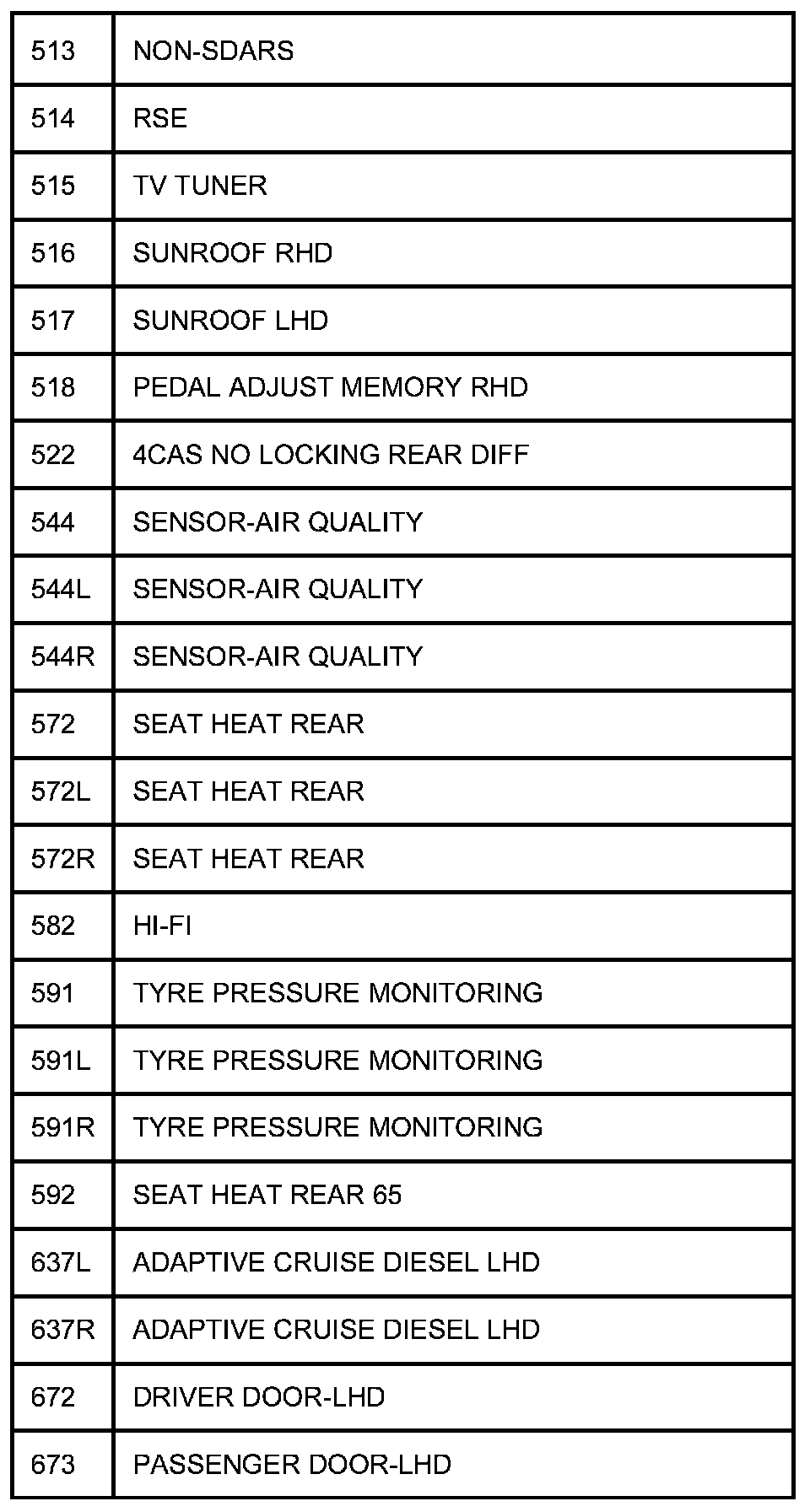

513-673:

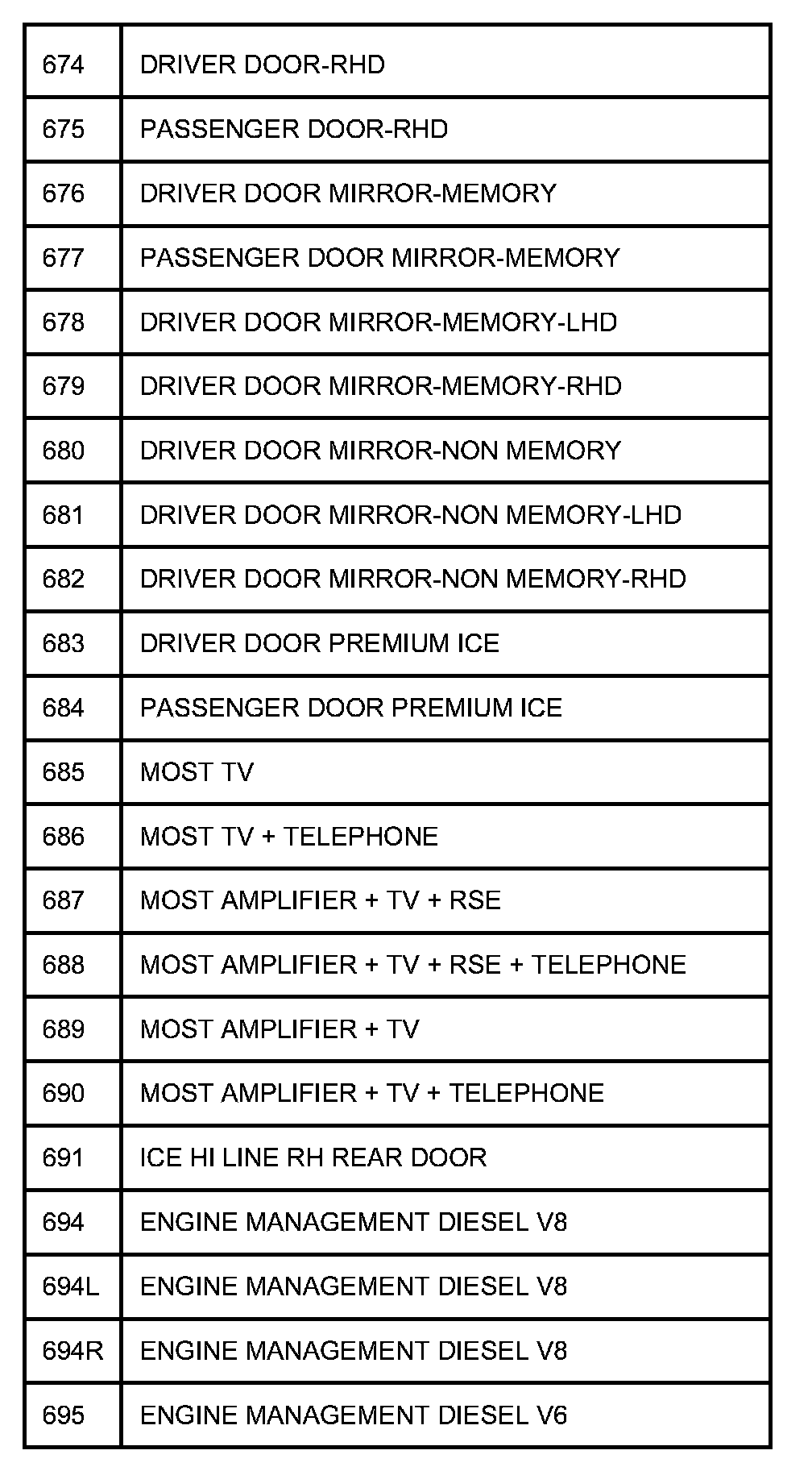

674-695:

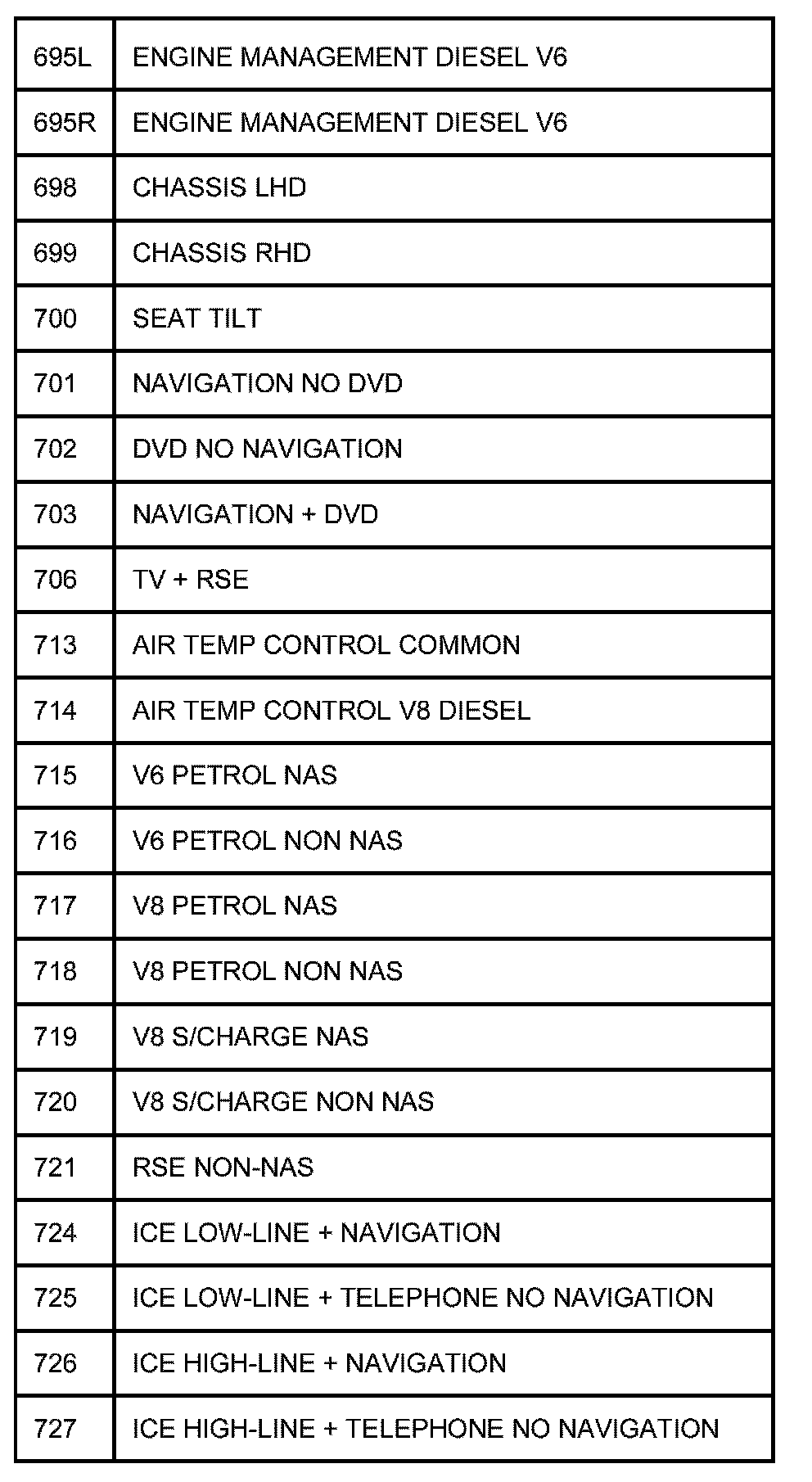

695L-727:

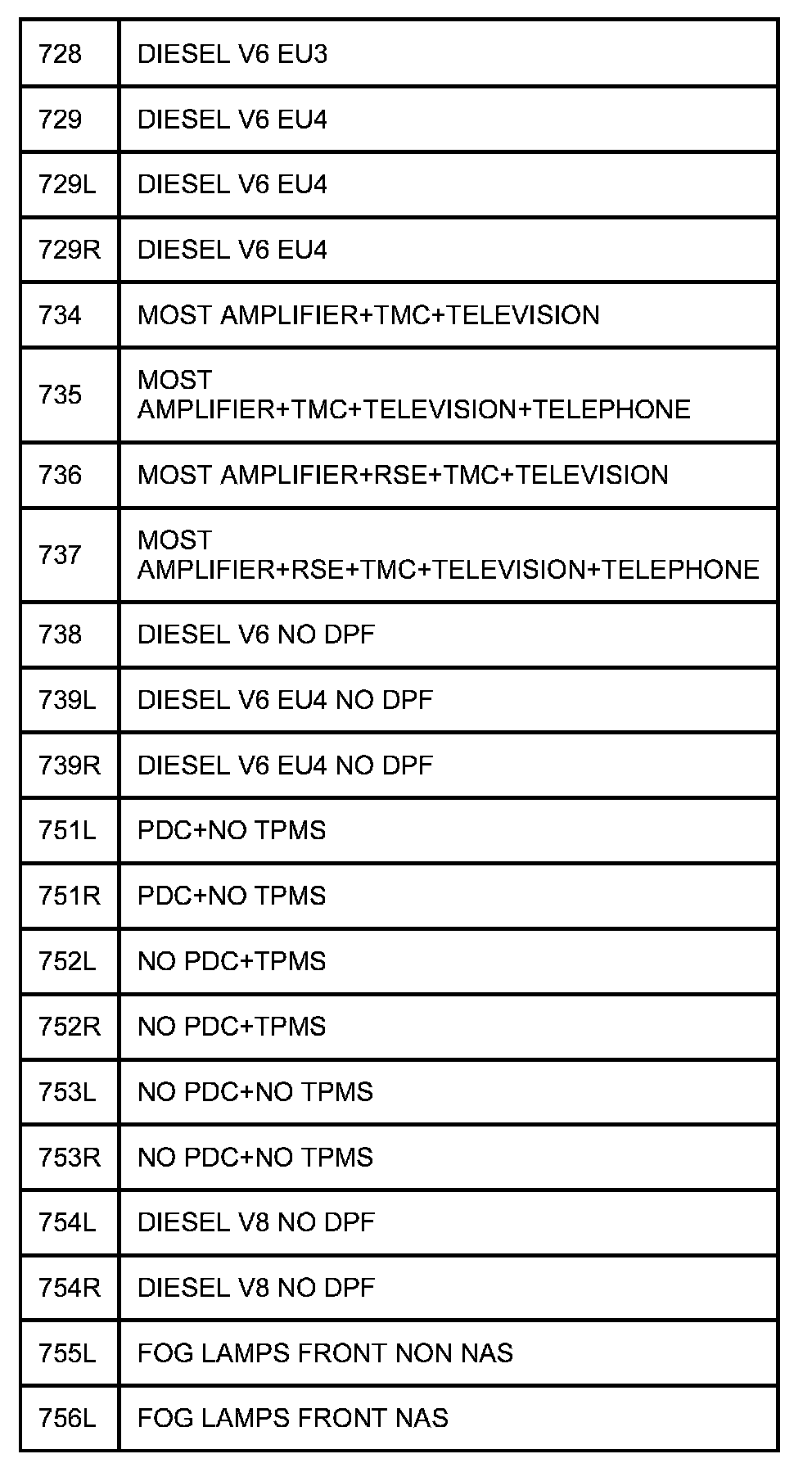

728-756L:




757-761R:
