Oil Temperature Sensor For ECM: Service and Repair

Oil Temperature Sensor

Service Repair No - 12.60.65

Removal
1. Disconnect the battery ground cable.
2. Remove the radiator access panel.
^ Remove the 4 bolts.

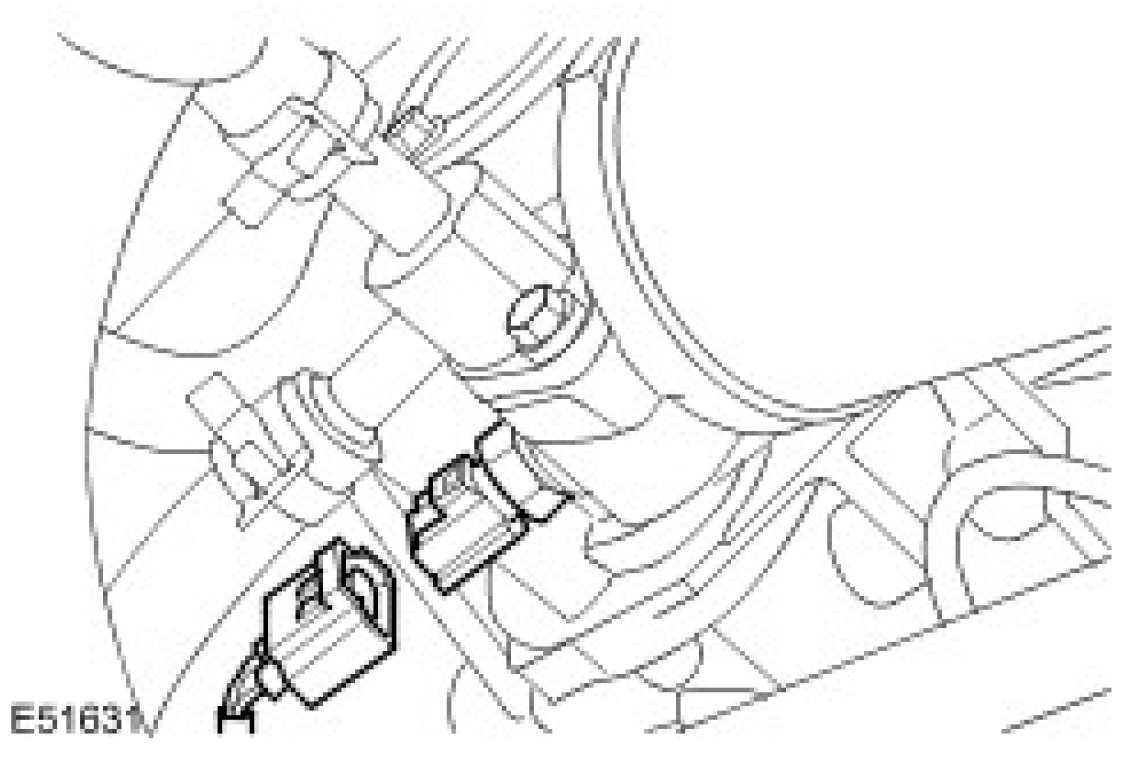

3. Remove the oil temperature sensor.
^ Disconnect the electrical connector.
^ Position a container to collect the fluid.

CAUTION: Before disconnecting or removing the components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.





Installation
1. To install, reverse the removal procedure.
^ Tighten the oil temperature sensor to 20 Nm (15 ft. lbs.).
^ Tighten the bolts to 10 Nm (7 ft. lbs.).

2. Check and top- up the engine oil.
