Cruise Control Module: Service and Repair

Speed Control Module

Removal
1. Disconnect the battery ground cable.
2. Remove the Dynamic Response module.

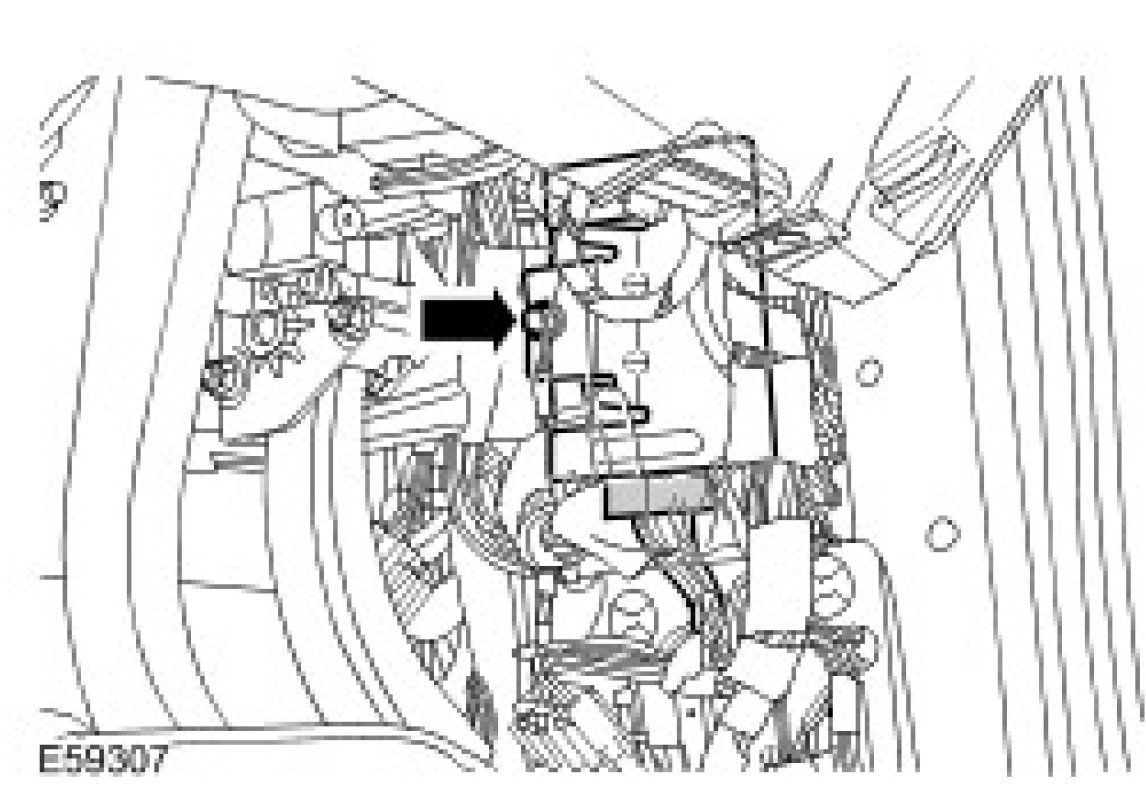

3. Remove the speed control module.
^ Loosen the bolt.
^ Release and disconnect the electrical connector.





Installation
1. Install the speed control module.
^ Connect and secure the electrical connector.
^ Tighten the bolt to 10 Nm (7 ft. lbs.).

2. Install the Dynamic Response module.
3. Connect the battery ground cable.
4. Program a new control module using T4.
