Temperature Control
To determine the amount of heat required, in the form of coolant flow through the heater, the ATC module compares the reference value with the heater temperature and incorporates a correction factor to compensate for changes of coolant flow rate with engine speed. From the resultant value the ATC module determines the open duration of the coolant valve and outputs the appropriate control signal. On the automatic system, separate values and output signals are generated for each coolant valve to produce the individual temperature control for the left-hand (LH) and right-hand (RH) sides of the passenger compartment.
When the temperature setting on the control panel is set to maximum, the ATC module signals the coolant valve to remain open. When the temperature setting on the control panel is set to minimum, the ATC module signals the coolant valve to remain closed.
On the automatic system, the minimum setting is over-ridden when the defrost program, maximum air conditioning (A/C), rest heating or FFBH (fuel fired booster heater) functions are selected.

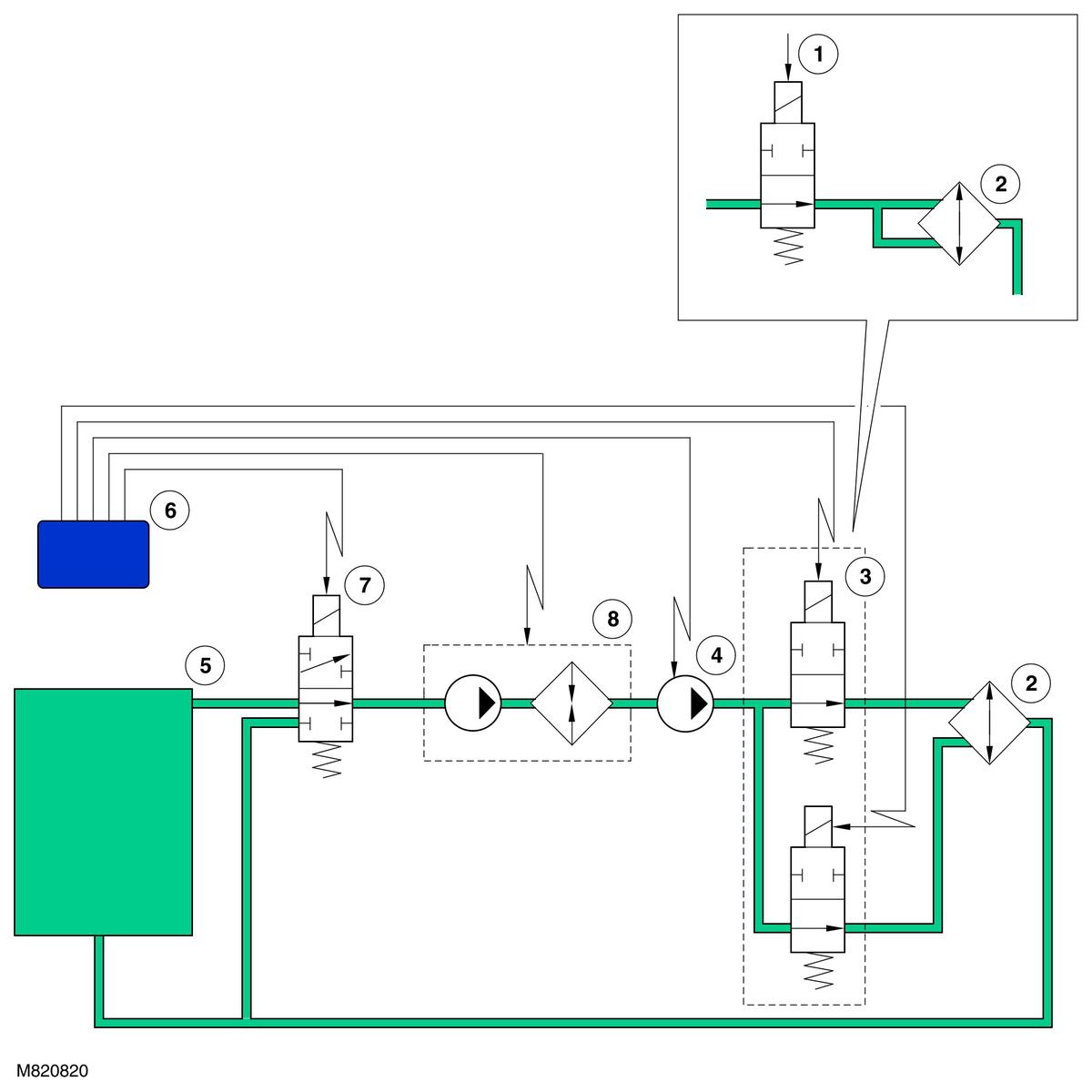

| Item Number | Description |
|---|---|
| 1 | Coolant valve (manual system) |
| 2 | Heater core |
| 3 | Coolant valves (automatic system) |
| 4 | Auxiliary coolant pump |
| 5 | Engine cooling system |
| 6 | ATC module |
| 7 | Changeover valve (where fitted) |
| 8 | FFBH unit (where fitted) |
