Home >> Land Rover >> 2008 >> Range Rover (LM) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ultrasonic Sensor, Antitheft >> Sensor-Volumetric

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

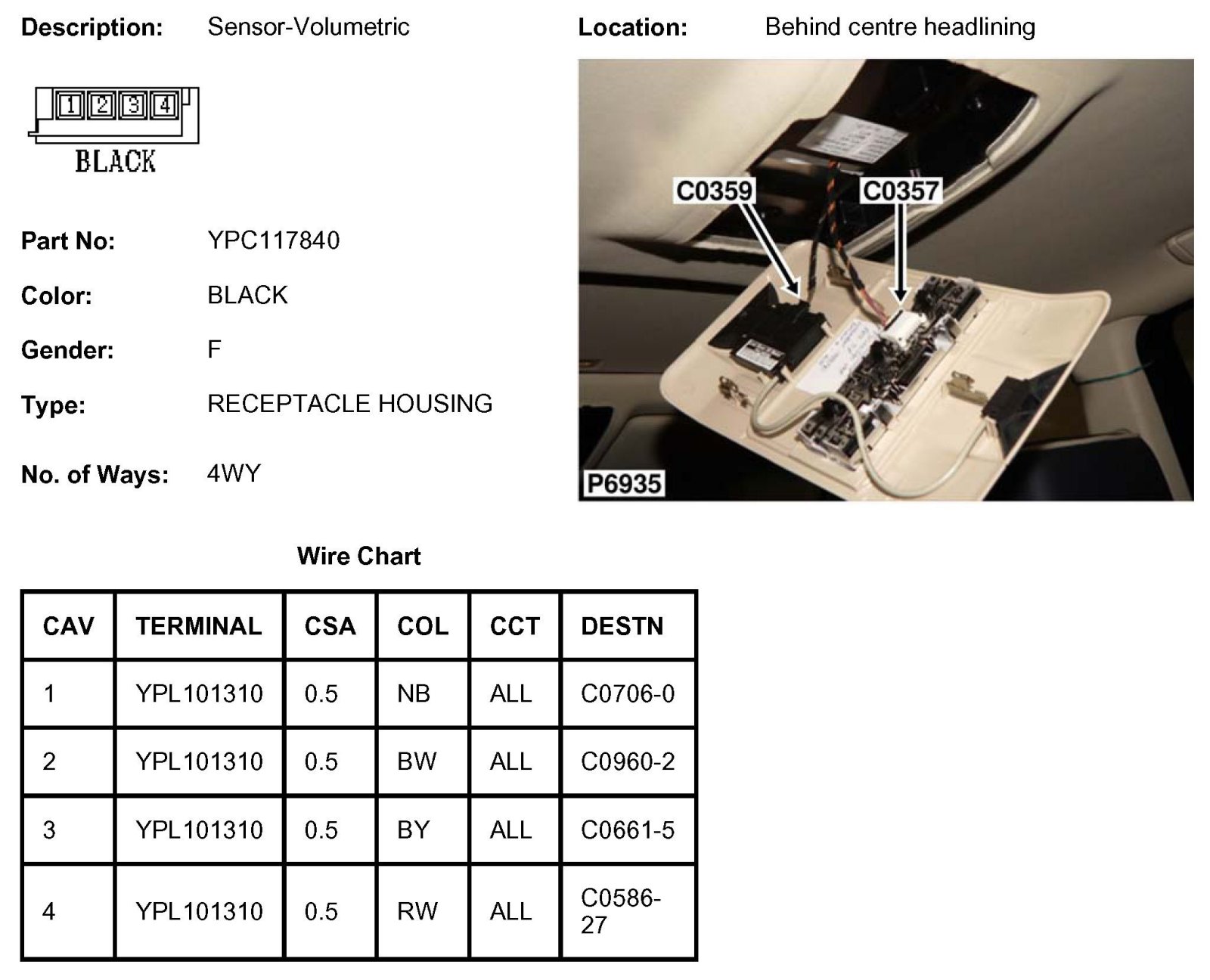

Sensor-Volumetric

C0359:
