Dynamic Response Module: Removal
NOTE:
The dynamic response module is always located on the driver's side of the vehicle.
- Remove the cowl side trim panel.
For additional information, refer to: COWL SIDE TRIM PANEL .
- Remove the closing trim panel.
- Release the clip.
- Remove the 2 screws.
- Disconnect the electrical connector.

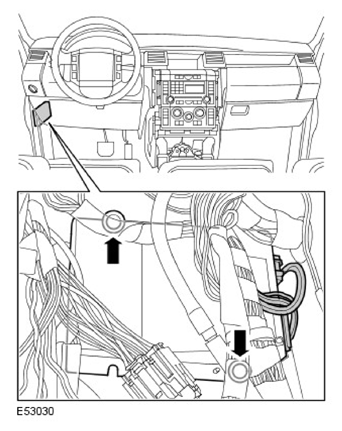

- Remove the dynamic response module.
- Remove the 2 bolts.
- Disconnect the 2 electrical connectors.
