Navigation Module: Service and Repair

Navigation System Digital Versatile Disc (DVD) Unit

Removal

NOTE: Removal steps in this procedure may contain installation details.

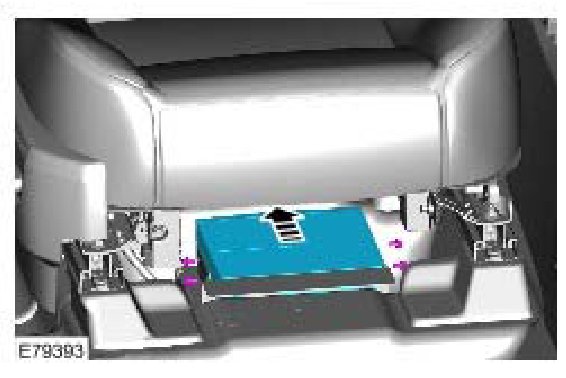

1. Torque: 6 Nm

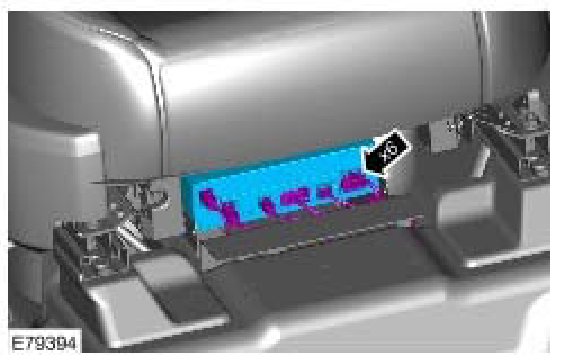

2. CAUTION:
^ Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.
^ Make sure that the optical connectors are clean and free of foreign material.

Installation
1. To install, reverse the removal procedure.
2. If a new component is to be installed, configure using Land Rover approved diagnostic equipment.
