Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature (ECT) Sensor

Service Repair No - 18.30.10

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Raise and support the vehicle.
2. Remove the intake manifold assembly.

CAUTION:
^ Be prepared to collect escaping fluids.
^ Note the fitted position of the seal.

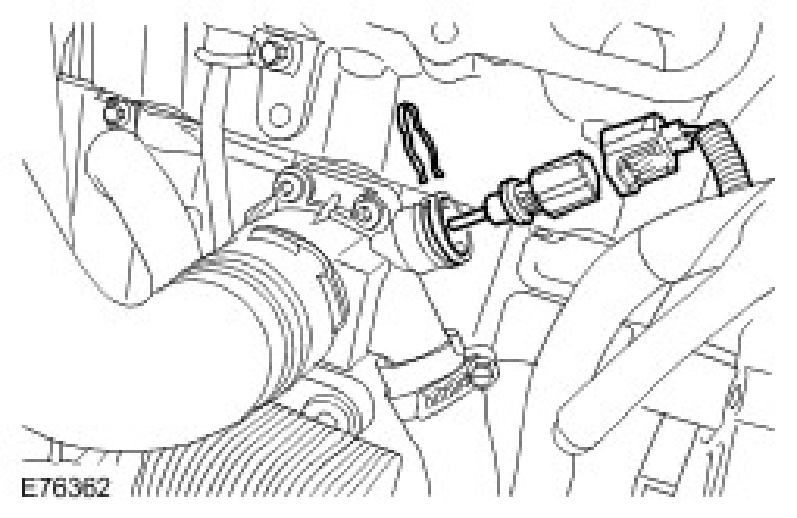

3. Remove the ECT sensor.





Installation

CAUTION: Make sure that the mating faces are clean and free of foreign material.

1. To install, reverse the removal procedure.
