Rear Door Module (RDM)



Rear Door Module (RDM)

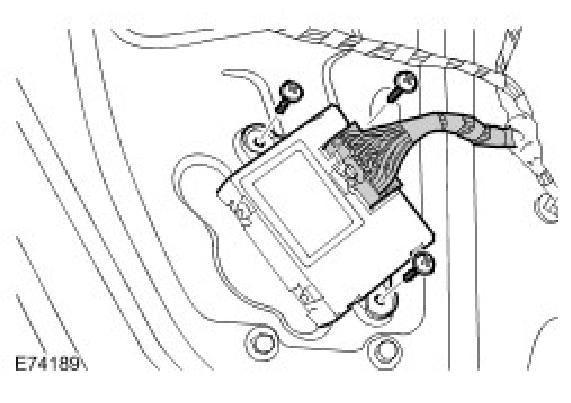

Removal
1. Disconnect the battery ground cable.
2. Remove the rear door trim panel.





Installation
1. To install, reverse the removal procedure.
2. Connect the battery ground cable.
3. If a new component has been installed, configure using Land Rover approved diagnostic equipment.
