Headlamp Alignment Control Module: Service and Repair



Headlamp Leveling Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the glove compartment.

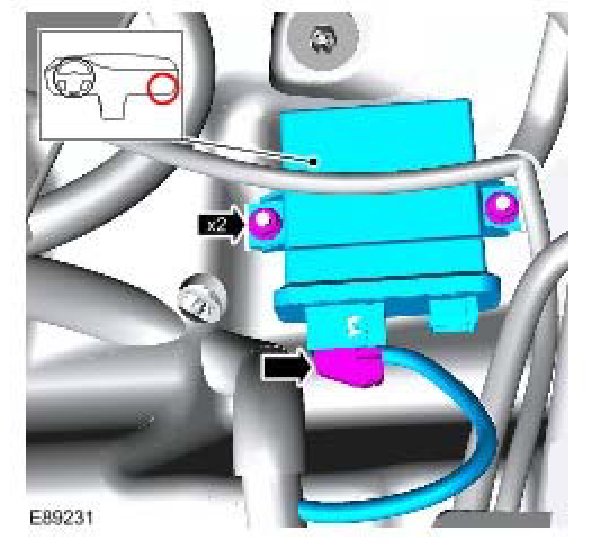

2. Torque: 7 Nm





Installation
1. To install, reverse the removal procedure.
2. Using the Land Rover approved diagnostic system, calibrate a new module.
