Fuse Box Locations

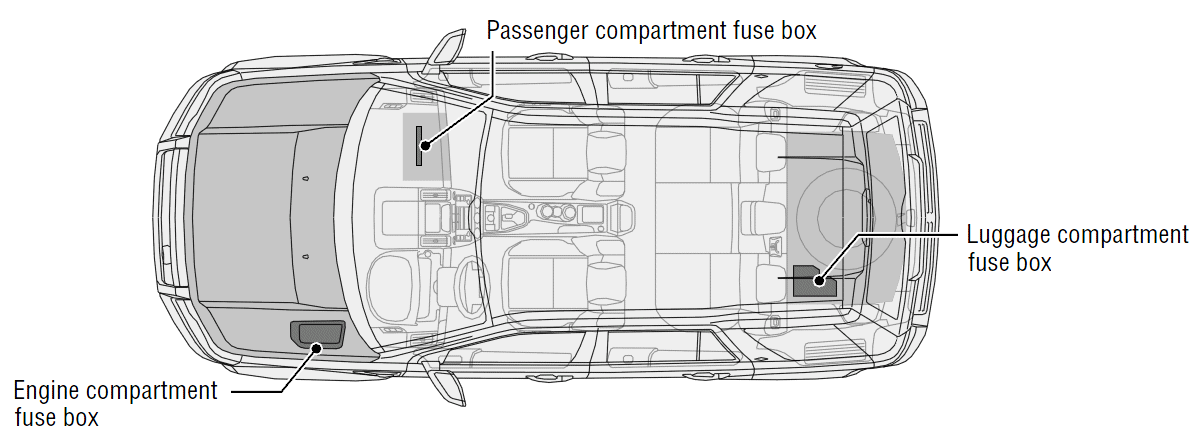

Fig 1: Locating Engine, Passenger, & Luggage Compartment Fuse Boxes
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
