Module-Rear Seat-Entertainment
Module-Rear Seat-Entertainment

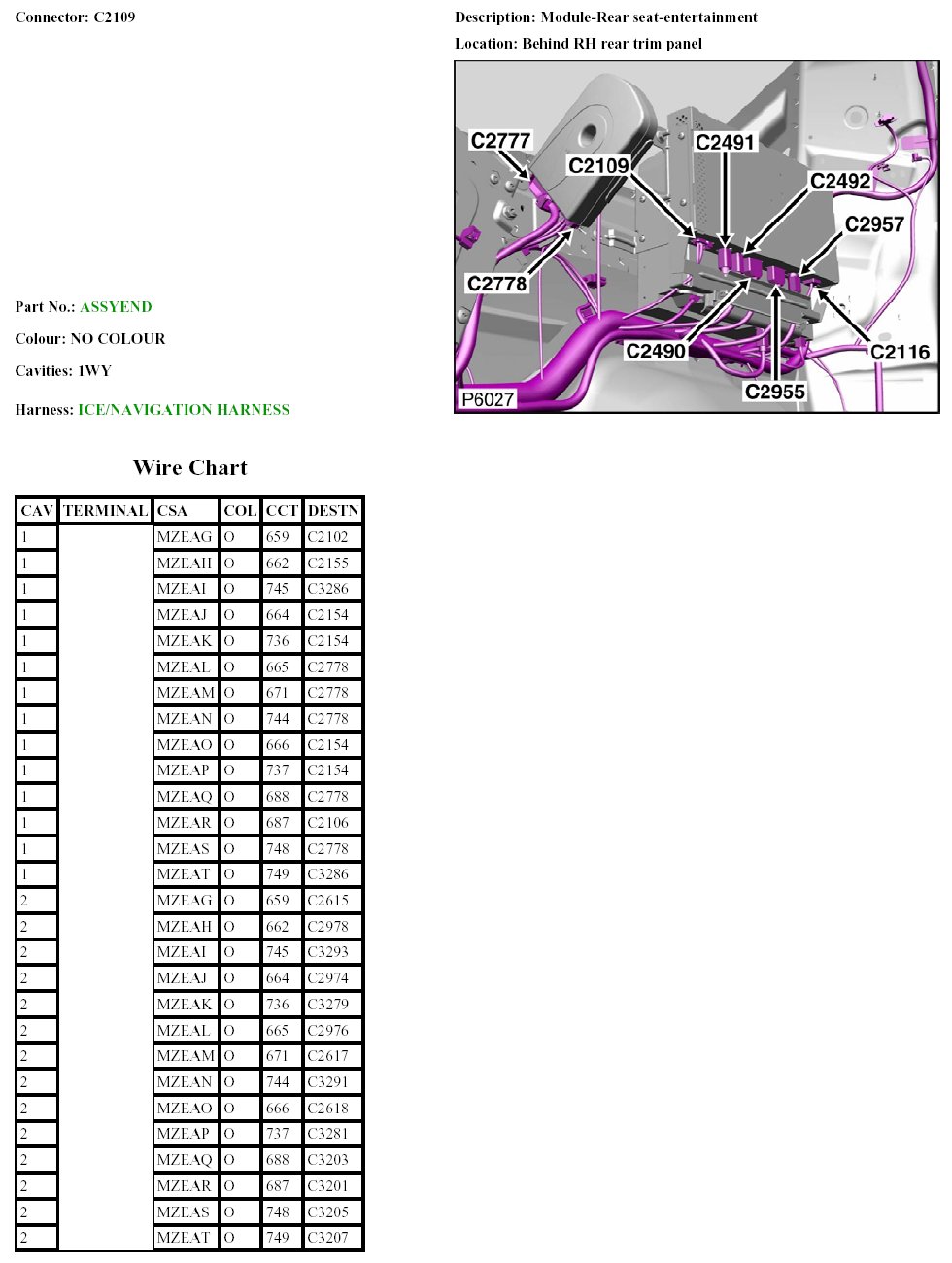

C2109:

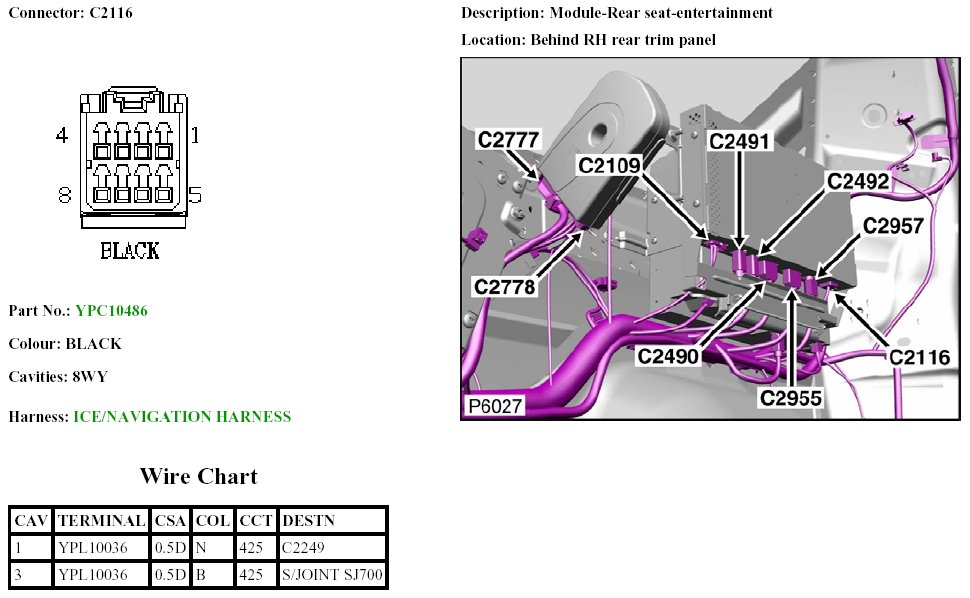

C2116:

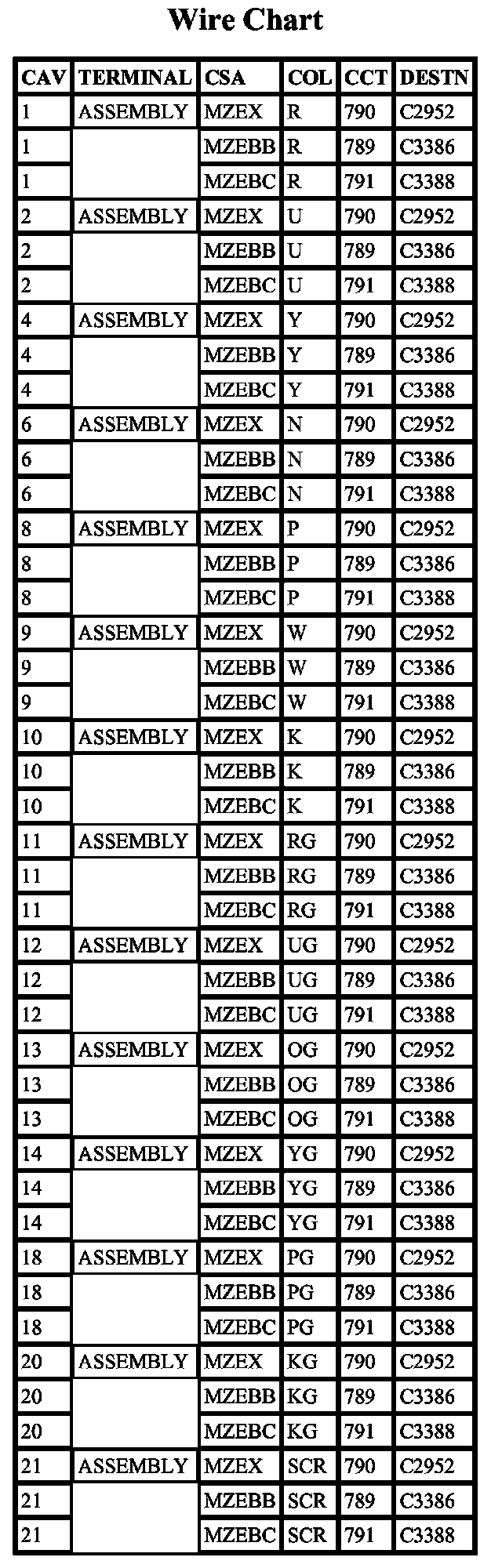

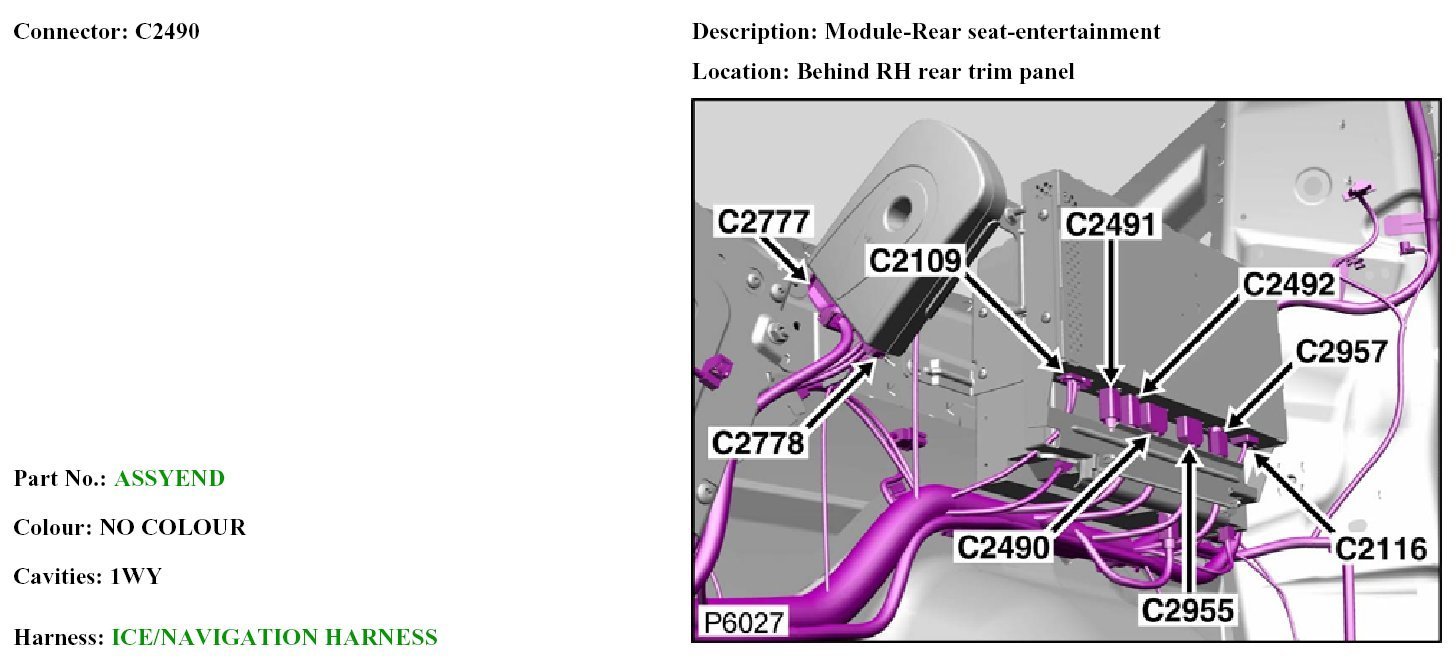

C2490 (Part 1):
C2490 (Part 2):

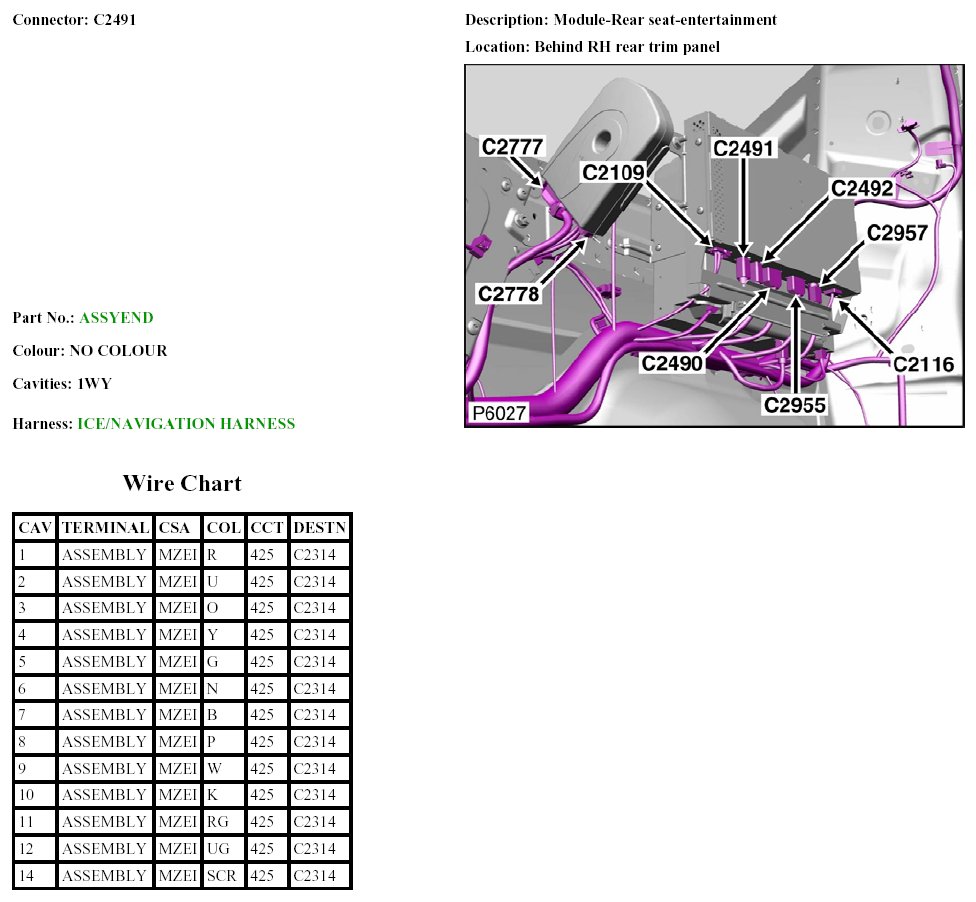

C2491:

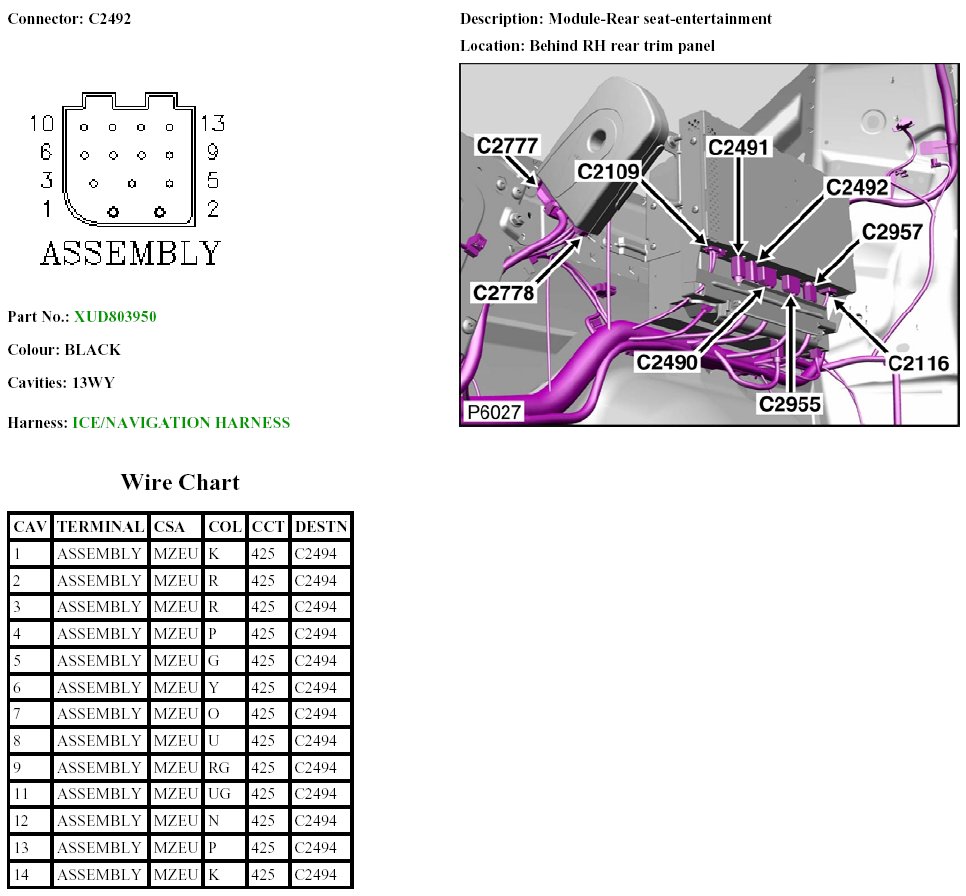

C2492:

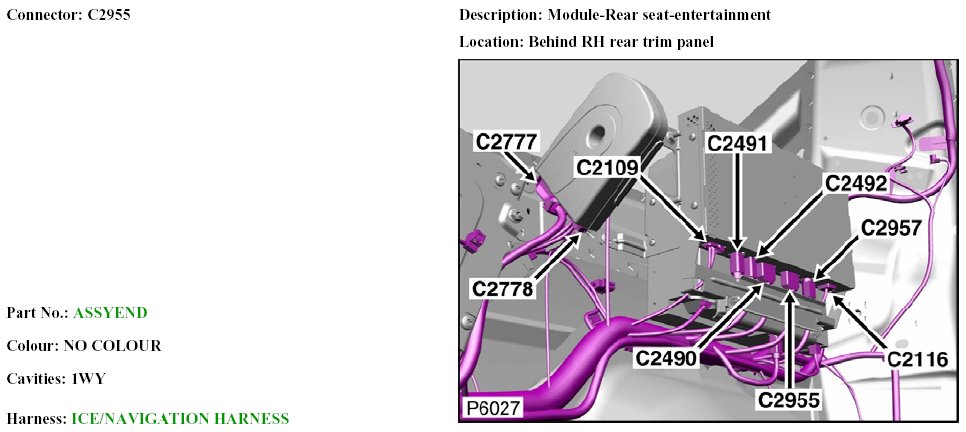

C2955 (Part 1):

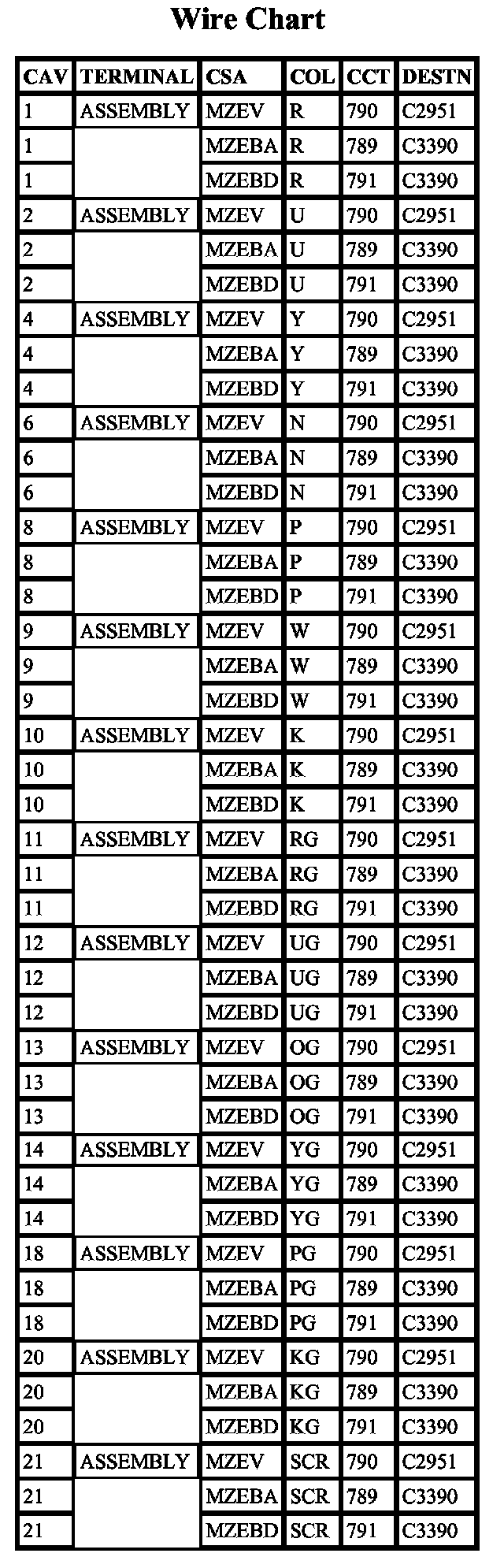

C2955 (Part 2):

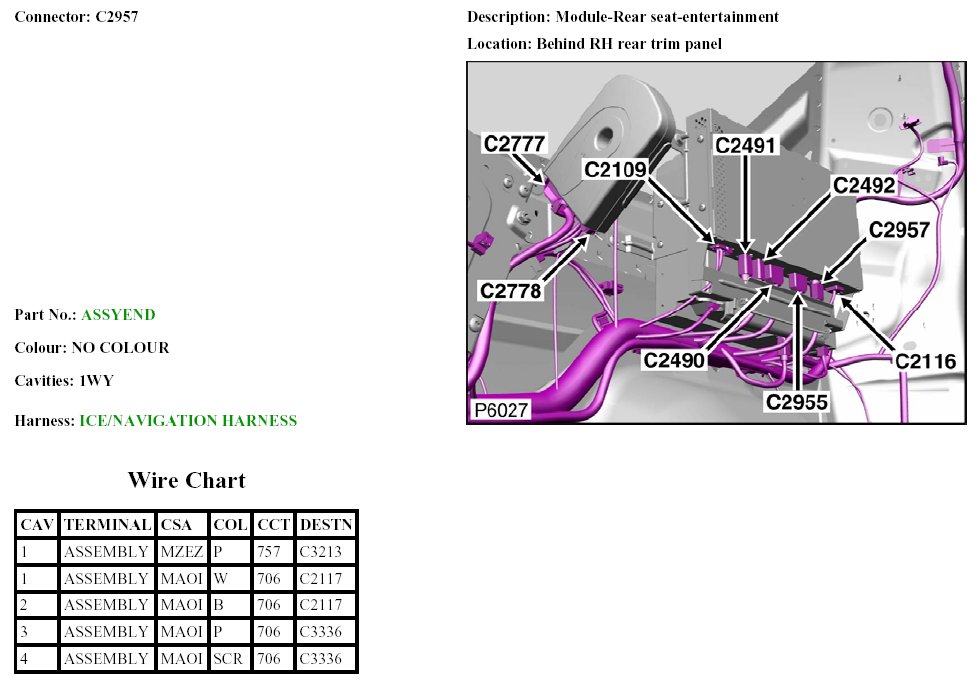

C2957:
