Land Rover
>>
2009
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp Alignment Sensor
>>
Sensor-Height-Rear-RH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

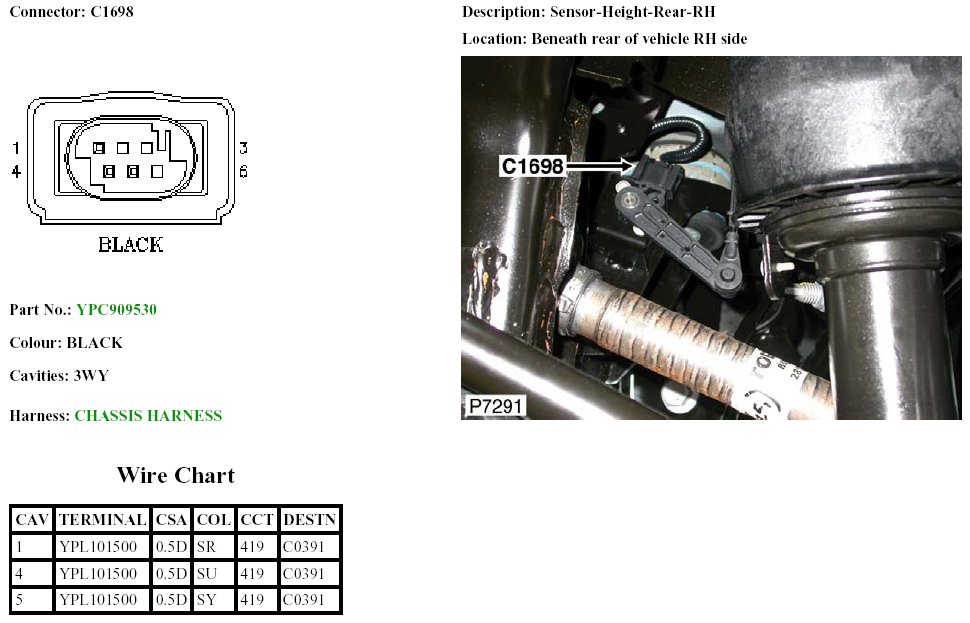

Sensor-Height-Rear-RH
Sensor-Height-Rear-RH
C1698:
