Suspension Control Module

Air Suspension Control Module

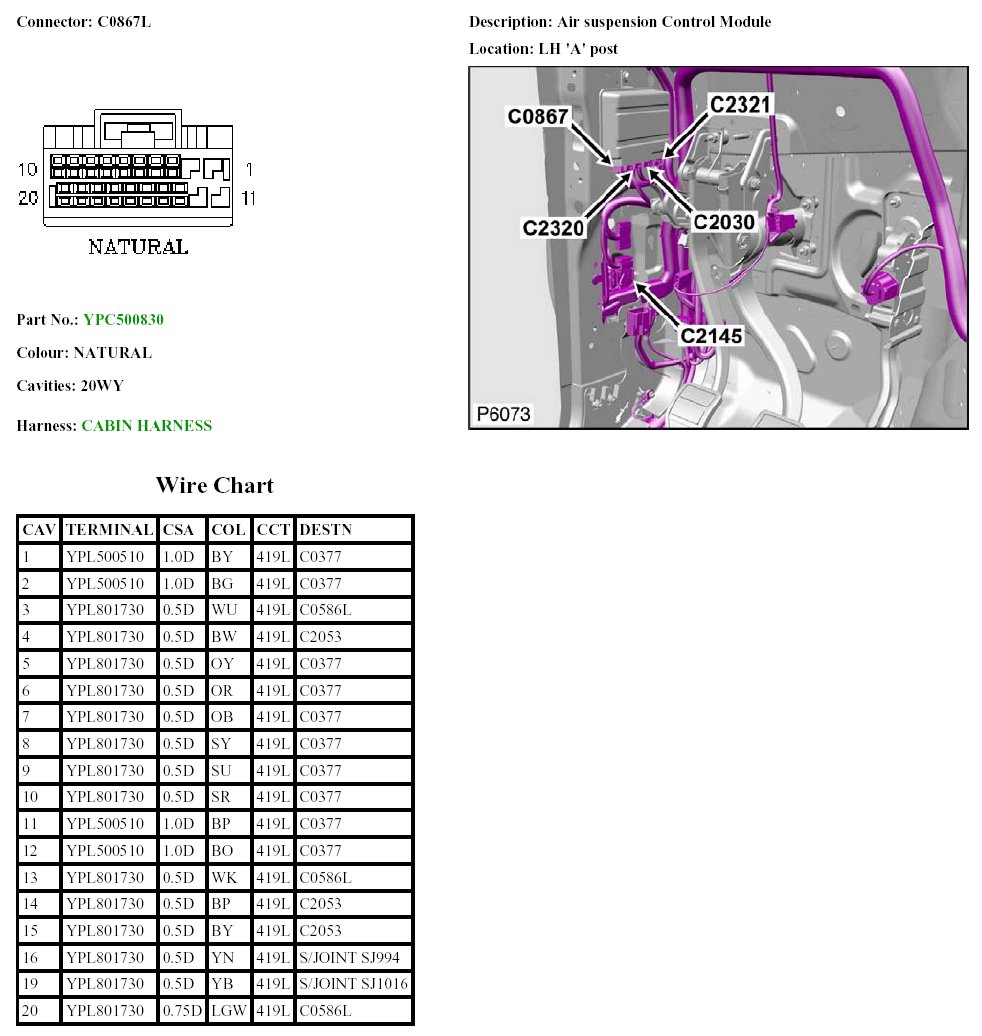

C0867L:

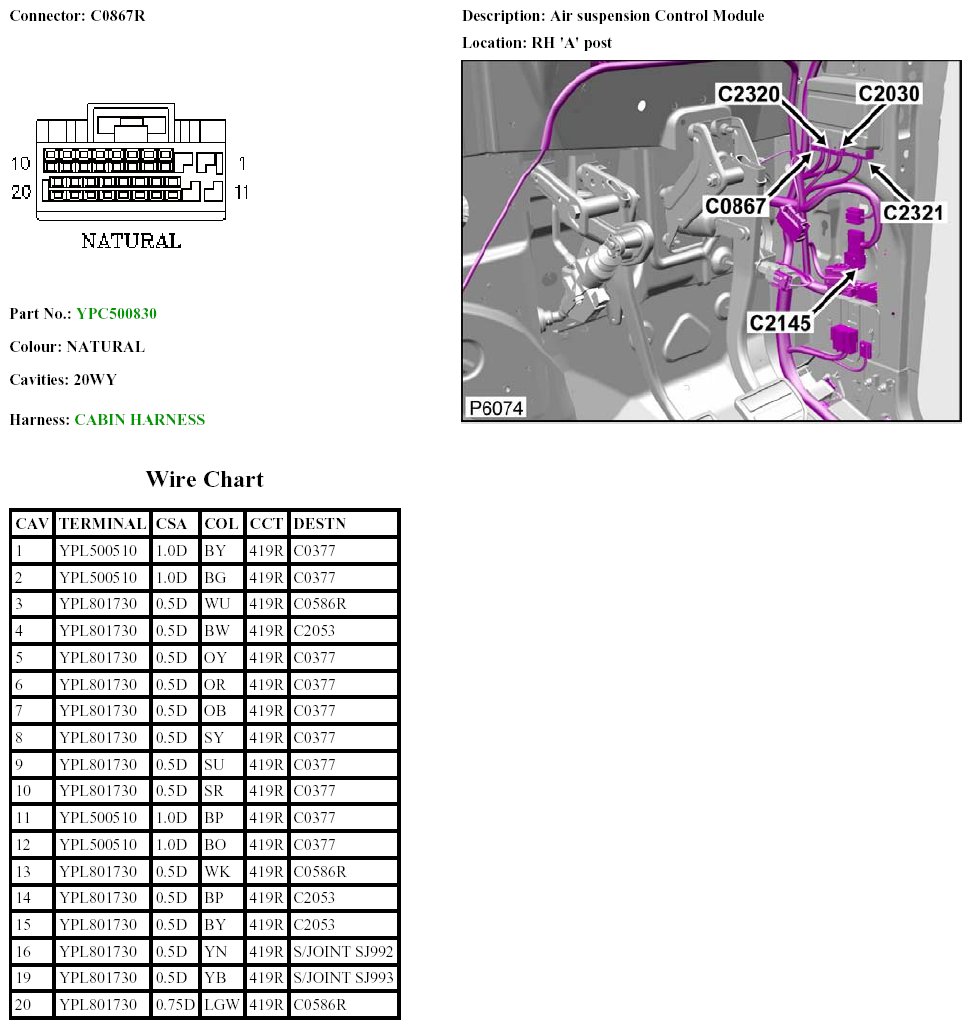

C0867R:

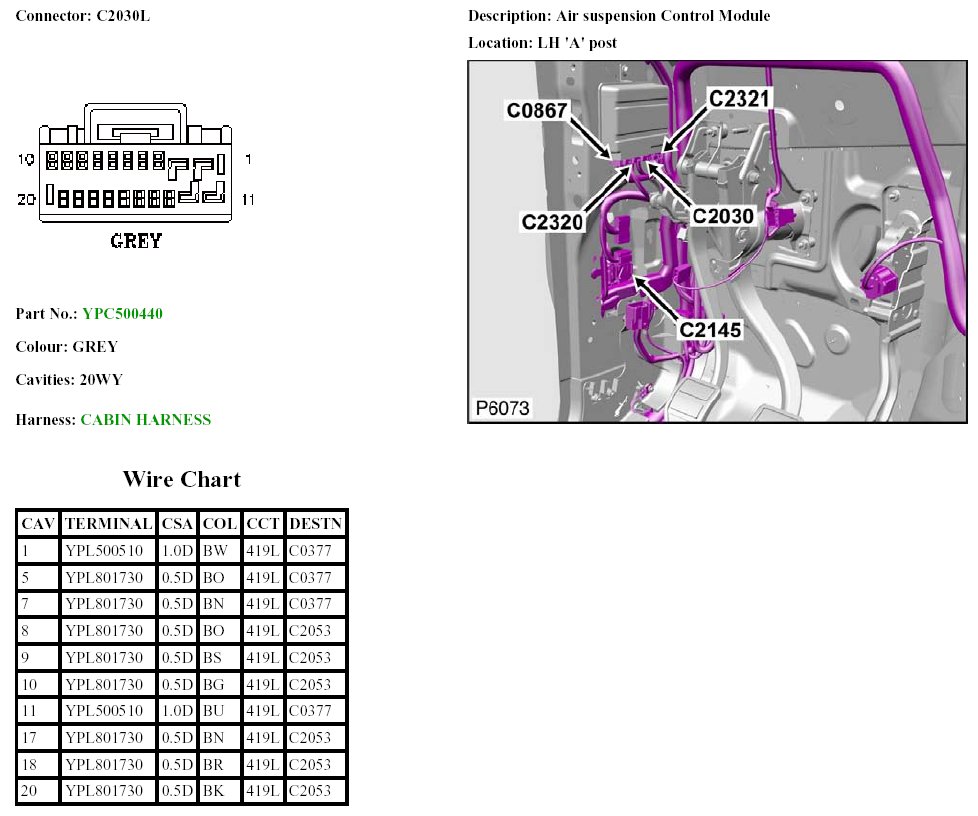

C2030L:

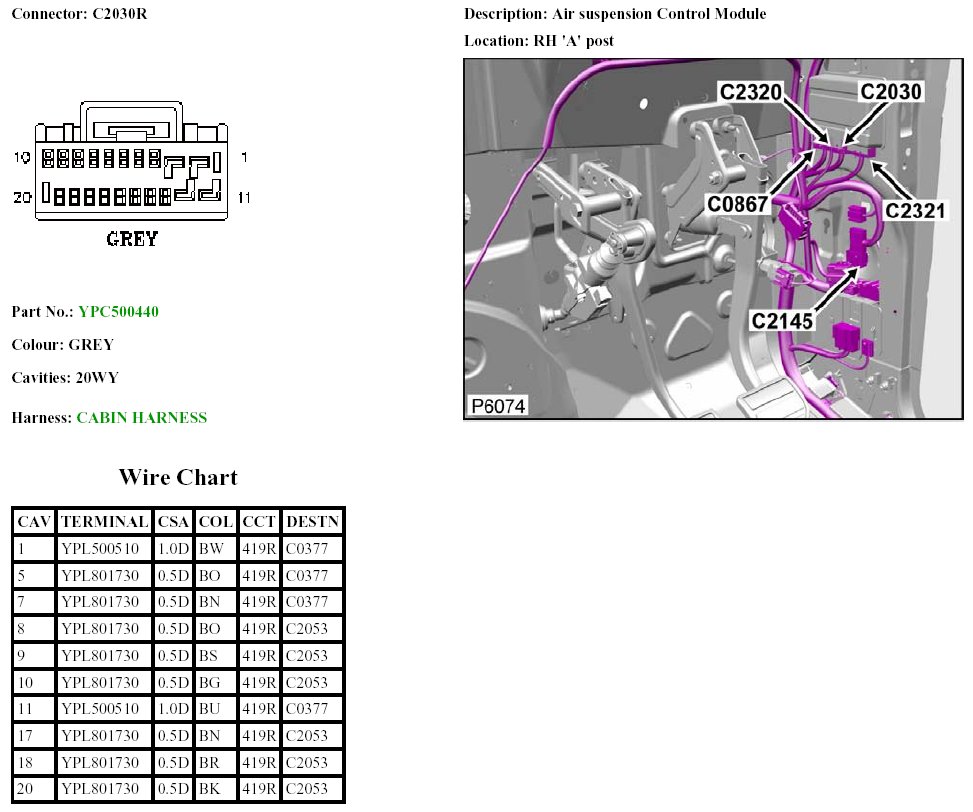

C2030R:

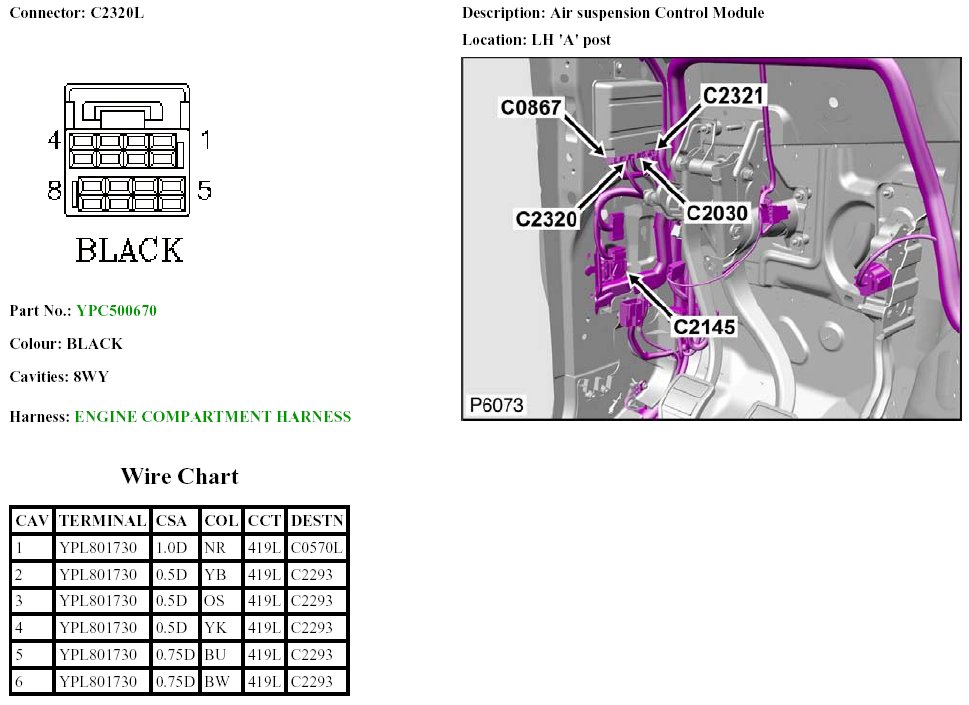

C2320L:

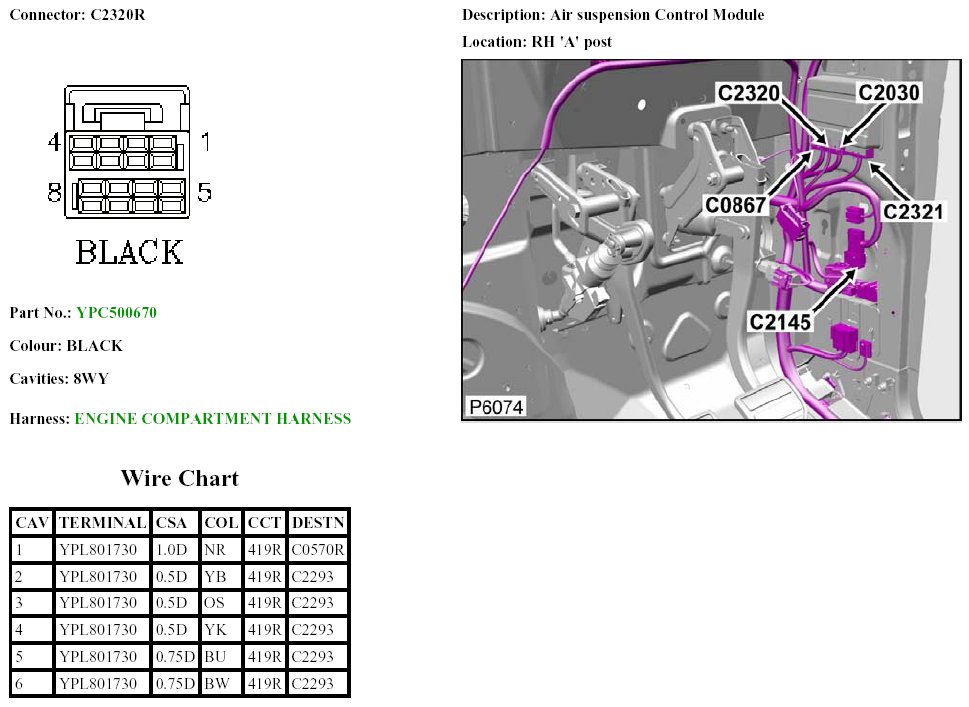

C2320R:

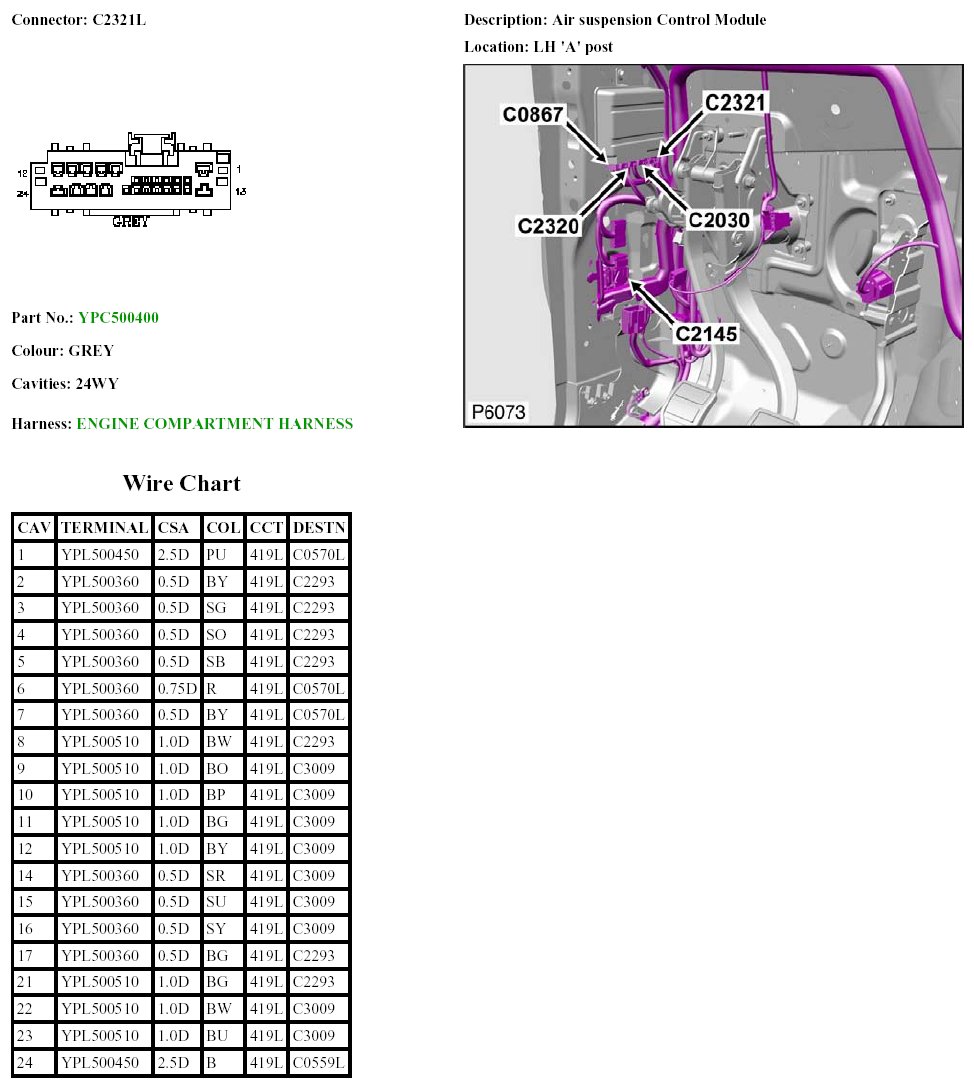

C2321L:

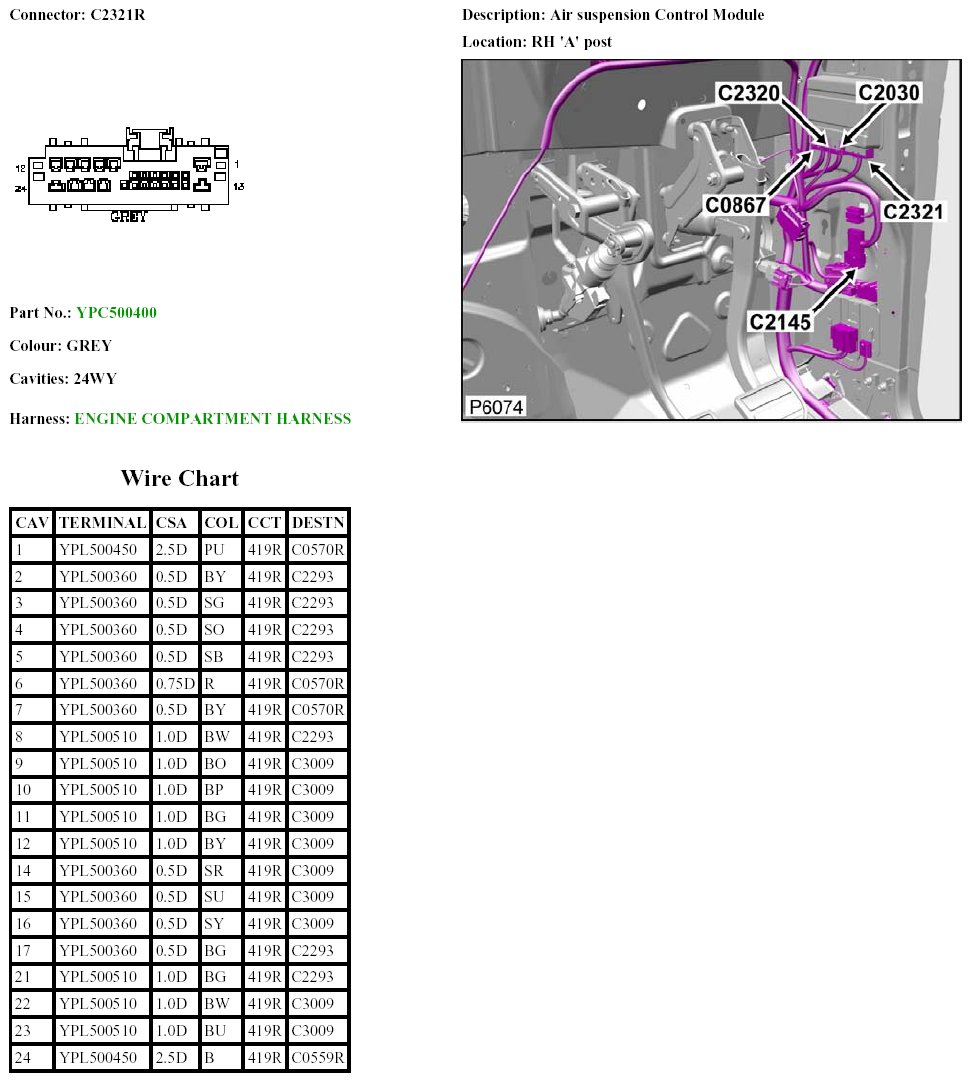

C2321R:
