Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Parking Assist Control Module

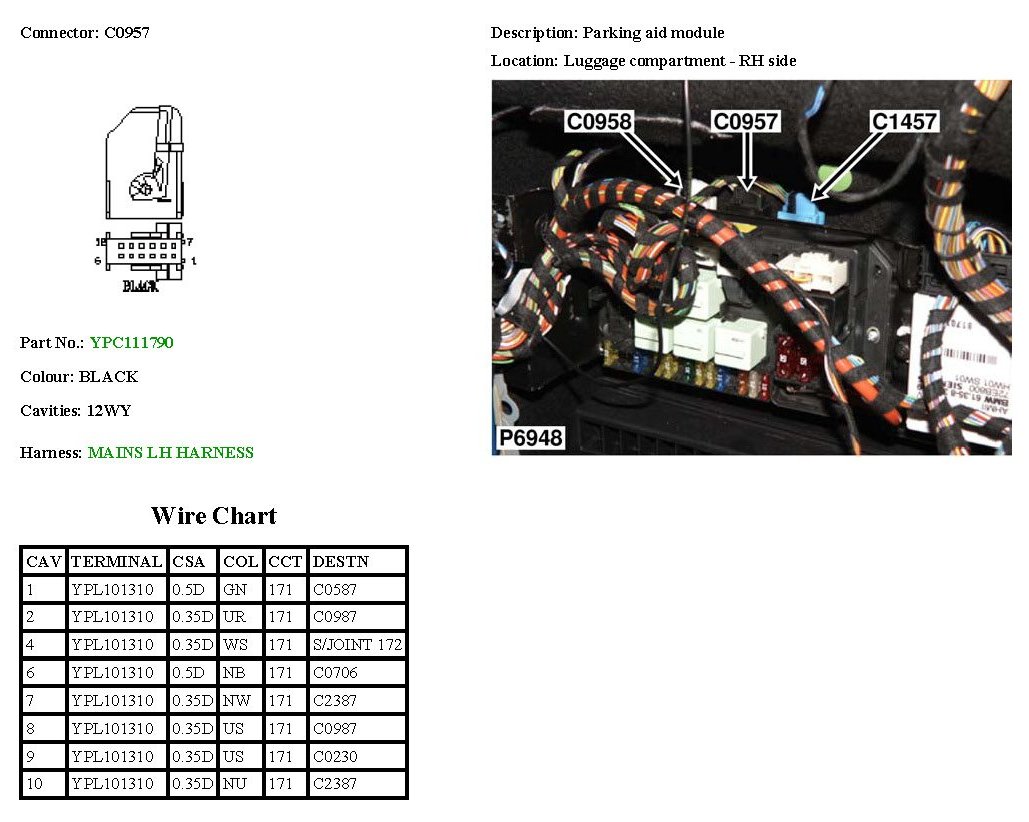

C0957:

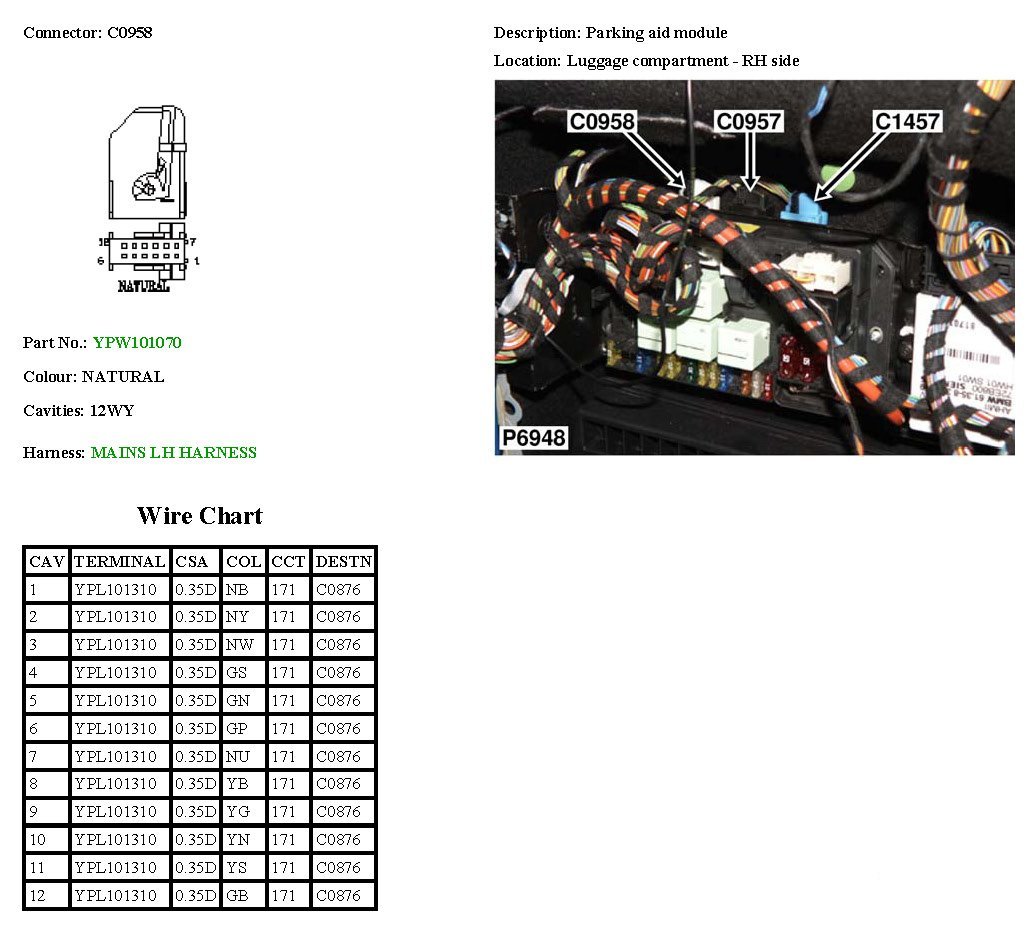

C0958:

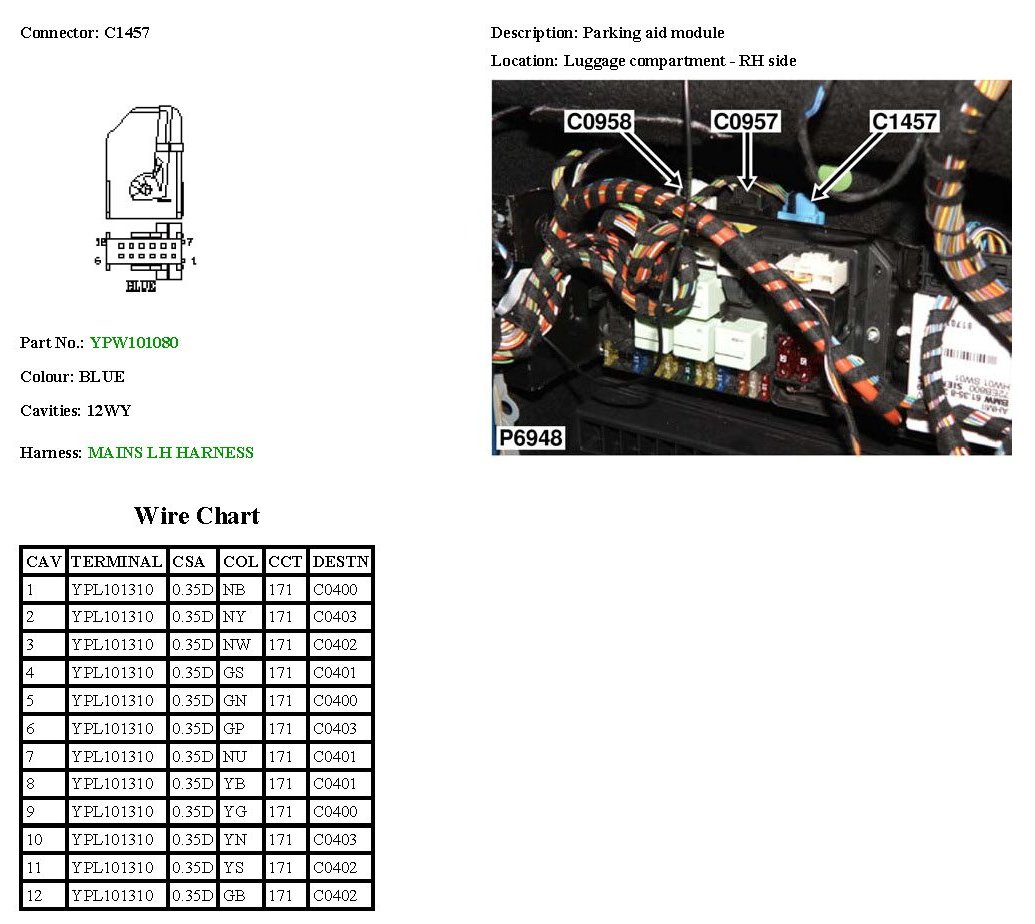

C1457:
