Lamp Control Module: Service and Repair

Lamp Outage Module

Removal
1. Remove the RH cowl side trim panel.

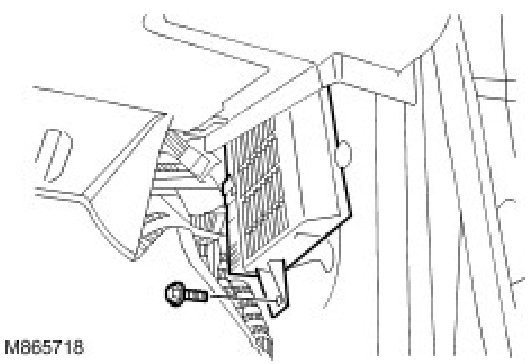

2. Release the lamp outage module.
- Remove the bolt.

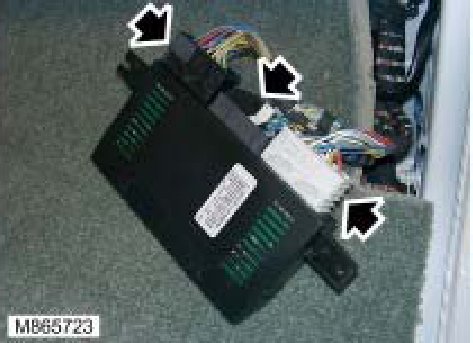

3. Remove the lamp outage module.
- Disconnect the 3 electrical connectors.







Installation
1. Install the lamp outage module.
- Connect the electrical connectors.
- Install the bolt.

2. Install the RH cowl side trim panel.
