Oil Pressure Sensor: Service and Repair

Engine Oil Pressure (EOP) Sensor

Removal

CAUTION: Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

1. Disconnect the battery ground cable.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Raise and support the vehicle.
3. Remove the radiator splash shield.

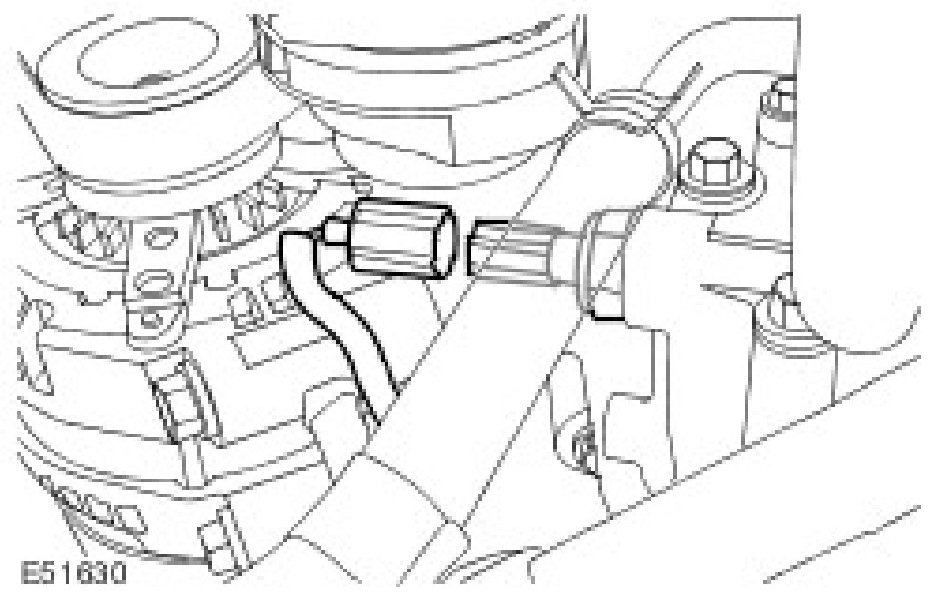

4. Remove the oil pressure sensor.
^ Disconnect the electrical connector.
^ Position a container to collect the fluid.





Installation
1. Install the oil pressure sensor.
^ Clean the components.
^ Tighten the oil pressure sensor to 12 Nm (9 ft. lbs.).
^ Connect the electrical connector.

2. Install the radiator splash shield.
3. Connect the battery ground cable.
4. Check and top-up the engine oil.
