System Specifications

Specifications

Sealers





Lubricant - UK, Europe and ROW - Not NAS/Japan








Capacity

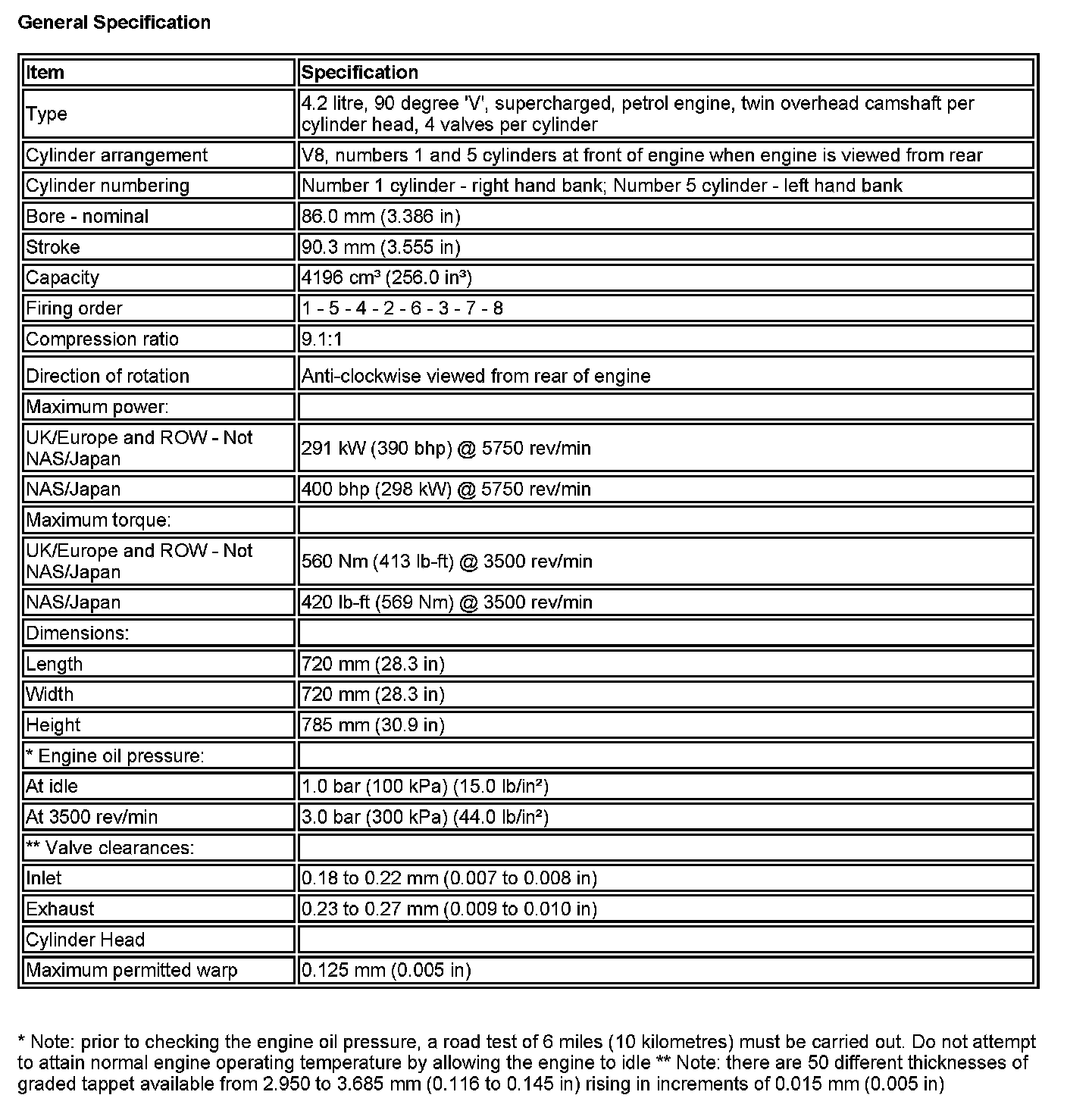

General Specification

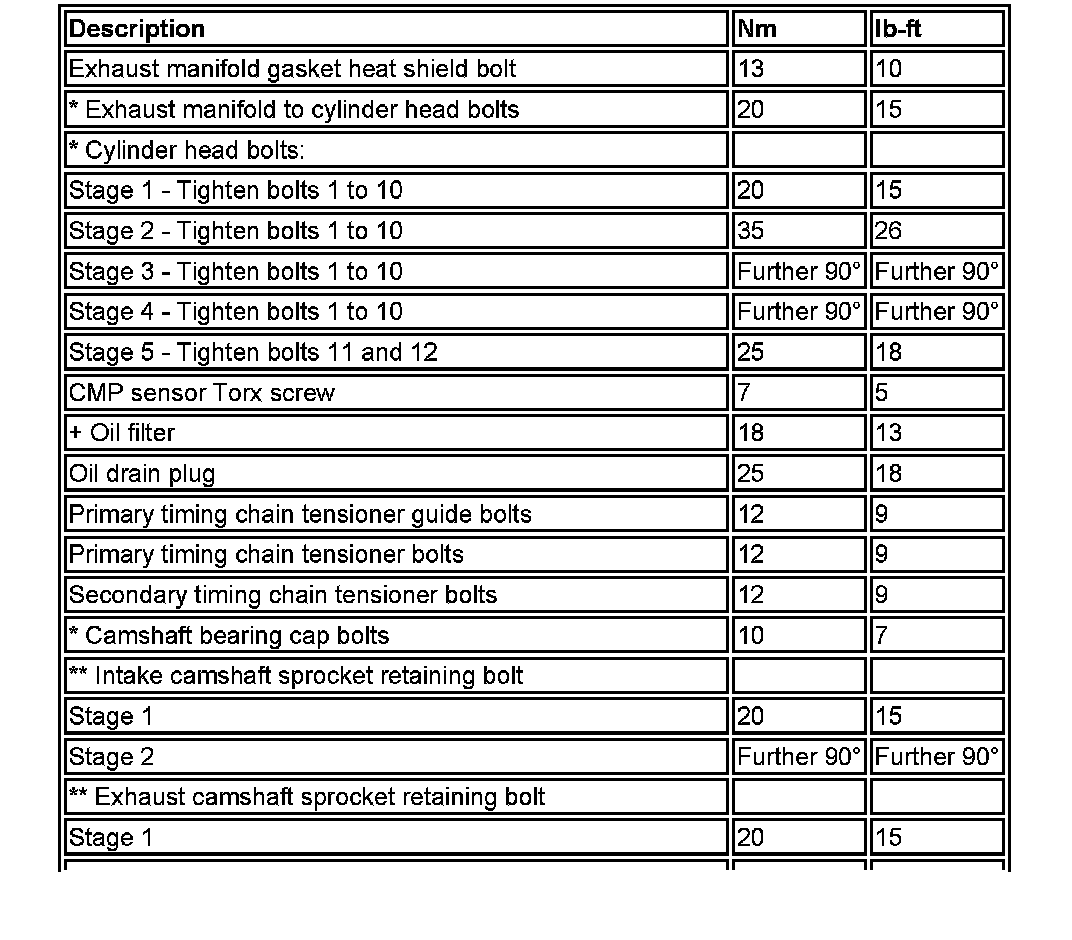

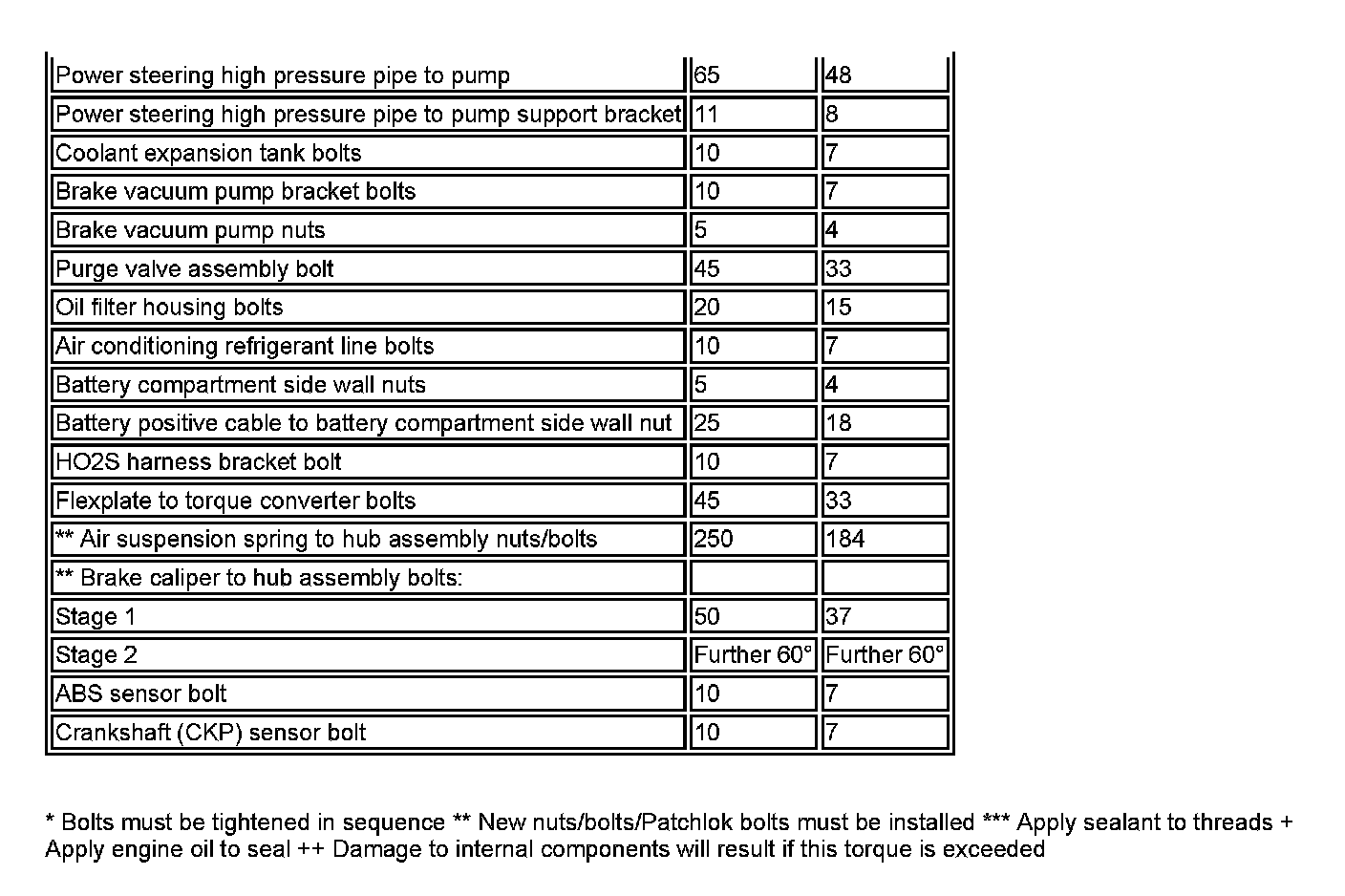

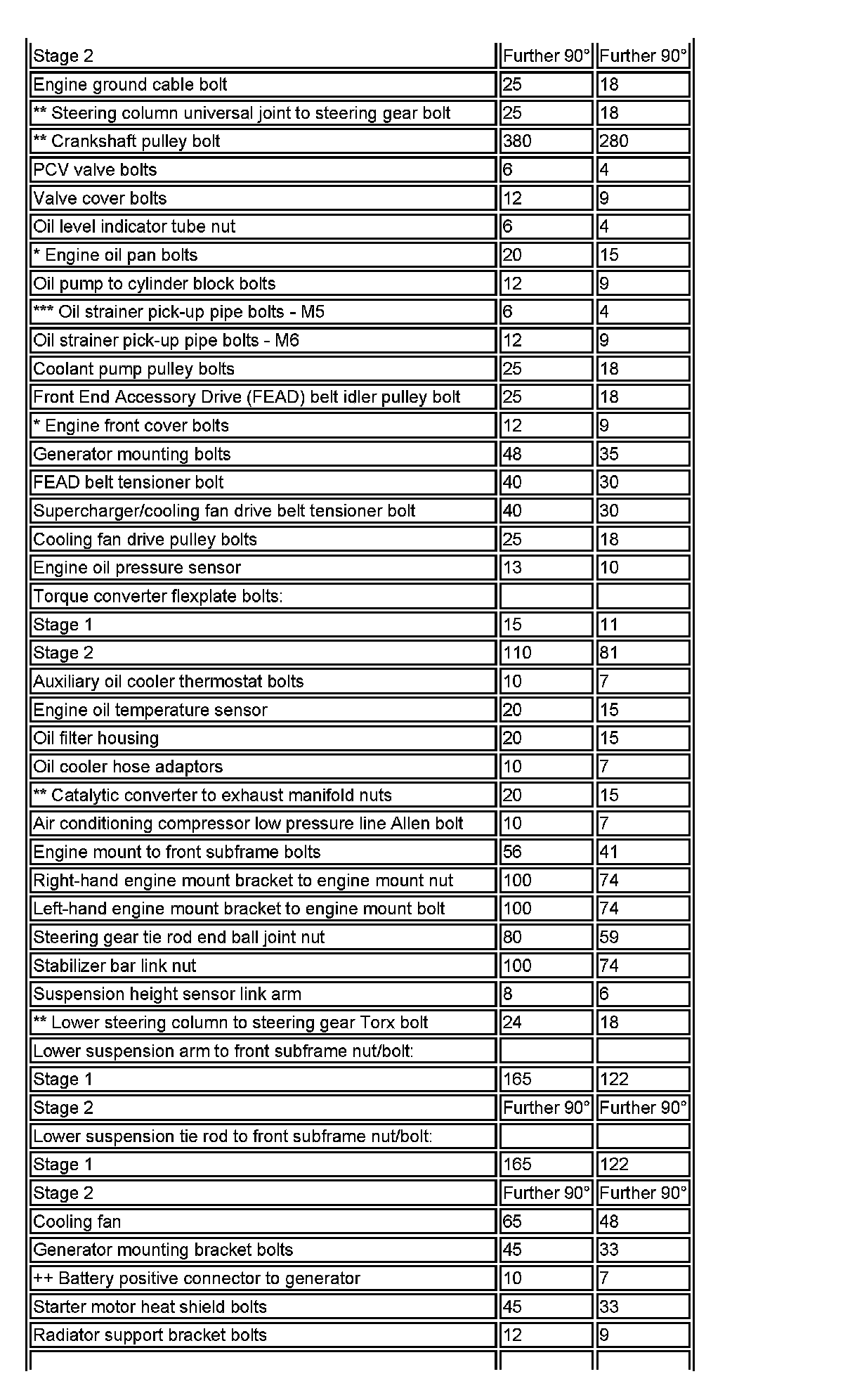

Tightening Torques

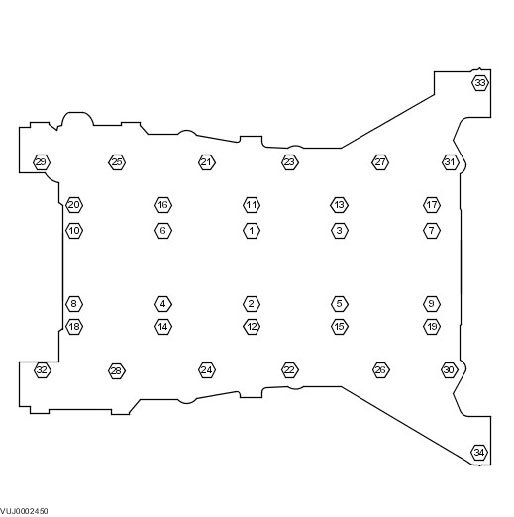

Crankshaft Main Bearing Carrier

Tighten the retaining bolts in the sequence shown

Stage 1: Bolts 21 to 32 15 Nm (11 ft. lbs.)
Stage 2: Bolts 33 to 34 15 Nm (11 ft. lbs.)
Stage 3: Bolts 1 to 10 25 Nm (18 ft. lbs.)
Stage 4: Bolts 11 to 20 15 Nm (11 ft. lbs.)
Stage 5: Bolts 1 to 10 35 Nm (26 ft. lbs.) + 135 degrees
Stage 6: Bolts 11 to 20 20 Nm (15 ft. lbs.) + 150 degrees
Stage 7: Bolts 21 to 32 20 Nm (15 ft. lbs.) + 90 degrees
Stage 8: Bolts 33 to 34 20 Nm (15 ft. lbs.) + 150 degrees
Stage 9: Center punch each of the bolt heads to indicate it has been reused
