Module-Rear Seat-Entertainment

Module-Rear Seat-Entertainment

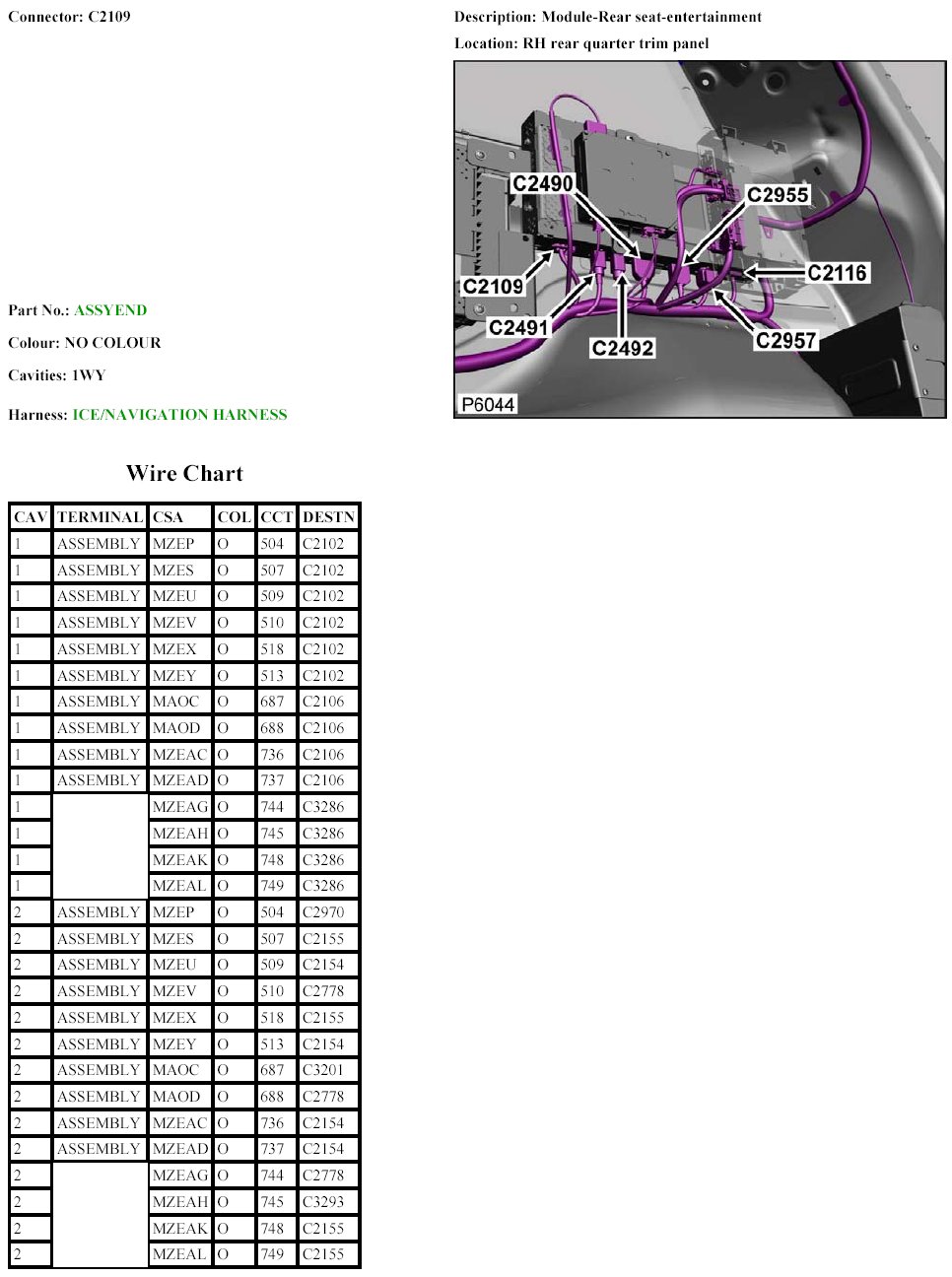

C2109:

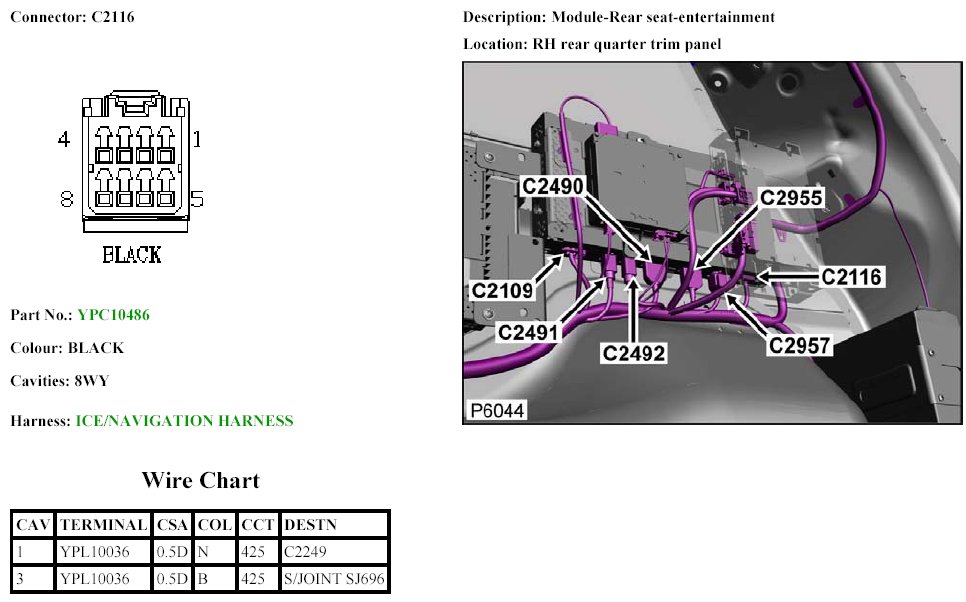

C2116:




C2490:

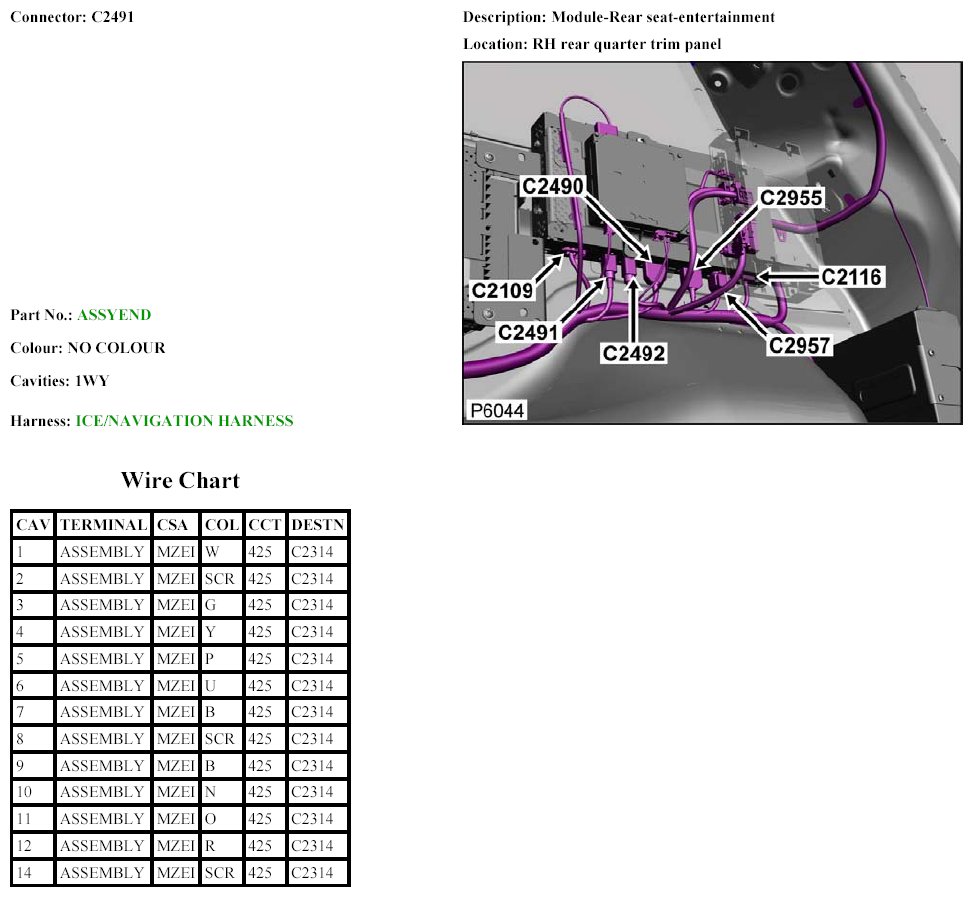

C2491:

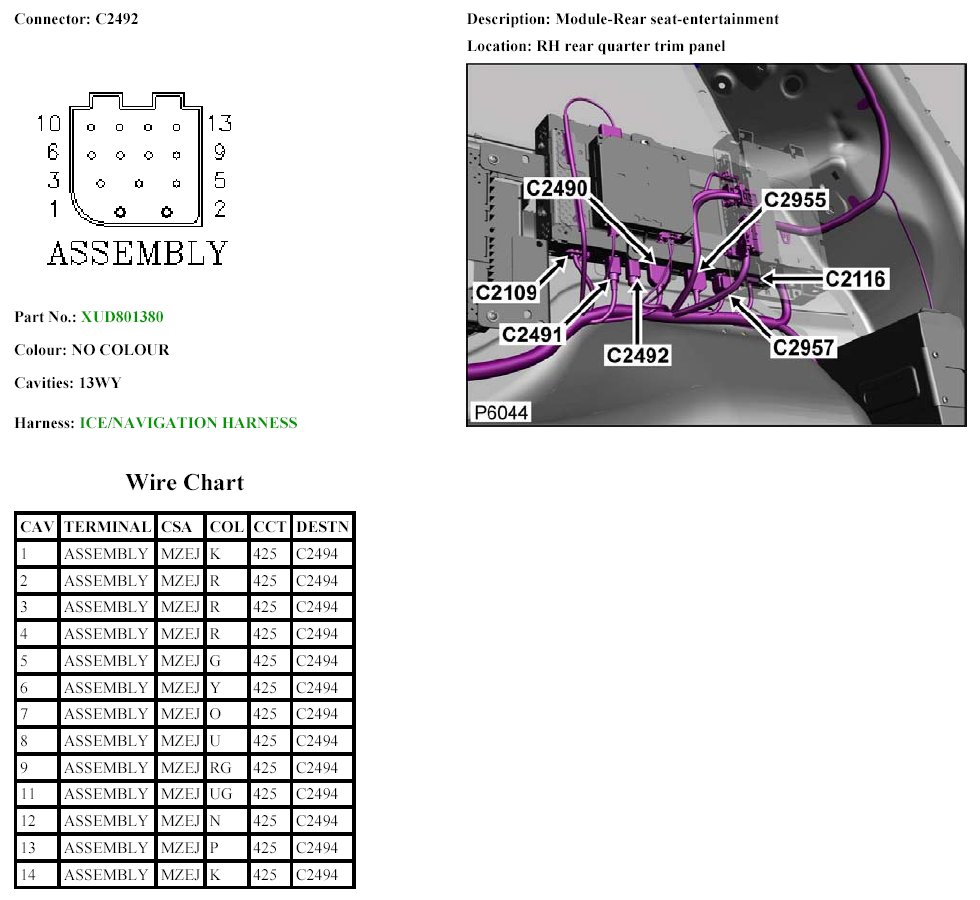

C2492:

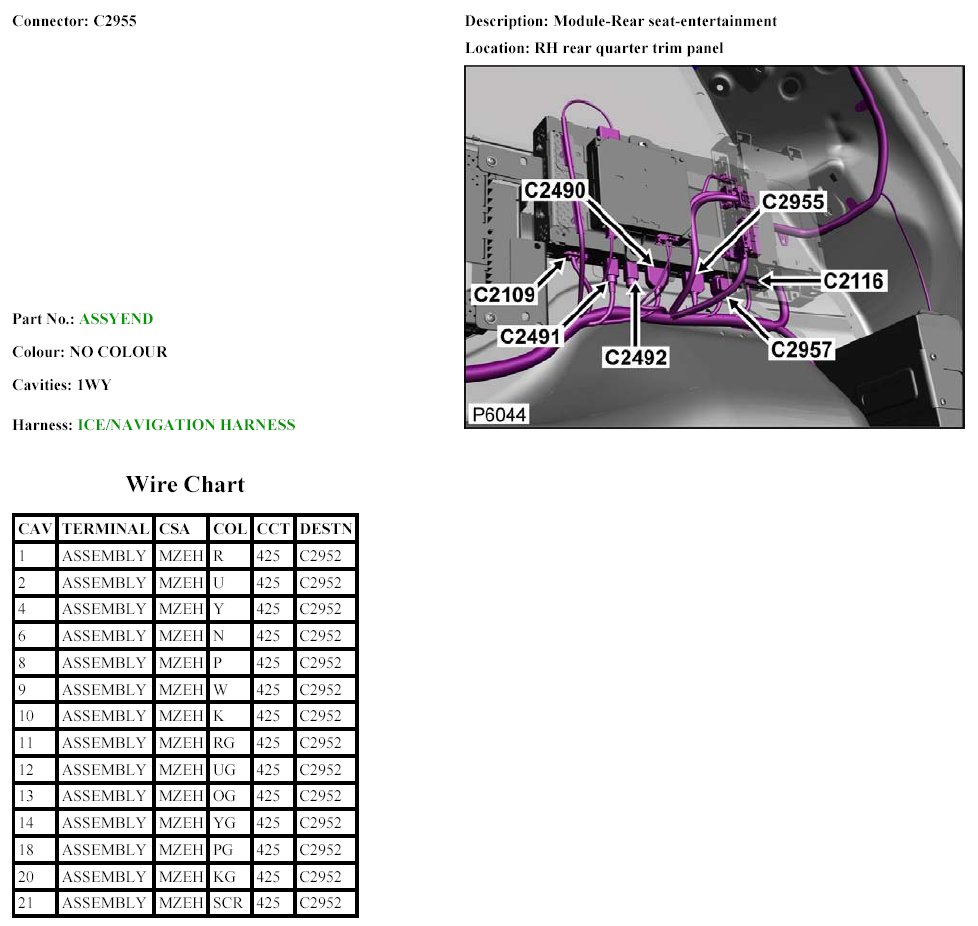

C2955:

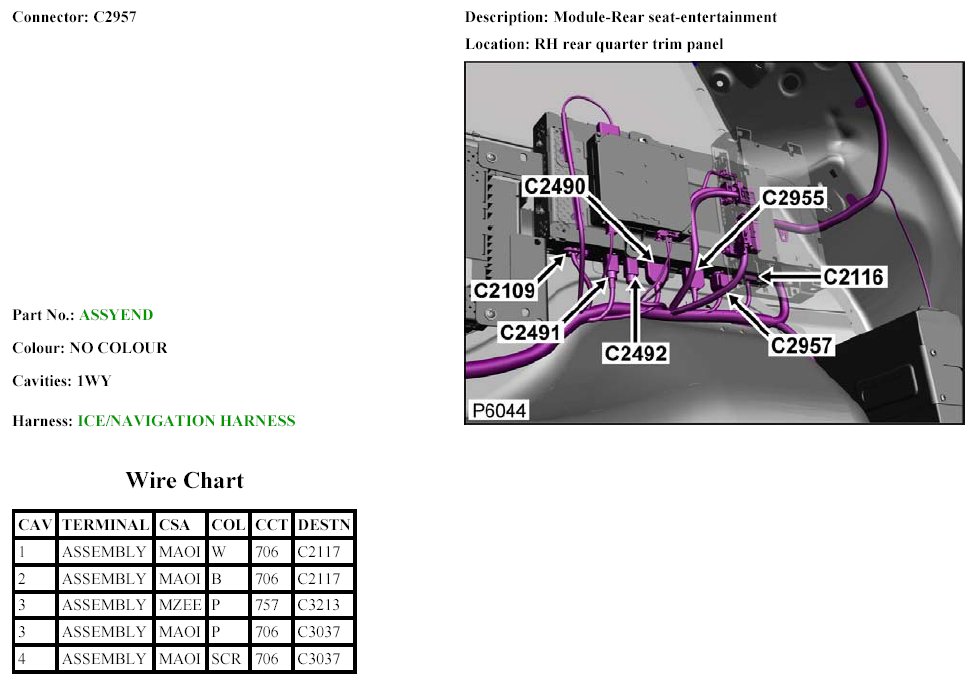

C2957:
